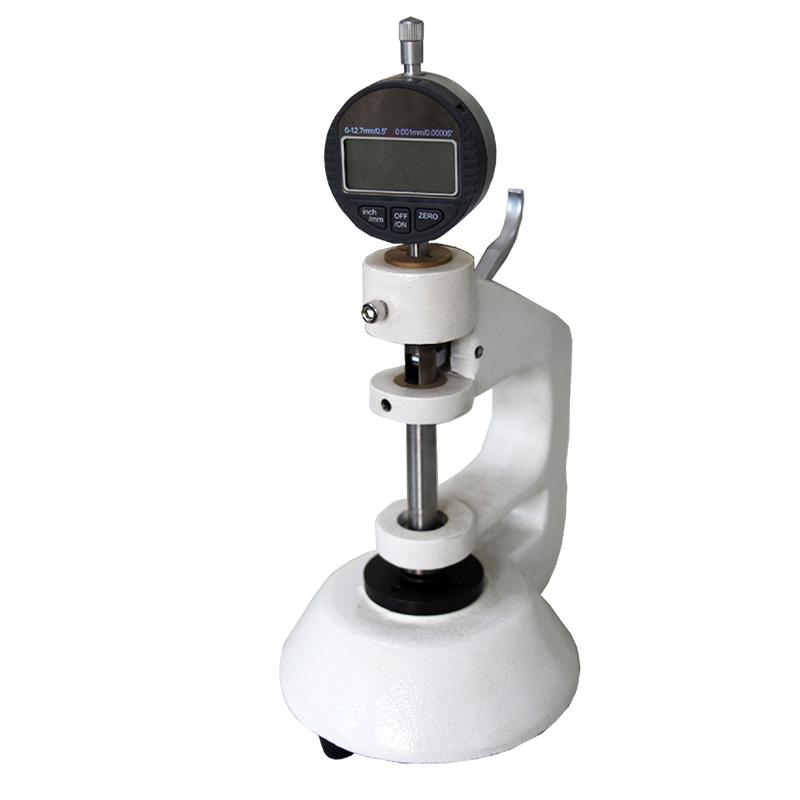

CHENCHI HD-20 Cardboard thickness Tester, corrugated Cardboard thickness Tester integrated casting process

Name: CHENCHI HD-20 Cardboard thickness Tester, corrugated Cardboard thickness Tester integrated casting process
Brand: labchen
SKU: NB042692
Price: 503.0 USD
Availability: InStock

$ 503.00Ex works

Measurement accuracy of 0.01mm, measurement pressure of 20 +/- 0.5kpa, can maintain good parallelism, suitable for film thickness test below 20mm.

Model

HD-20

Get Quote

Category : Paperboard Thickness Gauge

Brand : labchen

SKU : NB042692

Service :The delivery and service By NBCLab.Com

Overview

CHENCHI HD-20 Cardboard thickness tester is designed and manufactured according to the relevant provisions of the national standard QB/T 1055-2004 "Paper and Cardboard thickness tester". This instrument is mainly used for the measurement of film thickness of various types of Corrugated Boards below 20 mm.

Features

1. The whole machine adopts an integrated casting process, which is durable and not easy to deform 2. Can maintain the test parallelism of the instrument well, making the test results more accurate

Principle

Film thickness measurement of Cardboard is carried out on the contact area of 10 +/- 0.2cm ² by applying a measurement pressure of 20 +/- 0.5kpa, and the parallelism of the measurement surface is < 0.035mm to ensure that the Measurement accuracy reaches 0.01mm.

Applications

Corrugated Board Film thickness measurement

Standards

QB/T1055、GB/T6547

Specifications

Measurement range: 0~ 20mm Measurement accuracy: 0.01mm Measurement pressure: 20 +/- 0.5kpa Contact area: 10 +/- 0.2cm ² Measurement plane parallelism: < 0.035mm Dimensions: 185 × 220 × 395mm Mass: 10kg

Measurement Range
0-20mm
Measurement accuracy
0.01mm
Pressure measurement
20±0.5kpa
Measurement area
10±0.2cm²
Parallelism between measurement planes
＜0.035mm
Dimension
185*220*395mm
mass
10kg
According to the standard
QB/T1055、GB/T6547

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
