Overview

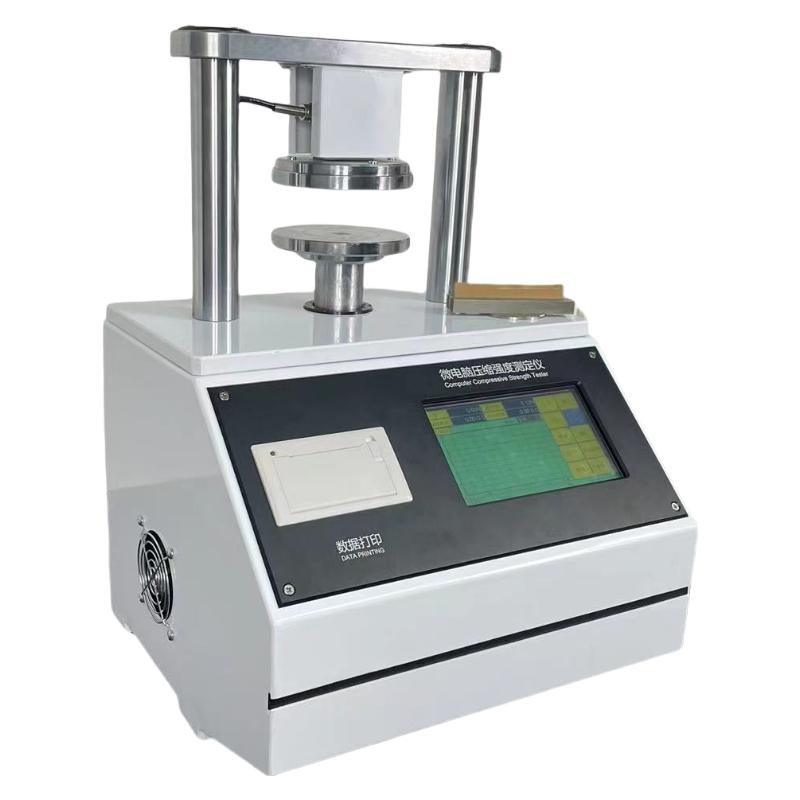

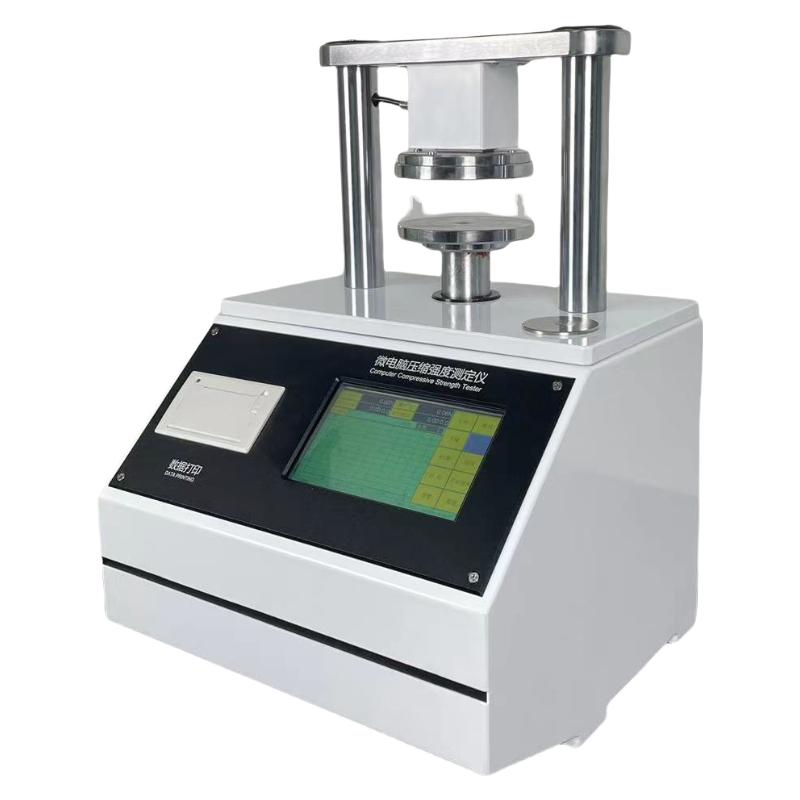

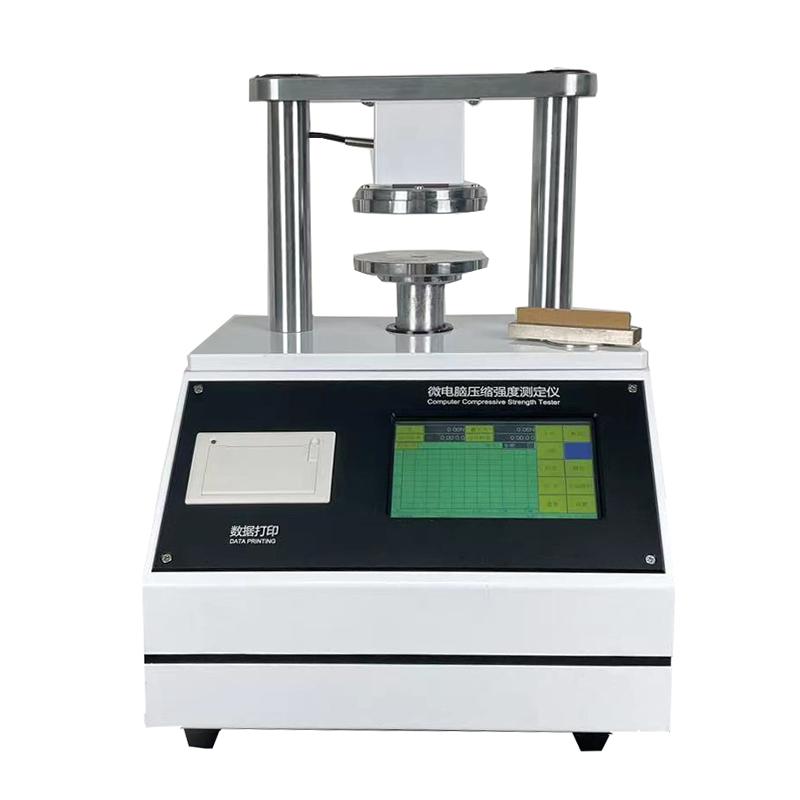

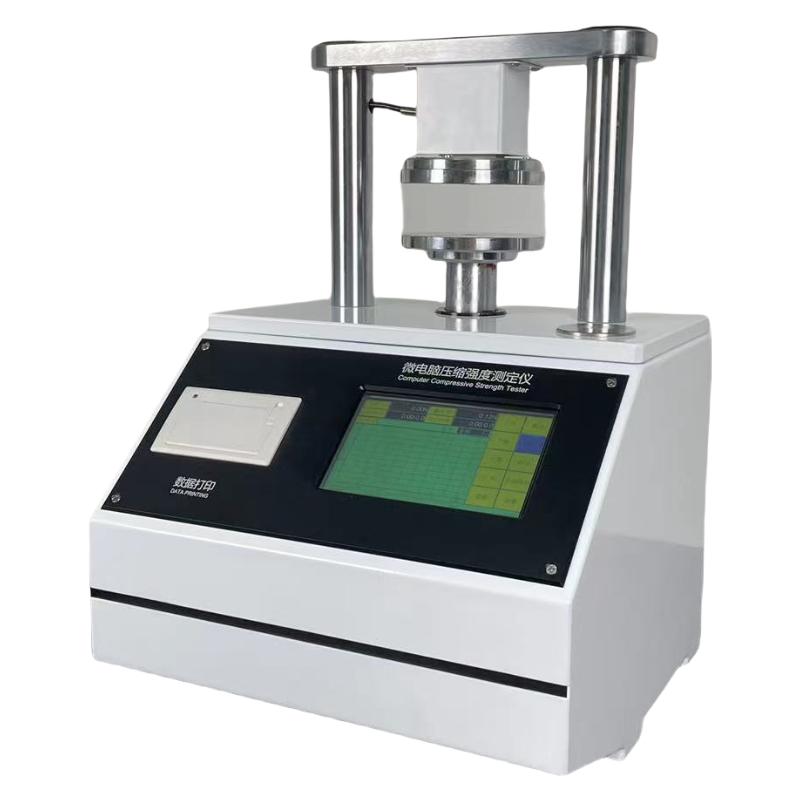

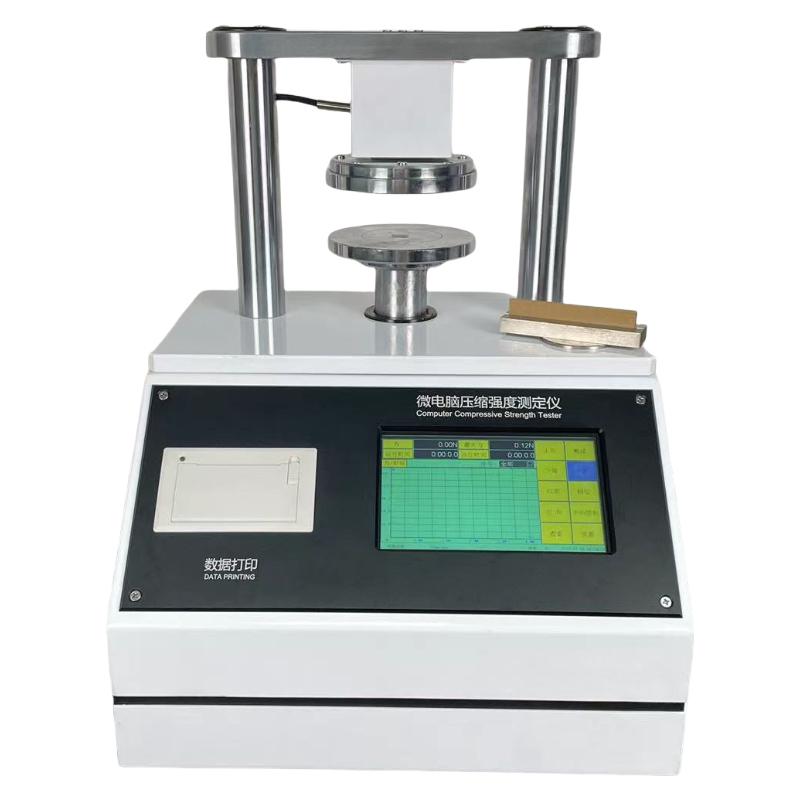

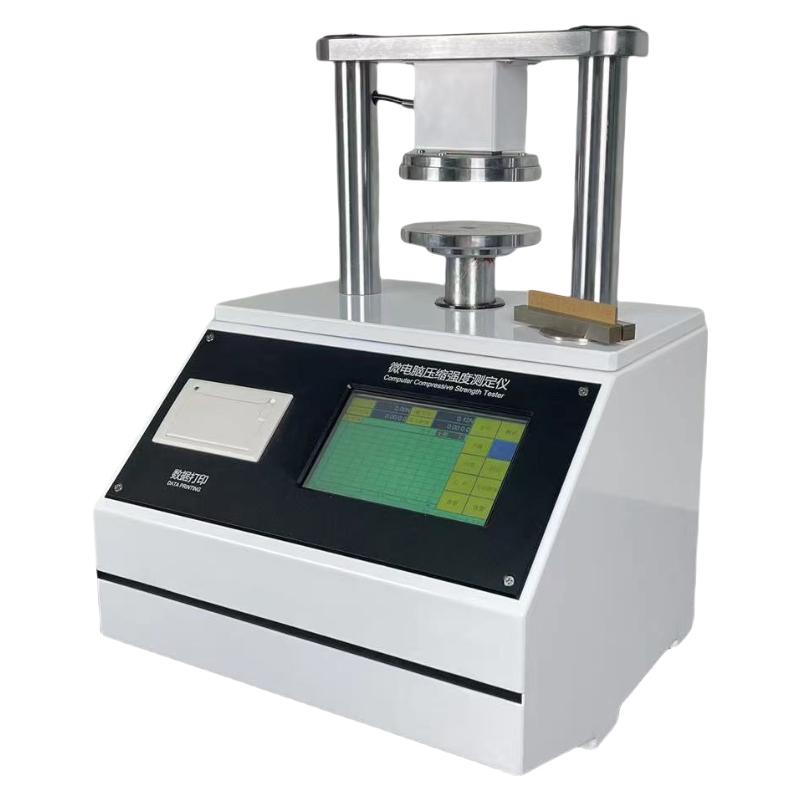

Yunda YD-BYJ edge compression strength tester is a fully automatic compression strength tester, which is mainly used to detect paper ring compression strength, Cardboard edge compression strength, Corrugated Board adhesive strength, Corrugated Board flat compression strength, etc. Paper mills are often used to detect Film thickness 0.15~ 1.00mm paper ring compression strength, Cardboard, carton factories and users are often used to detect Corrugated Board edge compression strength, flat compression strength, adhesive strength and paper core flat compression strength with a diameter of less than 60mm. The instrument is a professional auxiliary test tool for paper companies, Cardboard manufacturers, carton manufacturers, carton users and mass supervision and inspection departments.
Features
1. All stainless steel design, the fixture placement point is clean and not messy
2. With parameter setting authority management function
3. A La Carte model interface
4. Menu prompts operation steps
5. High contrast ratio large screen 7 inches with Linear dispersion display operation results
6. Automatic reset settings
7. Set function keys with test items
8. External network cable interface, can be connected to computer operation, equipped with professional computer software, supports computer operation of instruments and storage of test results, and can print A4 paper test reports through computer connection to color printer
9. The instrument itself can store 50 sets of test data and record them in the test results, which can be printed through a micro-printer
10. With statistical functions: arithmetic average, MIN Minimum, standard deviation, automatic conversion of edge compression strength, ring compression strength, adhesive strength, compressive strength, flat compression strength in different test modes
Principle
The instrument applies compressive force to the sample through the upper and lower pressure plates. Measurement range is 0-3000N, test speed is 12mm/min, return speed is 12mm/min, test height interval is 83mm, and the accuracy is +/- 1% of the reading. The instrument automatically records the test data and automatically converts the relevant strength indicators according to different test modes.
Applications
Cardboard production enterprises, cardboard production enterprises, carton use enterprises, mass supervision and inspection departments
Standards
GB/T 2679.8 "Paper and Cardboard Measurement of Ring Compression Strength", GB/T 6546 "Determination of Corrugated Board Edge Compression Strength", GB/T 6548 "Determination of Corrugated Board Adhesive Strength", GB/T 2679.6 "Determination of Corrugated Base Paper Flat Compression Strength"
Steps
1. Select test items through the A La Carte model interface
2. Follow the menu prompts
3. Set test parameters
4. Place the sample between the upper and lower pressure plates
5. Start the test, the instrument runs automatically and displays the results
6. View or print test results
Notice
• Ensure that the sample size meets the test requirements
• Check whether the components of the instrument are normal before operation
• Avoid overloading during testing
Periodically calibrate instruments to ensure accuracy
• Be careful not to exceed the 50-set limit when storing data
