Overview

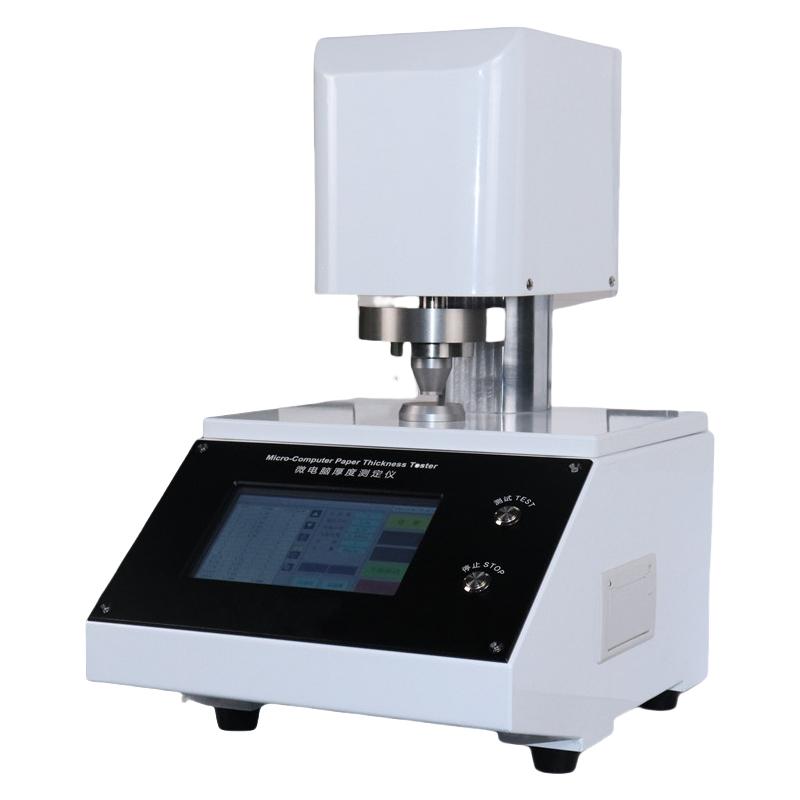

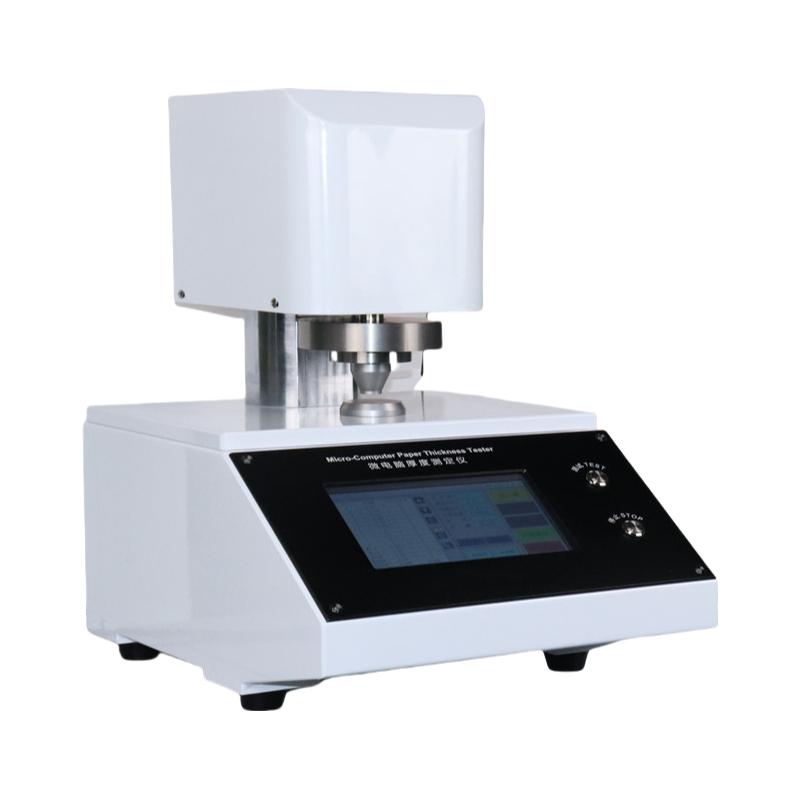

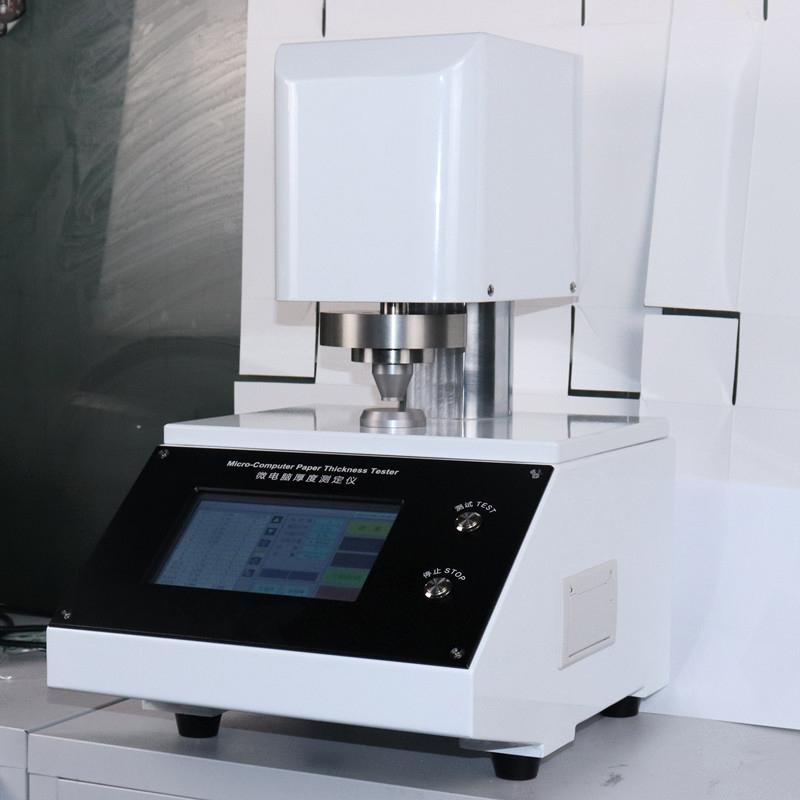

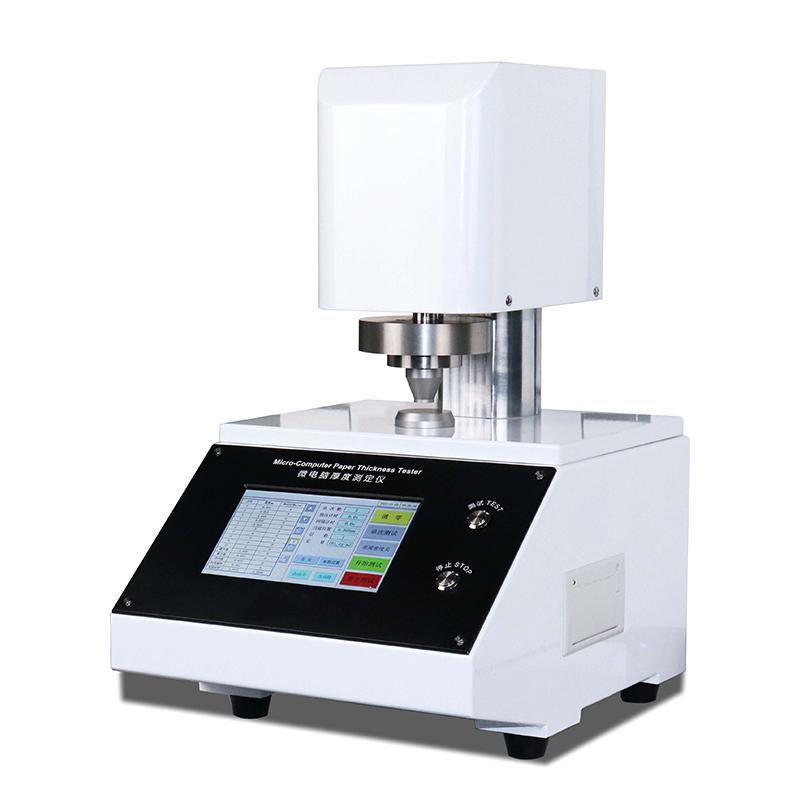

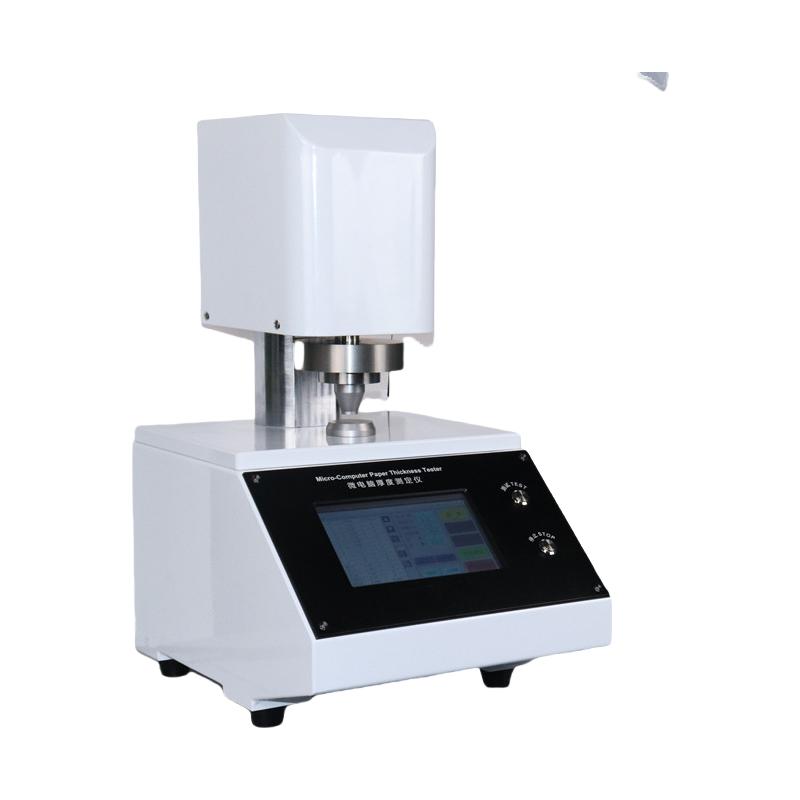

Automatic Film thickness tester (7 inch screen) is a new type of mechatronics testing instrument developed by Yunda brand in accordance with national standards. It adopts modern mechanical design concepts and ergonomic principles. It has the characteristics of novel design, convenient use, excellent performance and beautiful appearance. The High Accuracy Computer Film thickness tester adopts High Accuracy Displacement Sensor, which has the functions of testing, conversion, display, memory, printing, data processing, and is suitable for papermaking, Encasement, film scientific research and product mass supervision and inspection.
Features
1. High Accuracy Displacement Sensor for Measurement accuracy
2. With multi-function of testing, conversion, display, memory, printing and data processing
3.7-Inch touch screen man-machine interface is easy to operate
4. Measurement range ≤ 5mm, resolution 0.001mm
5. Adjustable contact pressure and descent speed
6. Modular integrated thermal printer
7. Optional connection to computer software operation
Principle
The instrument detects the film thickness of the sample through the High Accuracy Displacement Sensor, and adopts the mechatronics design to realize the automatic measurement. The measurement head touches the sample surface under the set pressure, and the Sensor precisely collects the Film thickness data, which is converted by the internal processing system and displayed on the 7-inch touch screen. Data can be stored and printed out.
Applications
Papermaking, Encasement, Film research, Product mass supervision and inspection
Standards
QB/T 1035、QB/T 451.3、QB/T 1055、ISO 534、ISO 438
Steps
1. Connect the AC220V power supply
2. Set measurement parameters through 7-inch touch screen
3. Place the sample on the measurement platform
4. Start the automatic measurement program
5. View the screen display measurement results
6. Select Data Storage or Printout
7. Turn off the power after completing the test
Notice
• Power supply voltage must be kept within the range of AC220V +/- 10%
• Make sure the sample is placed flat before measurement
• Regularly check the parallelism of the measurement surface ≤ 0.002mm
• Select the correct contact area and pressure according to the sample type
• The instrument weight is about 25kg, pay attention to safety when handling
• Keep the instrument clean to avoid dust affecting Measurement accuracy
