Overview

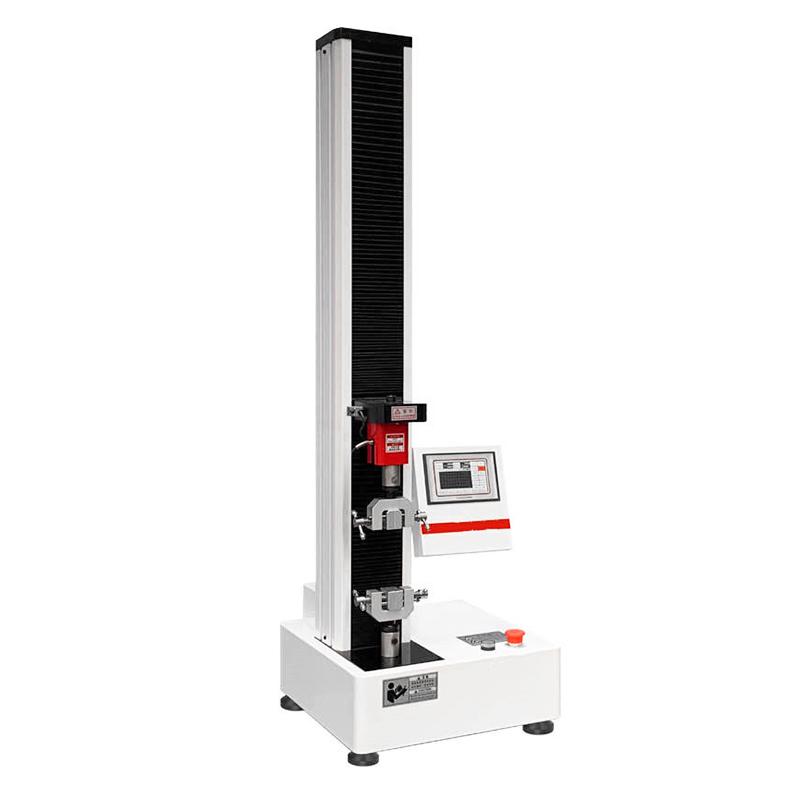

Taichang Instrument TC-DLJ01 Universal Testing Machine is a professional testing equipment using China Sensor, suitable for tensile and tensile strength testing of paper, film, rubber, plastic, woven bag, roll film and other materials, and can perform 180 degree disbonding, 90 degree disbonding, T-shaped disbonding, Adhesive Peel Strength test and heat seal strength test.
Features
1. High Accuracy Digital Speed Control System and Precision Gear reducer are used to drive the precision lead screw pair to achieve a wide range of speed adjustment, low noise and smooth operation.
2. Touch key operation with LCD display, real-time display test method selection, parameter setting, operation results and Linear dispersion interface.
3. Equipped with digital display of test force, continuously adjustable speed, automatic shutdown of sample breaking and peak holding function.
4. Support beam speed adjustment, integrated over-current, over-voltage, overload and other protection devices.
Principle
The Universal Testing Machine controls the precision gear reducer through the High Accuracy all-digital speed control system, drives the precision screw pair to drive the beam movement, applies tensile force to the sample, monitors the force value and displacement in real time, and realizes the performance test of material tensile and disbonding.
Applications
Tensile, tensile strength, 180 degree disbonding, 90 degree disbonding, T-type disbonding, Adhesive Peeling Strength, Heat Sealing Strength Test of Paper, Film, Rubber, Plastic, Woven Bag, Roll Film and Other Materials
Standards
GB 8808、GB 13022、GB 1040、GB 4850、GB 7753、GB 7754、GB 453、GB/T 17200、GB/T 16578、GB/T 7122、GB/T 2790、GB/T 2791、GB/T 2792、ASTM E4、ASTM D828、ASTM D882、ASTM D1938、ASTM D3330、ASTM F88、ASTM F904、ISO 37、JIS P8113、QB/T 2358、QB/T 1130
