Overview

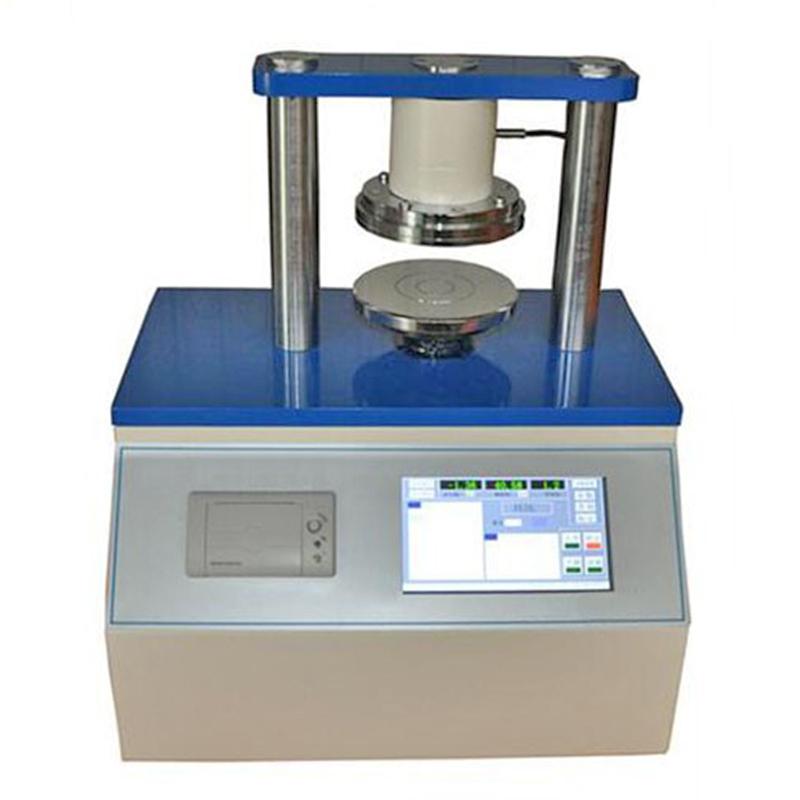

Taichang Instrument TC-YSY5000 electronic compression tester is the basic instrument for Cardboard compressive strength performance testing. The test items include base paper ring compressive strength test (RCT), Corrugated Board edge compressive strength test (ECT), Corrugated Board adhesive strength test (PAT), Corrugated Board flat compressive strength test (FCT), base paper laboratory corrugated compressive strength (CCT) and flat compressive strength (CMT). High Accuracy Sensor and high-speed processing chip design are used to ensure sampling Precision, and various performance parameters and technical indicators comply with relevant national standards.
Features
1. LCD display, PVC control panel, user-friendly design
2. Test process automatic measurement, intelligent judgment of experimental results, automatic return
3. Microcomputer processing system, enter gram weight and size, and display strength results after testing
4. The microcomputer collects data and calculates the pressure value, and the microprinter prints the test results
5. Meet four test modes, edge pressure, flat pressure, ring pressure, gluing four strength tests
6. Adopting synchronous motor drive, the transmission is smooth and accurate, making the output pressure more accurate
Principle
The electronic compression tester applies pressure to the sample by driving the pressure plate through the synchronous motor drive, uses the High Accuracy Sensor to collect the pressure data in real time, and the data is calculated and analyzed by the microcomputer processing system.
Applications
Cardboard compressive strength test, base paper ring compressive strength test, Corrugated Board edge compression strength test, Corrugated Board adhesive strength test, Corrugated Board flat compressive strength test, base paper laboratory compressive strength test after corrugation
Standards
Relevant national standards
Steps
1. Enter gram weight and size parameters
2. Select the test mode (side pressing, flat pressing, ring pressing, or gluing)
3. Start the test, the instrument automatic measurement
4. The microcomputer system collects data and calculates it
5. Show intensity results
6. Microprinter printing test results
Notice
• power requirements: AC220V 3A 50Hz
• Plate test speed: 12.5 +/- 2.5mm/min
• Force value range: 60N~ 3000N
• Plate diameter: 120mm (can be customized according to customer requirements)
• Maximum distance between upper and lower pressure plates: 80mm (can be customized according to customer requirements)
