Overview

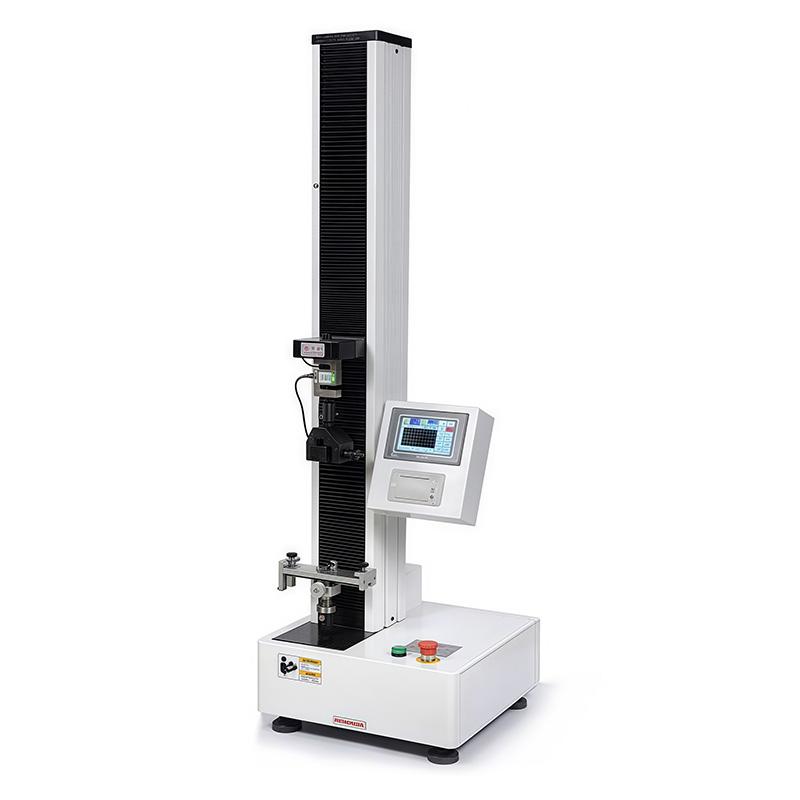

CHENCHI WDB-01 (400mm) Peel strength tester is a test equipment specially designed for universities and research institutes. The machine has beautiful appearance, easy operation, stable and reliable performance, and can realize tensile strength, 180 ° Peel Strength, sealing strength and other tests. It has the characteristics of no pollution, low noise, high efficiency and wide speed range. It is widely used in building materials, aerospace, machinery manufacturing, Wire and cable, rubber and plastic, Spinning & weaving, home appliances and other industries for material inspection and analysis.
Features
1. Adopt five-inch color LCD touch screen operation mode
2. Precision of test force better than indication +/- 1%
3. Displacement measurement resolution up to 0.01mm
4. Test speed range 1~ 500mm/min stepless speed regulation
5. Equipped with multiple safety protection functions such as overload protection, leakage protection, and limit protection
6. Adopt stepper motor and synchronous belt drive for smooth operation
7. Effective stroke 400mm, can be customized according to requirements
Principle
Through the CHENCHI controller, the system controls the servo motor to rotate through the speed control system, and after deceleration by the deceleration system, the tensile mechanical properties of the sample are completed by the rise and fall of the precision screw pair with the beam.
Applications
Building materials, Aerospace, Machine building, Wires and cables, Rubber plastics, Spinning & weaving, Home appliances
Standards
GB 8808、GB/T 1040.1、GB/T 1040.2、GB/T 1040.3、GB/T 1040.4、GB/T 1040.5、GB/T 4850、GB/T 12914、GB/T 17200、GB/T 16578.1、GB/T 7122、GB/T 2790、GB/T 2791、GB/T 2792、GB/T 17590、ASTM E4、ASTM D882、ASTM D1938、ASTM D3330、ASTM F88、ASTM F904、JIS P8113、QB/T 2358、QB/T 1130
Steps
1. Connect the 220V 50Hz power supply
2. Set test parameters through a five-inch color LCD touch screen
3. Install the specimen into the stretch space
4. Select the test speed range of 1~ 500mm/min
5. Start the test, and the system automatically controls the beam movement
6. Observe the test force, displacement, peak value and other data displayed on the LCD screen
7. After the test is completed, the system automatically stops
Notice
• Make sure the equipment is well grounded before use to prevent leakage
• Must not exceed the maximum test force range of 100N
• Pay attention to the limit protection function when the equipment is running
• Regularly check the running status of the synchronous belt drive system
• Keep the environment around the equipment clean to avoid contamination
• Non-professionals should not disassemble or repair the equipment
