Overview

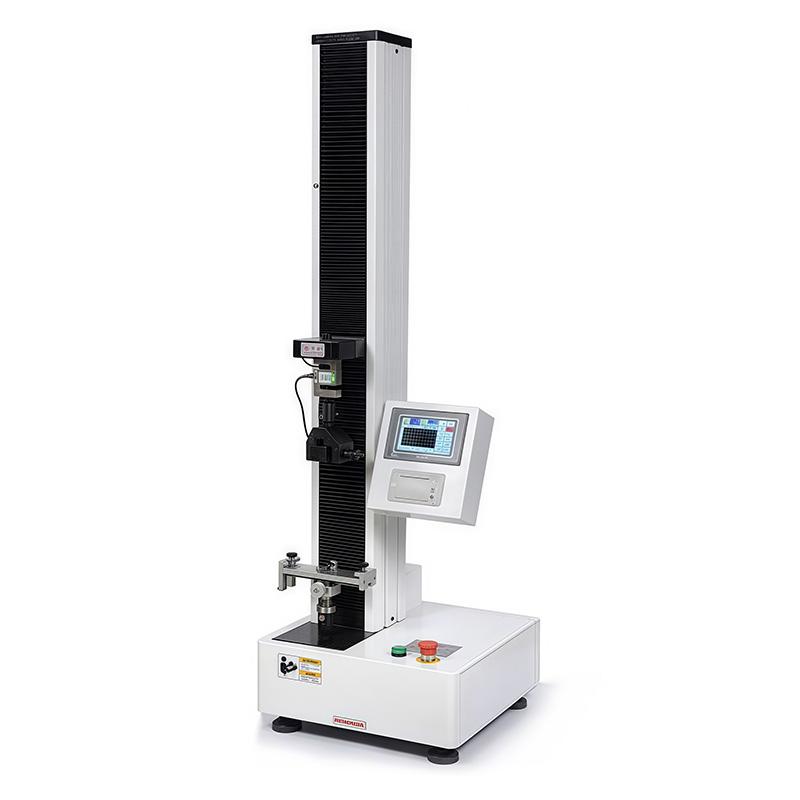

CHENCHI WDB-02 (400mm) Peel strength tester is a test equipment specially designed for universities and research institutes. It has beautiful appearance, convenient operation and stable and reliable performance. The testing machine can realize tensile strength, 180 ° Peel Strength, sealing strength and other test methods, and has the characteristics of no pollution, low noise, high efficiency and wide speed regulation range.
Features
1. Adopt five-inch color LCD touch screen operation, friendly interface
Measurement range 0-200N, high accuracy, Precision test force is better than the indication of +/- 1%
3. Stepless speed regulation system, speed range 1~ 500mm/min, adapt to different test requirements
4. The effective stroke and stretching space are 400mm, which can be customized
5. With multiple safety functions such as overload protection, leakage protection, and limit protection
6. Stepper motor drive, synchronous belt drive, smooth operation
7. Dimensions compact, weight about 80Kg, easy to install and use
Principle
Through the CHENCHI controller, the system controls the servo motor to rotate through the speed control system, and after deceleration by the deceleration system, the tensile mechanical properties of the sample are completed by the rise and fall of the precision screw pair with the beam.
Applications
Building materials, Aerospace, Machine building, Wires and cables, Rubber plastics, Spinning & weaving, Home appliances
Standards
GB 8808、GB/T 1040.1、GB/T 1040.2、GB/T 1040.3、GB/T 1040.4、GB/T 1040.5、GB/T 4850、GB/T 12914、GB/T 17200、GB/T 16578.1、GB/T 7122、GB/T 2790、GB/T 2791、GB/T 2792、GB/T 17590、ASTM E4、ASTM D882、ASTM D1938、ASTM D3330、ASTM F88、ASTM F904、JIS P8113、QB/T 2358、QB/T 1130
Steps
1. Turn on the 220V 50Hz power supply and turn on the device
2. Set test parameters through a five-inch color LCD touch screen
3. Install the specimen and adjust the beam position
4. Select the test speed (1~ 500mm/min range)
5. Start the test, and the system automatically controls the beam movement
6. Observe the test force, displacement, peak value and other data displayed on the LCD screen
7. After the test is completed, the device automatically stops and saves the data
Notice
• Ensure that the power supply is 220V 50Hz to avoid voltage instability
• Check whether the overload protection, leakage protection and limit protection functions are normal before operation
• The specimen should be firmly installed to prevent peeling during the test
• Do not exceed the maximum test force range of 200N
• Regularly check the abrasion of timing belt and lead screw pair
• Keep the surrounding debris free when the equipment is running to ensure a safe space
