Overview

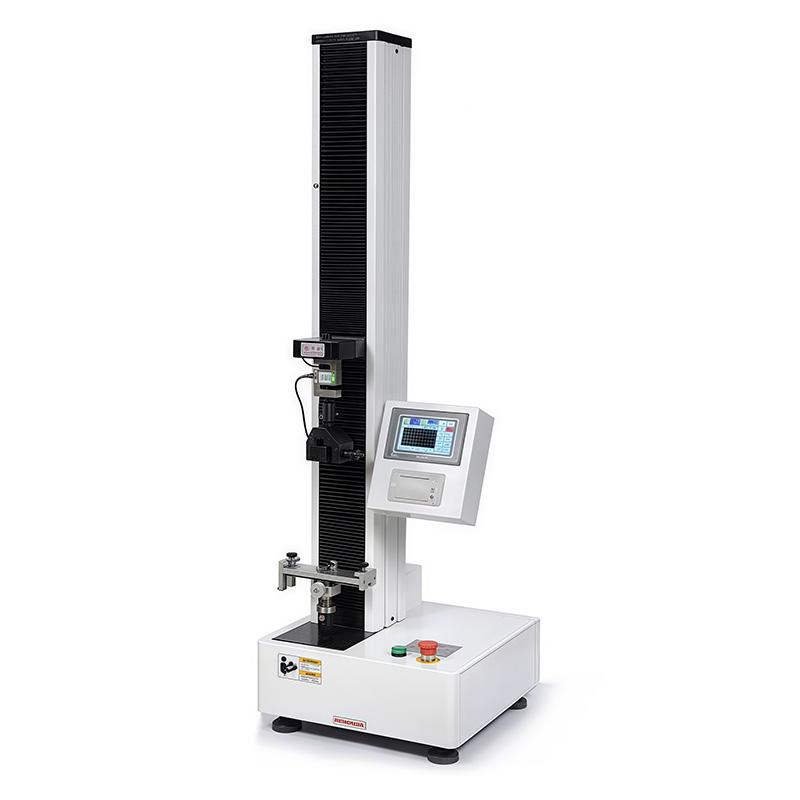

CHENCHI WDB-020 (400mm) Peel strength tester is a High Accuracy testing equipment specially designed for universities and research institutes. The machine is beautiful in appearance, easy to operate, stable and reliable in performance, and can realize tensile strength, 180 ° Peel Strength, sealing strength and other tests. It adopts servo motor drive and precision screw drive, and has the characteristics of no pollution, low noise, high efficiency and wide speed range.
Features
1. Five-inch color LCD touch screen operation interface
2. Adopt stepper motor and synchronous belt drive system
3. Test speed range 1~ 500mm/min wide speed regulation
4. Measurement range 2000N, accuracy +/- 1%
5. With multiple safety protection functions such as overload protection, leakage protection, and limit protection
6. Effective stroke 400mm, can be customized according to requirements
7. Displacement measurement resolution up to 0.01mm, test force minimum resolution 0.01N
Principle
The system controls the rotation of the servo motor through the CHENCHI controller. After the speed control system and the deceleration system decelerate, the beam is driven up and down through the precision screw pair to complete the tensile mechanical properties test of the sample. The process realizes no pollution, low noise and high efficiency test operation.
Applications
Building materials, Aerospace, Machine building, Wires and cables, Rubber plastics, Spinning & weaving, Home appliances
Standards
GB 8808、GB/T 1040.1、GB/T 1040.2、GB/T 1040.3、GB/T 1040.4、GB/T 1040.5、GB/T 4850、GB/T 12914、GB/T 17200、GB/T 16578.1、GB/T 7122、GB/T 2790、GB/T 2791、GB/T 2792、GB/T 17590、ASTM E4、ASTM D882、ASTM D1938、ASTM D3330、ASTM F88、ASTM F904、JIS P8113、QB/T 2358、QB/T 1130
Steps
1. Connect a 220V 50Hz power supply
2. Set test parameters through a five-inch color LCD touch screen
3. Install the specimen to the test location
4. Select the desired test mode (tensile strength, 180 ° Peel Strength or seal strength)
5. Start the device for testing
6. Monitor the real-time display of test force, displacement, peak value and other data
7. Save the data and turn off the device after the test is completed
Notice
• Power supply voltage 220V 50Hz before use
• Pay attention to the equipment limit protection function during operation
• Regularly check the overload protection and leakage protection functions of the equipment
Equipment weight of about 80Kg, need to pay attention to safety when handling
• Keep the equipment operating environment clean and avoid pollution
• Non-professionals should not disassemble or repair the equipment without authorization
