Overview

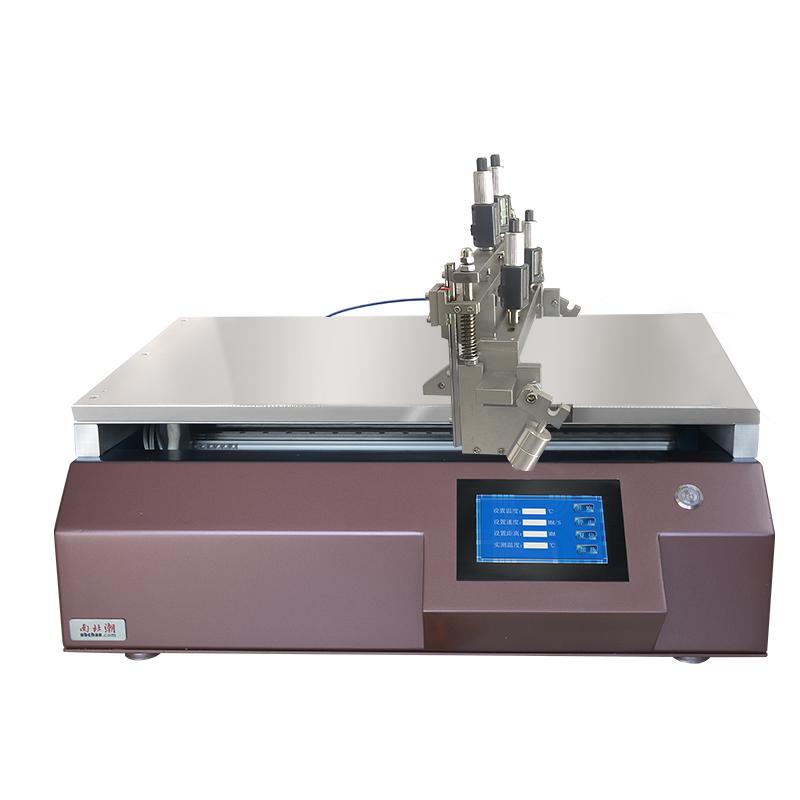

The automatic feeding Film Applicator is composed of a Spreader platform, an automatic feeding system and a control system. It adopts the slot-die extrusion feeding method for Spreader, including adjustable Film thickness scraper and wire rod and other Spreader processes. Optional 4-sided Applicator. Mainly used in laboratory research and development, it can work in the glove box, and also supports production Film Applicator customization. The equipment is suitable for lithium batteries, glue, silicone oil, UV, inks, polymer materials, photoresist, cataplasm, hot-melt adhesive, gel, plaster crystals, Pottery and porcelain, slurry and other industry samples to do experimental film, Spreader can be carried out on substrates such as film, paper, copper foil, aluminum foil, non-woven fabric, vinyl sheet, PVC, PET, fabric, aluminum alloy metal, plastic film, metal film, etc.
Features
1. Spreader by slot-die extrusion feeding method, including adjustable Film thickness scraper and wire rod Spreader process
2. Optional 4-sided Applicator, Support Production Film Applicator Customization
3. Can work in a glove box, suitable for laboratory research and development
4. Spreader speed range, support 5~ 180mm/s (< 5mm/s can be customized)
5. Provide a variety of heating and insulation components, including Spreader countertop heating, barrel heating and cutter head heating
6. Support a variety of Spreader methods, including wire rods and scrapers
7. Vacuum adsorption system to ensure the stability of the substrate, the vacuum pore diameter of φ 1.2mm, hole spacing 20 * 20mm
8. Speed control with infinitely variable speed, flexible operation
Principle
The automatic Film Applicator uses a slot-die extrusion feeding system to uniformly Spreader the material on the substrate, and uses an adjustable Film thickness scraper or wire rod to control the Spreader Film thickness. The equipment is equipped with an automatic feeding system, which precisely controls the feeding speed through a stainless steel injection syringe. The Spreader platform uses vacuum adsorption to fix the substrate to ensure the stability of the Spreader process. The heating system can heat the Spreader countertop, barrel and cutter head to maintain the appropriate temperature of the material and achieve uniform Spreader.
Applications
Lithium battery, glue, silicone oil, UV, inks, polymer materials, photoresist, cataplasm, hot-melt adhesive, gel, plaster crystal, Pottery and porcelain, slurry
Steps
1. Prepare the substrate and place it on the Spreader platform, start the vacuum adsorption system to fix the substrate
2. Select the Spreader method (wire rod or scraper) according to your needs and install the corresponding accessories
3. Set Spreader parameters including Spreader rate, Film thickness and heating temperature
4. Load the material into the feeding system and adjust the feeding speed
5. Start the Device for Auto Spreader
6. Turn off the device after the Spreader is completed, and clean the Spreader platform and accessories.
Notice
• Make sure the power supply of the device is connected correctly before operation, use 220V 50Hz power supply
• Pay attention to heating temperature control during the Spreader process to avoid overheating damage to materials or equipment
• Regularly check the vacuum adsorption system to ensure that the holes are not blocked
• Clean the Spreader platform and accessories in time after use to prevent material residue
• Select the appropriate Spreader method and parameters according to the material characteristics
• Pay attention to the weight when moving the equipment, Net weight 65KG needs to be handled carefully
