TRUIT TR 1005/2 DIN Cup viscosity Cup aluminum alloy Cup body stainless steel nozzle 100ml volume

Name: TRUIT TR 1005/2 DIN Cup viscosity Cup aluminum alloy Cup body stainless steel nozzle 100ml volume
Brand: TRUIT
SKU: NB043168
Price: 128.0 USD
Availability: InStock

$ 128.00Ex works

Adopt aluminum alloy Cup body and stainless steel nozzle structure, the outflow aperture is 2mm, the viscosity measurement range is 15~ 30cSt, which is suitable for low viscosity thin liquid test, and the outflow time is controlled at 25~ 150 seconds.

Model

Get Quote

Category : Viscosity Cup

Brand : TRUIT

SKU : NB043168

Service :The delivery and service By NBCLab.Com

Overview

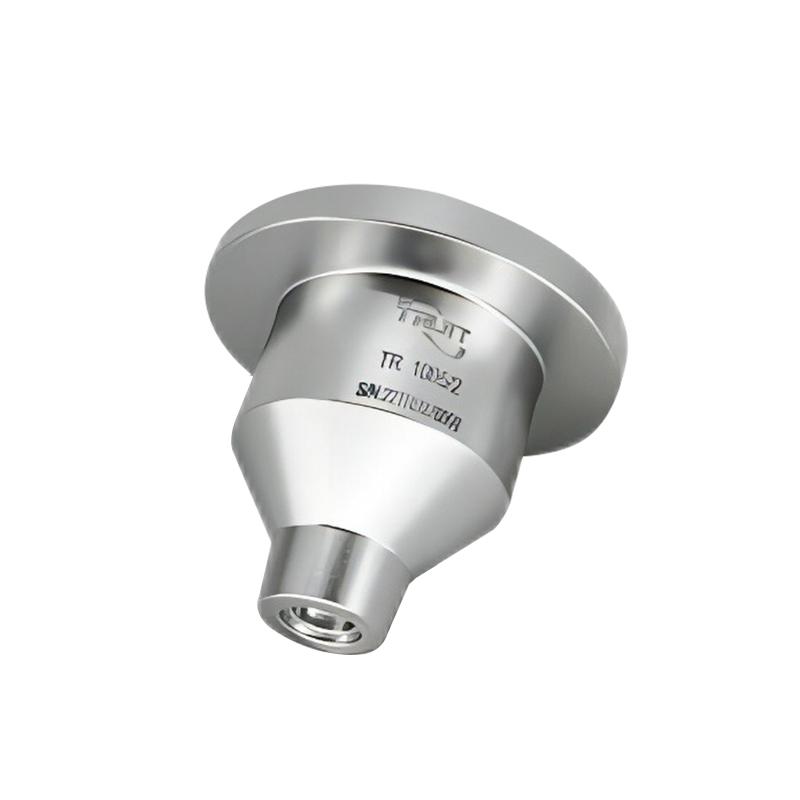

The TRUIT TR 1005/2 DIN cup is designed according to DIN 53211 for the viscosity measurement of inks, coatings, paints and other Newtonian or near-Newtonian liquids. The material Tack is evaluated by measuring the time required for the 100ml volume of the sample in the cup to flow out of the bottom hole. It is suitable for testing thin liquids with low viscosity. The product is made of high-quality aluminum alloy cup body and stainless steel nozzle. It is a desktop DIN cup, mainly used for viscosity testing of laboratory samples.

Features

1. The cup body is made of high-quality aluminum alloy and has been treated with anodic oxidation 2. The nozzle is made of high-quality stainless steel 3. The volume is 100ml 4. Outflow aperture is 2mm 5. Outflow time range is 25~ 150s 6.The viscosity measurement range is 15~ 30cSt

Principle

The DIN cup evaluates the Tack of the material by measuring the time required for the 100ml volume of the sample in the cup to flow out of the bottom hole, which is suitable for testing the viscosity of Newton-type or near-Newton-type liquids.

Applications

Inks, Coatings, paints viscosity measurement

Standards

DIN 53211

Steps

1. Prepare the liquid sample to be tested 2. Pour the sample into the DIN cup to 100ml scale 3. Record the time required for the sample to completely flow out of the bottom hole 4. Evaluate material viscosity according to outflow time

Notice

• Only for Newtonian or near-Newtonian liquids • Suitable for testing thin liquids with low viscosity • Outflow time should be controlled within the range of 25~ 150s • Make sure the cup is clean and drying before use

flow hole diameter
Φ2.0mm
outflow time
25 to 150 seconds
Viscosity Range
15~30cst
capacity
100ml
Cup material
High quality aluminum alloy (anodic oxidation)
Nozzle material
stainless steel

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
