Overview

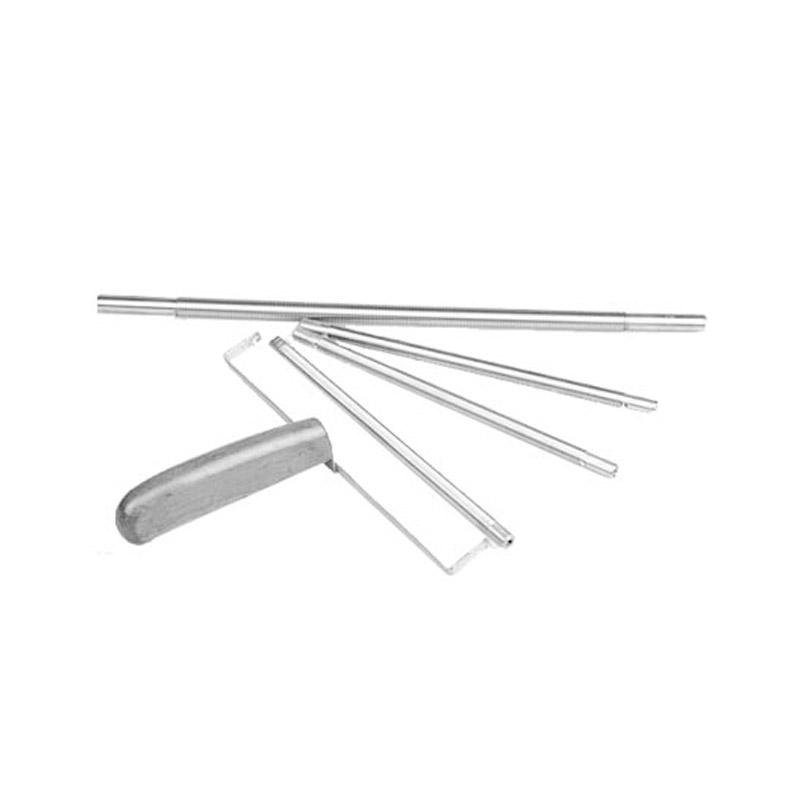

PUSHEN XB-II 15um Mayer Rods is a laboratory stainless steel bar, which can be prepared with a wet film thickness of 15 microns, a total length of 400mm, and an effective application width of 300mm. It is widely used in plastics, inks and other industries, and the stainless steel material has a long service life.
Features
1. Ideal for Spreader thin coatings, such as can Coatings and paper Coatings
2. The wet film thickness is engraved on the end of the bar for easy identification
3. Best for soft materials such as paper, Cardboard, foil, leather, test cardboard, Spinning & weaving products
4. Rod and winding are made of high-grade wear-resistant stainless steel
Principle
The lab bar uses stainless steel wires to wrap around its surface to form grooves, and prepares films of different thicknesses through the gaps between the wires. Wire of different diameters is wrapped around a certain length of stainless steel bars to prepares wet-films of different wet film thicknesses.
Applications
Plastics, inks, paints, varnishes, inks, glues
Steps
1. Choose the right bar model according to your needs
2. Use the formula: wet film thickness = Coating Weight g/per square meter (density × Solid content%) for selection calculation
3. Note that the actual wet film thickness is also affected by various factors such as product ductility, viscosity, coating rod type, etc
Notice
• The above wet film thickness calculation formula is for reference only
• The actual wet film thickness is affected by various factors such as product ductility, viscosity, coating rod type, etc
• Samples need to be uniform, comparable, and precise thickness control to ensure test Reliability
