Overview

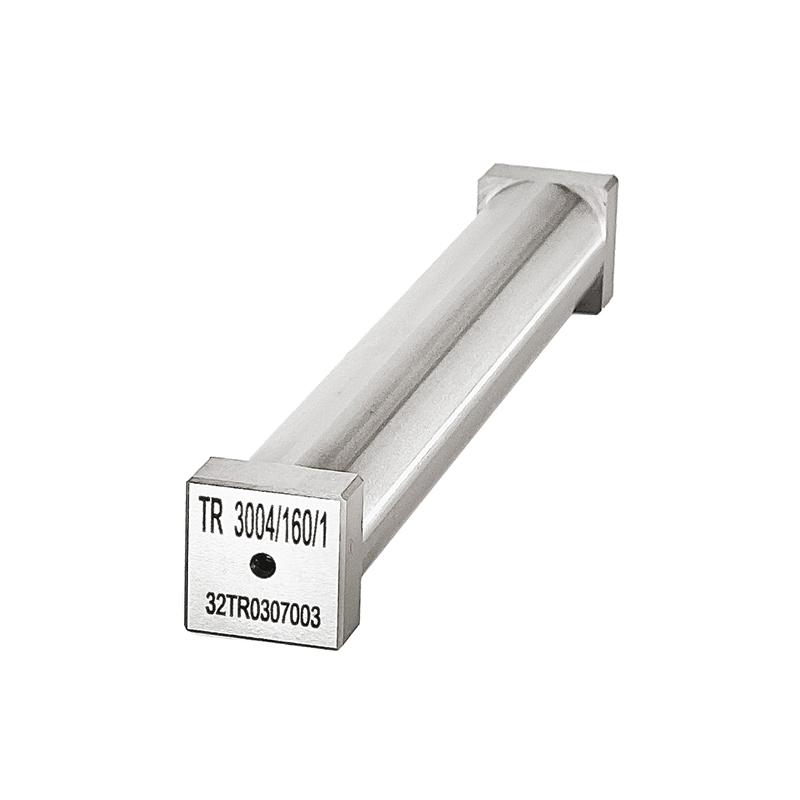

The TRUIT TR 3004/160/1 4-sided Applicator is a device for manual film proofing for experiments such as Coatings, inks, paints, etc., and can also be placed on automatic film machines. This model has four film Film thicknesses (5, 10, 15, 20 μm), an effective Spreader width of 160mm, and is made of high-quality wear-resistant and corrosion-resistant alloy steel. It can precisely control the wet-film or dry-film thickness to ensure coating conformity and Repeatability. It is suitable for mass tests such as hiding power, opacity, scrub resistance, sag resistance performance, etc.
Features
Four films Film thickness optional (5, 10, 15, 20 μm)
2. Spreader width 160mm
3. Made of high-quality wear-resistant and corrosion-resistant alloy steel
4. Suitable for Manual and Automatic Film Applicators
5. Precise control of wet-film or dry-film thickness
6. Ensure coating conformity and Repeatability
Principle
The 4-sided Film Applicator uses preset film film thickness notches to uniformly Spreader Coatings, inks or paints on the substrate to form a wet-film of the specified film thickness. Users can operate it manually or with an automatic Film Applicator, using alloy steel to ensure wear and corrosion resistance, for precise Film thickness control and Repeatability film.
Applications
Coatings, inks, paints
Steps
1. Select Manual or Automatic Film Applicator Mode
2. Place Applicator on Substrate
3. Evenly Push Applicator to Spreader
4. Adjust film Film thickness notch as needed
5. Clean equipment after film
Notice
• Make sure the surface of the substrate is clean and flat before use
• Maintain uniform pushing speed during operation
• Regularly clean Applicators to prevent clogging
• Avoid cleaning with corrosive chemicals
Store in a drying environment
