Overview

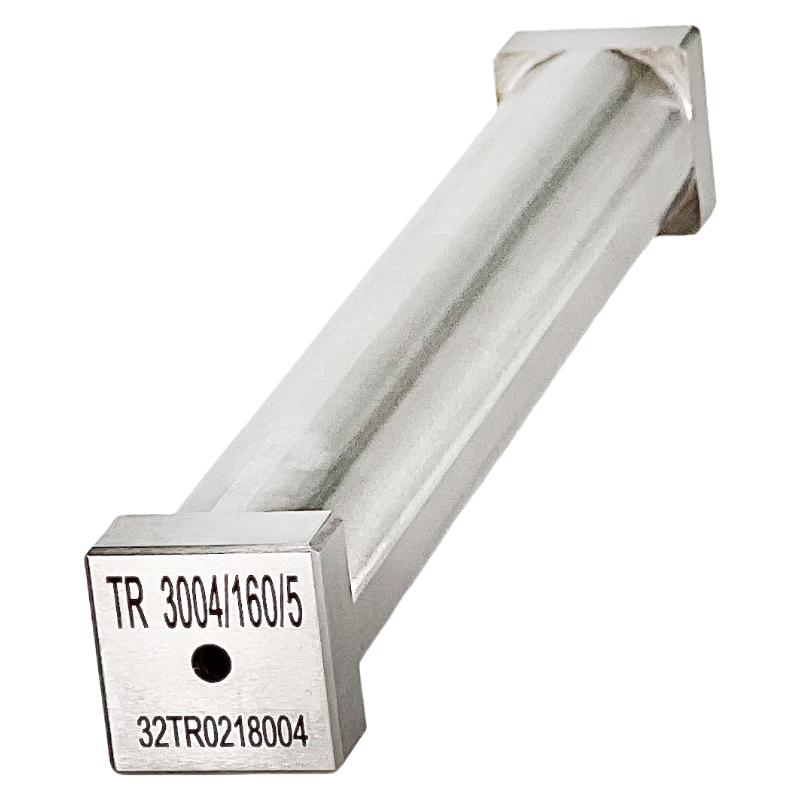

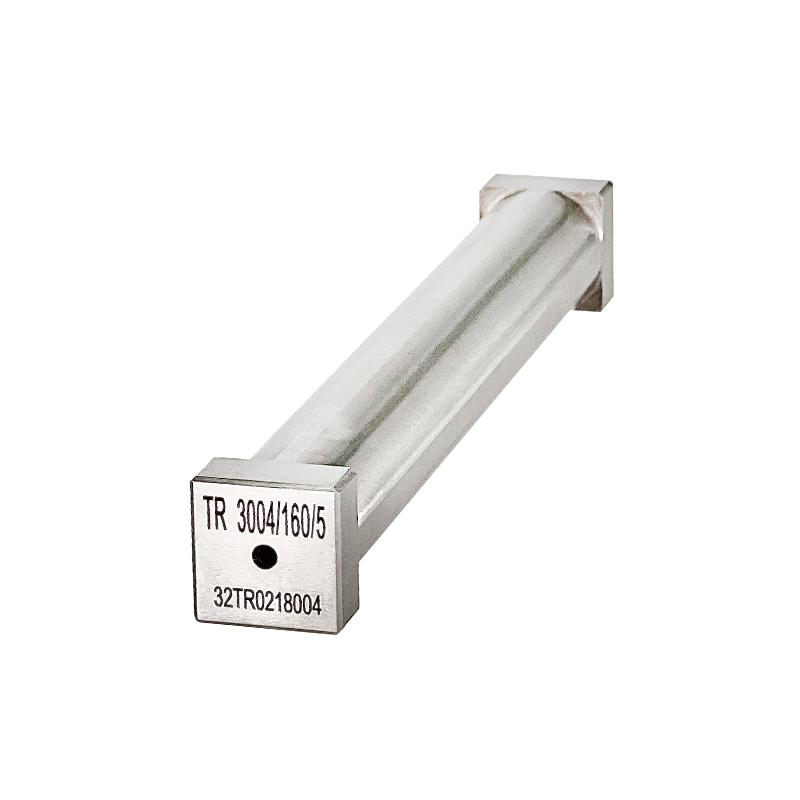

The TRUIT TR 3004/160/5 4-sided Applicator is a device for manual film proofing for experiments such as Coatings, inks, paints, etc., and can also be placed on an automatic film machine for Moulding. This model has four film Film thicknesses (30, 60, 90, 120 μm), an effective Spreader width of 160mm, and is made of high-quality wear-resistant and corrosion-resistant alloy steel. It can precisely control the wet-film or dry-film thickness to ensure coating conformity and Repeatability. It is suitable for mass tests such as hiding power, opacity, scrub resistance, sag resistance performance, etc.
Features
1. Made of high-quality wear-resistant and corrosion-resistant alloy steel, with strong durability
Four films Film thicknesses (30, 60, 90, 120 μm) to meet various experimental needs
3. Effective Spreader width 160mm, total length 190mm, reasonable design
4. Support Manual and Automatic Film Applicators, Flexible Operation
5. Precise control of wet-film or dry-film thickness to ensure coating conformity and Repeatability
Principle
The 4-sided Film Applicator uses its four film slots of different film thicknesses to uniformly Spreader Coatings, inks, or paints on the substrate to form a wet-film of the specified film thickness. Users can choose to operate it manually or place it on an automatic film machine, using alloy steel to ensure the stability of the Spreader process, thus achieving precise control of wet-film or dry-film thickness, providing consistent and Repeatability coatings for subsequent mass testing.
Applications
Coatings, inks, paints experimental film proofing, quality control, research and development
Steps
1. Select Manual or Automatic Film Applicator Mode
2. Select the film Film thickness (30, 60, 90 or 120 μm) as needed
3. Place Applicator on Substrate
4. Spreader Coatings, inks or paints
5. After finishing the film, follow-up drying or testing
Notice
• Applicator and substrate clean before use to avoid impurities affecting film mass
• Spreader process to maintain uniform strength to prevent uneven Film thickness
• Regularly check the abrasion of alloy steel and maintain it in time
• Only for experimental use, avoid use beyond the scope
Store in a drying environment to prevent corrosion
