Overview

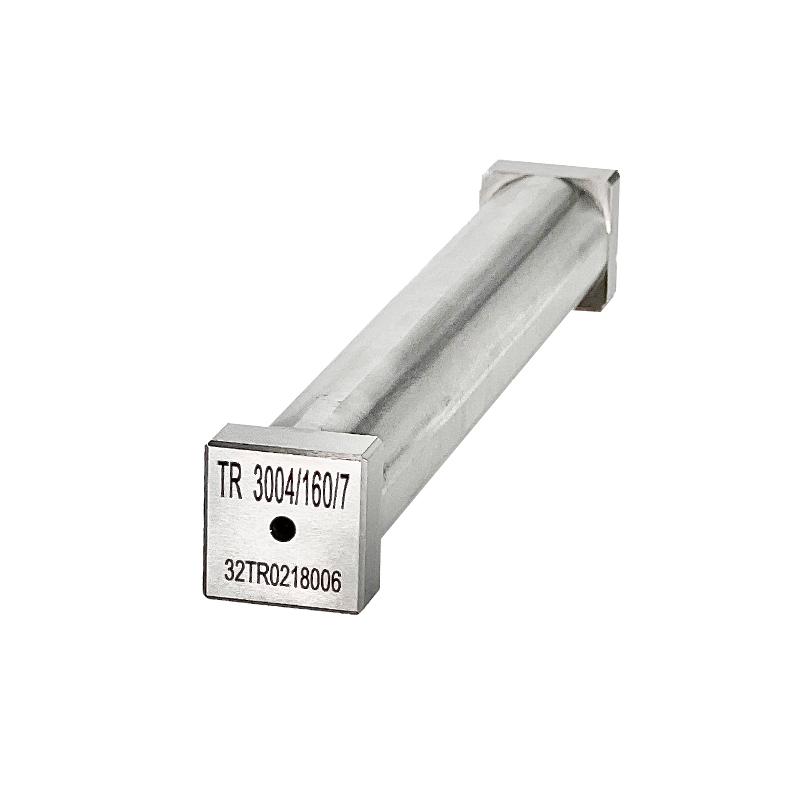

The TRUIT 4-sided Applicator TR 3004/160/9 is a device for experimental manual film proofing such as Coatings, inks, paints, etc. It can also be used with the automatic Film Applicator. The product has four film film thicknesses (100, 200, 300, 400 μm), Spreader width 160mm, and is made of high-quality wear-resistant and corrosion-resistant alloy steel. It can precisely control the wet-film or dry-film thickness to ensure the conformity and Repeatability of coatings.
Features
Four different film Film thicknesses (100, 200, 300, 400 μm)
2. Spreader width up to 160mm
3. Made of high-quality wear-resistant and corrosion-resistant alloy steel
4. Support Manual Film and Automatic Film Applicator
5. Can precisely control wet-film or dry-film thickness
6. Ensure coating conformity and Repeatability
Principle
The 4-sided Applicator evenly scrapes the surface of the substrate with coatings, inks or paints through preset different film thickness notches to form a wet-film of a specific film thickness. Push the Applicator through the manual or automatic Film Applicator to ensure precise control of the Coating thickness and provide standard samples for subsequent mass testing.
Applications
Coatings, inks, paints experimental film proofing, quality control testing, research and development testing
Steps
1. Select the slot of the desired film Film thickness
2. Applicator placed on the substrate surface
3. Push the Applicator evenly manually or through the Automatic Film Applicator
4. After finishing the film, remove the Applicator
Notice
• Ensure that the Applicator's surface is clean and free of contamination before use
• Maintain uniform speed when pushing to ensure uniform coating
• It should be cleaned and maintained in time after use
• Avoid contact with corrosive substances to prolong service life
