Overview

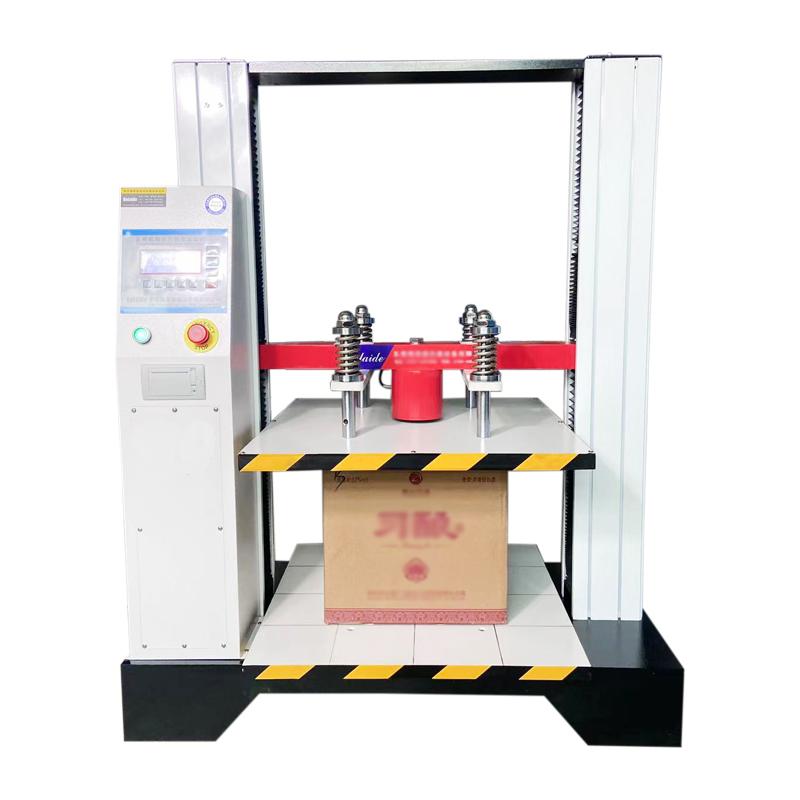

BLD-602-600 carton compression machine is a factory direct sales of carton static pressure test equipment, the test space is 600 * 600 * 600mm, using LCD display mode, with High Accuracy measurement ability, accuracy up to +/- 0.5%.
Features
1. Three standard working modes: strength test, fixed value test, and stacking test
2. High Accuracy measurement: analysis 1/100000, accuracy +/- 0.5%
3. Multiple unit switching: support KG, N, LB unit conversion
4. Printing function: can print serial number, peak value, average value and other data
5. Customized service: test space can be customized according to customer requirements
Principle
The equipment compresses the carton by applying static pressure, measures the compressive performance and displacement of the box, conducts stacking tests under different conditions according to national standards, and collects data through a precision Sensor and displays it on the LCD screen.
Standards
GB/T 4857.4-92 Encasement Transport Encasement Parts, Pressure Test Method, GB/T 4857.3-92 Encasement Transport Encasement Parts, Static Load Stacking Test Method
Steps
1. Connect the 3, AC 220V power supply
2. Select the test mode: strength test, fixed value test or stacking test
3. Set relevant parameters (pressure, displacement or stacking time)
4. Place the carton sample in the test space
5. Start the test, the device runs automatically and collects data
6. View the LCD display results and use the print function to output the test data
