Overview

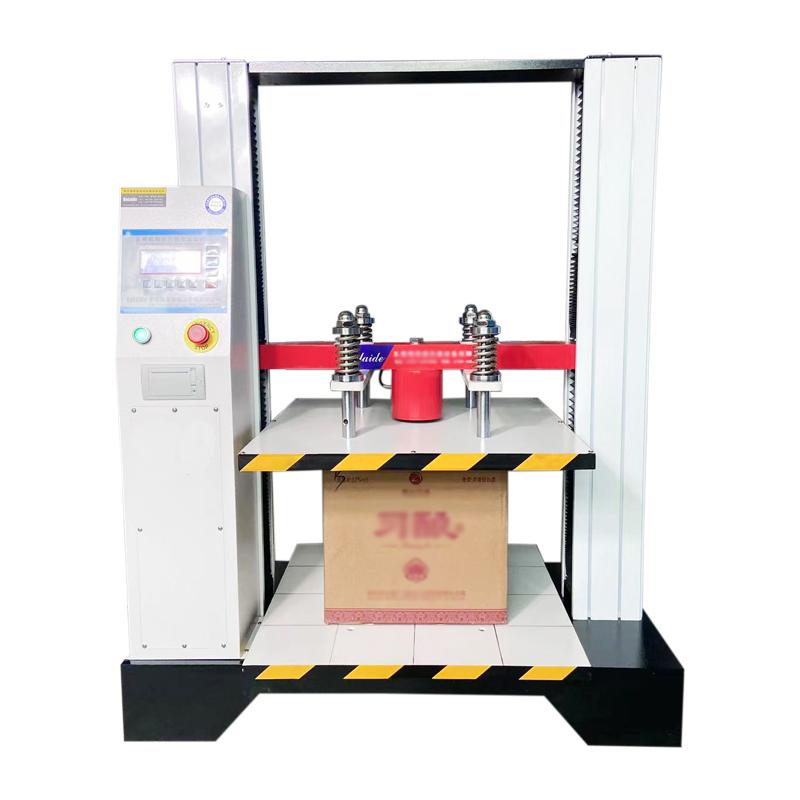

BLD-602-1400 carton compression machine is a factory direct sales test equipment, mainly used for the measurement of carton compressive strength and stacking performance. The equipment has a variety of standard working modes, which can adapt to different testing needs. The test space is 1400 * 1400 * 1400 mm, and can also be customized according to user requirements.
Features
1. Microcomputer control, providing three standard working modes: strength test, fixed value test and stacking test;
2. The maximum pressure resistance and displacement of the box can be measured;
3. Support setting pressure and displacement to detect the overall performance of the box;
4. Conduct stacking tests according to national standards, and support conditions such as 12 hours and 24 hours.
5. The capacity can be selected from 1000KG or 2000KG, the display mode is LCD, and the unit can be switched to KG, N, LB;
6. High Accuracy analysis 1/100000, accuracy +/- 0.5%;
7. Compression speed standard 10mm/min +/- 3, with printing function, can record serial number, peak value, average value;
8. Material is 45 #steel, weight 480KG, power supply is 3, AC 220V.
Principle
The equipment applies static pressure to the carton through a microcomputer control system to measure its compressive strength and displacement. In the strength test, the maximum pressure resistance is detected; the fixed value test evaluates the box performance according to the preset parameters; the stacking test simulates the long-term stacking conditions to verify the load-bearing capacity of the carton. The compression speed is stable to ensure the accuracy of the test.
Standards
GB/T 4857.4-92 Encasement Transport Encasement Parts, Pressure Test Method, GB/T 4857.3-92 Encasement Transport Encasement Parts, Static Load Stacking Test Method
Steps
1. Connect the power supply to ensure that the power supply of the device is normal;
2. Select the test mode (strength test, fixed value test, or stacking test).
3. Set relevant parameters, such as pressure, displacement, or stacking time.
4. Place the carton in the test space and start the equipment for compression testing.
5. Record the test data and use the print function to output the results.
Notice
- Make sure the power supply is 3, AC 220V to avoid voltage mismatch.
- Check equipment accuracy and analysis before testing to ensure that it is within +/- 0.5%;
Adjust the test space according to the size of the carton and customize it if necessary.
When stacking tests, set the time conditions strictly according to national standards.
- Regularly maintain the material and structure of the equipment to prevent abrasion from affecting the test results;
- Pay attention to safety during operation and avoid overloading.
