Overview

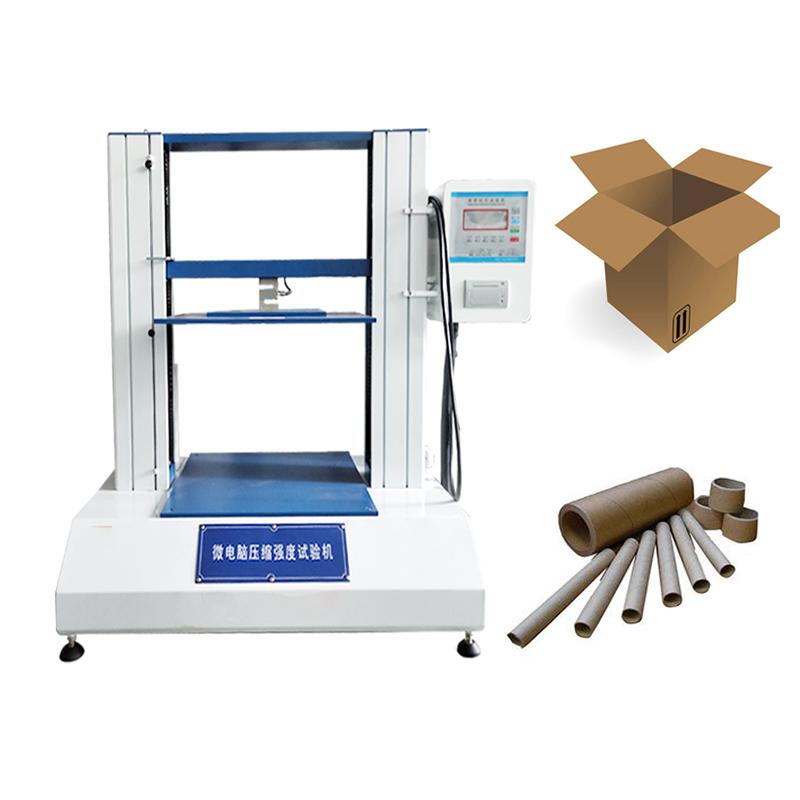

The 200mm paper tube compression machine (model BLD-600E) is a factory-sold Pressure Tester, which is mainly used to test the compressive strength and deformation of various products, including the ring pressure of the bobbin base paper, the edge pressure of the Cardboard and other tests. The instrument is a mechatronic structure, adopts modern mechanical design and microcomputer processing technology, has a fixed design on the upper platen, and has high Measurement accuracy. It is developed with reference to ISO national standard and new paper tube national standard.
Features
1. Adopt high-speed, high-precision variable-frequency motor control to save test time and improve test efficiency
2. Complete functions, can test paper tube compression, base paper ring compression strength, corrugated edge compression strength, etc
3. The instrument is designed with modern mechatronics and is equipped with a micro thermal printer
4. Driven by imported stepper motor, the pressure plate can return to the starting position at high speed after the measurement is completed, improving work efficiency
5. Apply imported variable frequency AC motor, the pressure plate spacing can be set arbitrarily, no limit switch is required
6. Using thermal printing movement imported from Japan, no need to print color ribbon, high-speed printing, silent, reduce the failure rate
Principle
The Pressure Tester is tested by mechatronics structure, adopts fixed design of upper pressure plate, and uses microcomputer processing technology for parameter testing, conversion, adjustment, display, memory and statistical printing. The instrument has data processing function, which can directly obtain statistical results and automatically reset.
Applications
Production enterprises, mass testing institutions
Standards
ISO national standard, new paper tube national standard
Steps
1. Power on (AC220V +/- 10% 2A 50HZ)
2. Set the platen spacing
3. Place samples for testing
4. Automatic measurement and data processing
5. After the test is completed, the pressure plate returns to the starting position at high speed
6. Use a thermal printer to print the results
Notice
• Power supply voltage within AC220V +/- 10%
• Regularly check instrument accuracy to maintain +/- 1% Measurement accuracy
• Avoid overload use, the force range does not exceed 500kg
• Note that the compression speed is controlled at 50 +/- 5mm/min
• Keep the instrument clean to prevent dust from affecting the test results
