Overview

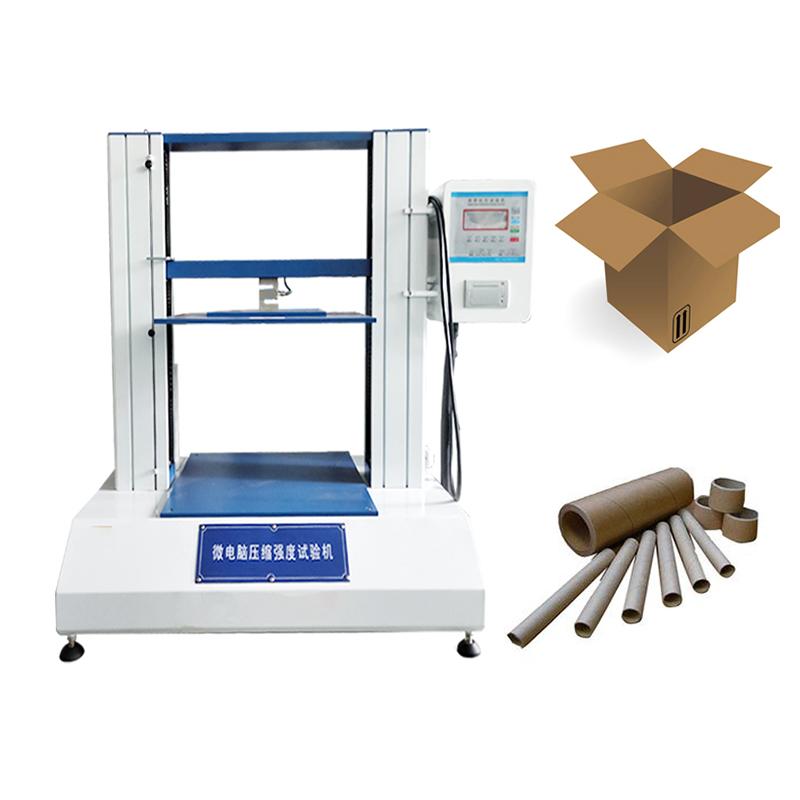

The paper tube compression machine 400mm (model BLD-600D) is a factory-sold Pressure Tester, which is used to test the compressive strength performance of samples. It is suitable for testing the compressive strength and deformation of various products, as well as the ring pressure of the original paper of the bobbin and the edge pressure of the Cardboard. The instrument is a mechatronic structure, adopts modern mechanical design and microcomputer processing technology, has a fixed design of the upper pressing plate, and has high Measurement accuracy. It is developed with reference to ISO national standard and new paper tube national standard.
Features
1. Adopt high-speed, high-precision variable-frequency motor control to save test time and improve test efficiency
2. Complete functions, can test paper tube compression, base paper ring compression strength, corrugated edge compression strength, etc
3. Modern mechatronics design, equipped with a micro thermal printer
4. High-speed return function, the pressure plate can return to the starting position at high speed after the measurement is completed, improving work efficiency
5. Apply imported variable frequency AC motor, the pressure plate spacing can be set arbitrarily, no limit switch is required
6. Using thermal printing movement imported from Japan, no need to print color ribbon, high-speed printing, silent, reduce the failure rate
Principle
The Pressure Tester is a mechatronics structure, which adopts modern mechanical design and microcomputer processing technology to test the compressive strength through the fixed design of the upper pressure plate. The instrument has data processing function, which can automatically test, convert, adjust, display, memory, statistical printing, and directly obtain statistical results and automatically reset.
Applications
Production enterprises, mass testing institutions
Standards
ISO national standard, new paper tube national standard
Steps
1. Connect power supply AC220V +/- 10% 2A 50HZ
2. Set the platen spacing arbitrarily as needed (0~ 500mm)
3. Select the test mode, such as paper tube compression, base paper ring compression strength or corrugated edge compression strength
4. Start the test, the instrument automatically makes measurements and displays the results
5. After the measurement is completed, the platen returns to the starting position at high speed
6. Use a thermal printer to print statistical results
Notice
• Power supply voltage within AC220V +/- 10%
• Regularly check the instrument accuracy to ensure that the measurement error is within +/- 1%
• Avoid overload use, the force range does not exceed 100KG, 200KG or 500KG
• Keep the instrument clean to prevent dust from affecting the test results
• Pay attention to safety during operation and avoid hands approaching the platen area
