Overview

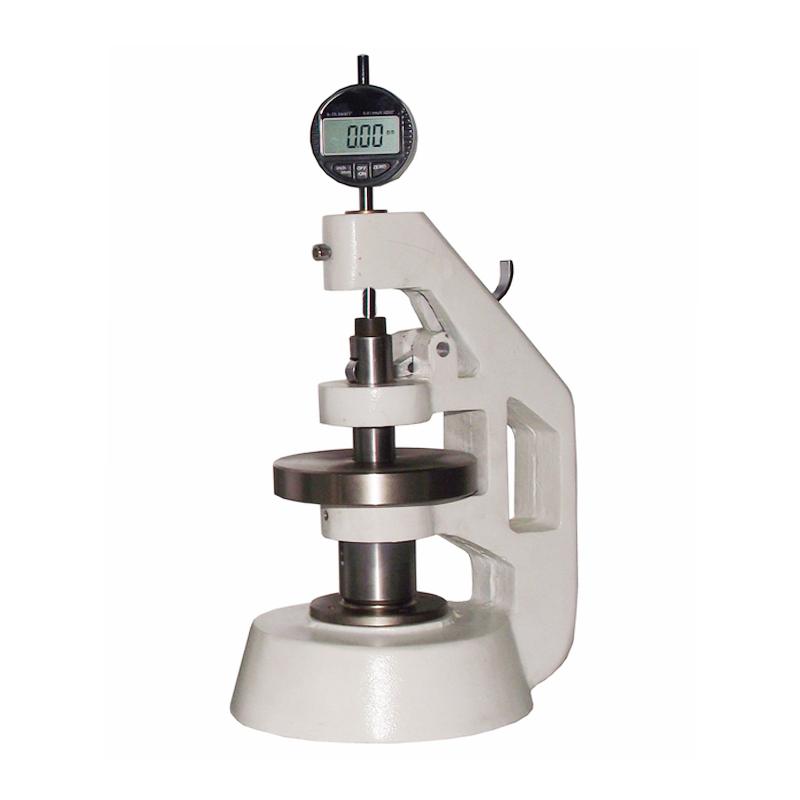

Paper Thickness Gauge BLD-01C is an instrument specially used to detect the film thickness of paper, Cardboard and sheet materials with certain tightness characteristics. The instrument is a difficult or lacking testing tool for paper manufacturers, Encasement manufacturers and mass Quality control supervision departments.
Features
1. Measurement range: 0~ 20mm
2. High Accuracy measurement: accuracy up to 0.001mm (0.01mm optional)
3. Multiple display methods: digital display (pointer optional)
4. High Accuracy indication: Indication Error only 0.05%
5. Standardized contact area: 1000 +/- 5 mm ²
6. Precise contact pressure: 20 +/- 5kpa
7. Excellent parallelism: ≤ 0.035mm
8. Portable design: weight about 2kg
9. Strong environmental adaptability: working environment temperature (20 +/- 10) ℃, humidity < 85%
Principle
The paper thickness gauge measures the sample through standardized contact area and contact pressure, and uses High Accuracy Sensor to detect the Film thickness of paper or Cardboard, and displays the measurement results through digital display or pointer.
Applications
Paper production enterprises, Encasement production enterprises, mass Quality control supervision departments
Standards
QB/T 1035、QB/T 451.3、QB/T 1055、ISO 438、ISO 534
Steps
1. Place the instrument in a compliant working environment
2. Ensure that the contact area and contact pressure meet the standard requirements
3. Place the sample to be tested in the measurement position
4. Film thickness measurement
5. Read and record measurement results
Notice
• Ensure that the working environment temperature is within the range of (20 +/- 10) ° C
The working environment humidity should be less than 85%
• Confirm that the contact area and contact pressure meet the standard requirements before use
Periodically check instrument parallelism and Indication Errors
• Take measurements according to standard operating procedures
