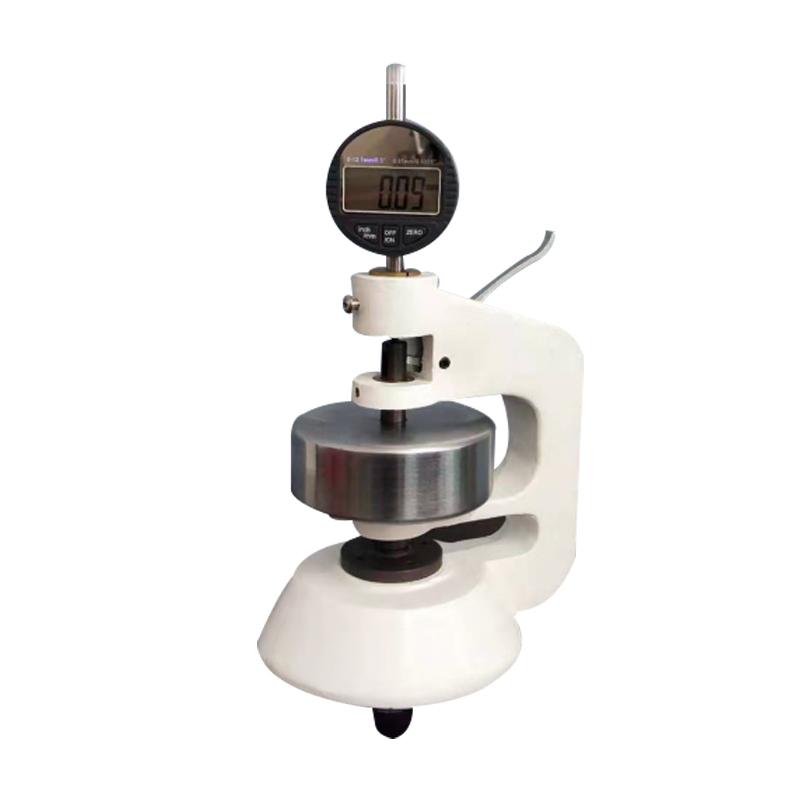

BLD-01A Cardboard Thickness Gauge, 0.01mm High Accuracy

Name: BLD-01A Cardboard Thickness Gauge, 0.01mm High Accuracy
Brand: BoLaiDe
SKU: NB043412
Price: 433.0 USD
Availability: InStock

$ 433.00Ex works

Measurement range 0-20mm, Graduation 0.01mm, Contact pressure 20 +/- 2kPa to ensure High Accuracy measurement; 1000 +/- 20mm ² Sensor with parallelism ≤ 0.035mm provides stable and reliable thickness detection.

Model

Get Quote

Category : Paperboard Thickness Gauge

Brand : BoLaiDe

SKU : NB043412

Service :The delivery and service By NBCLab.Com

Overview

The Cardboard Thickness Gauge BLD-01A is a digital display device for the measurement of Cardboard Film thickness. Measurement range 0-20mm, Graduation 0.01 mm, applying contact pressure (20 +/- 2) kPa, using a Sensor with a contact area of 1000 +/- 20 mm2, ensures accurate and reliable measurement results. The instrument offers High Accuracy, easy-to-operate solutions, widely used in Cardboard production, Quality control and related fields.

Features

1. Digital display design, easy to operate 2. Measurement range 0-20mm, covering common Cardboard Film thickness 3. High Accuracy Graduation 0.01 mm 4. The contact pressure is controlled within the range of (20 +/- 2) kPa 5. Contact area 1000 +/- 20 square millimeters 6. Parallelism of measurement plane ≤ 0.035 mm 7. Indication Error +/- 0.0025 mm or +/- 0.5% 8. Variability of indication ≤ 0.0025 mm or ≤ 0.5%

Principle

Cardboard Thickness Gauge uses High Accuracy Sensor to measure Cardboard Film thickness by applying standard contact pressure on the Cardboard surface. The instrument adopts digital display technology to display measurement results in real time to ensure accurate and reliable data.

Applications

Cardboard production, Quality control

Standards

QB/T 1035、QB/T 451.3、QB/T 1055、ISO 438、ISO 534

Measurement Range
(0~20)mm
Graduation
0.01mm
contact pressure
(20±2)kPa
contact area
(1000±20)mm²
Measurement plane parallelism
≤0.035mm
Indication Error
+/- 0.0025mm or +/- 0.5%
Indication variability
≤ 0.0025Mm or ≤ 0.5%

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
