Overview

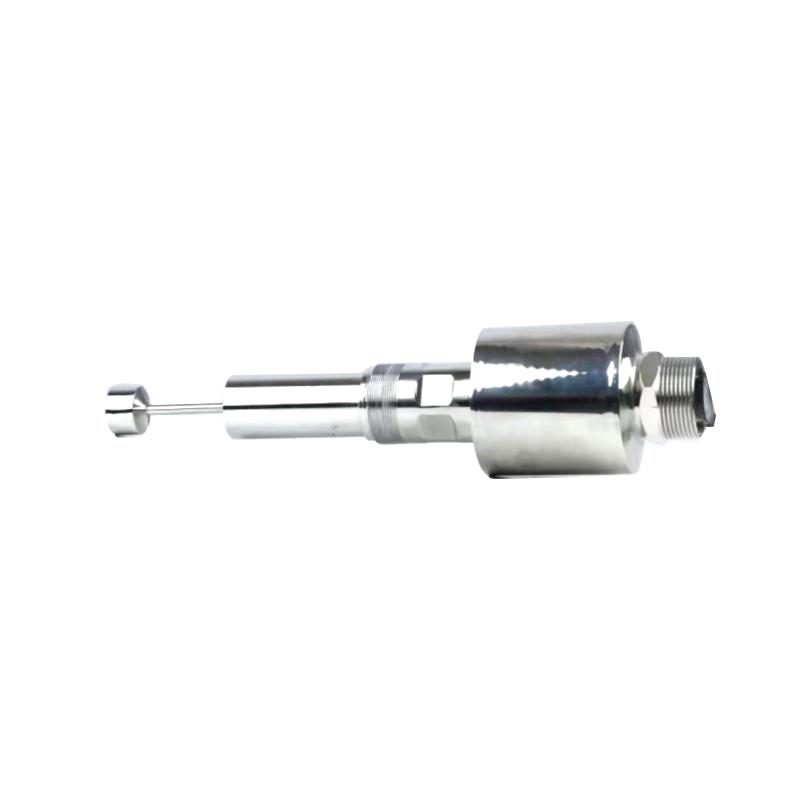

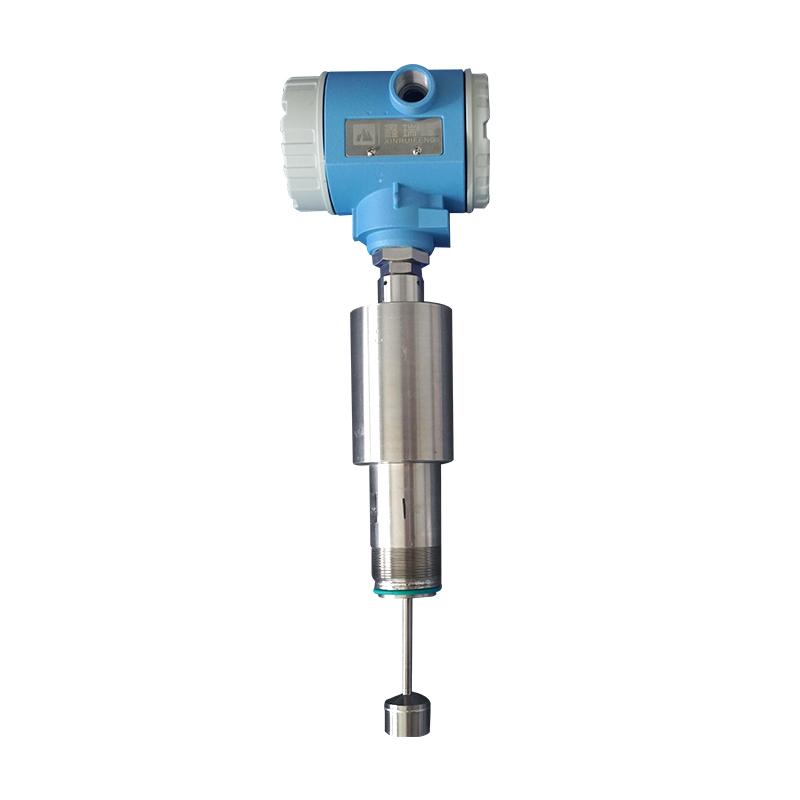

Ruifeng RFND-50B online micro-vibration Viscometer is a medium-range online Viscometer with a range of 0-100~ 5000mpa.s, suitable for fluid measurement in a wide range of viscosity. The product uses micro-vibration technology to simultaneously measure viscosity and temperature, and provides a variety of output signals and connection methods.
Features
1. Medium range viscosity measurement, covering the range of 0-100~ 5000mpa.s
2. High Accuracy measurement, viscosity accuracy +/- 0.5%
3. Wide Temperature Measurement range 0-500 ℃, temperature accuracy 0.2%
4. A variety of materials are available, standard 316 stainless steel, optional Hastelloy C alloy
5. High Protection Rating IP68, Explosion Proof Standard ExdIIBT6Gb

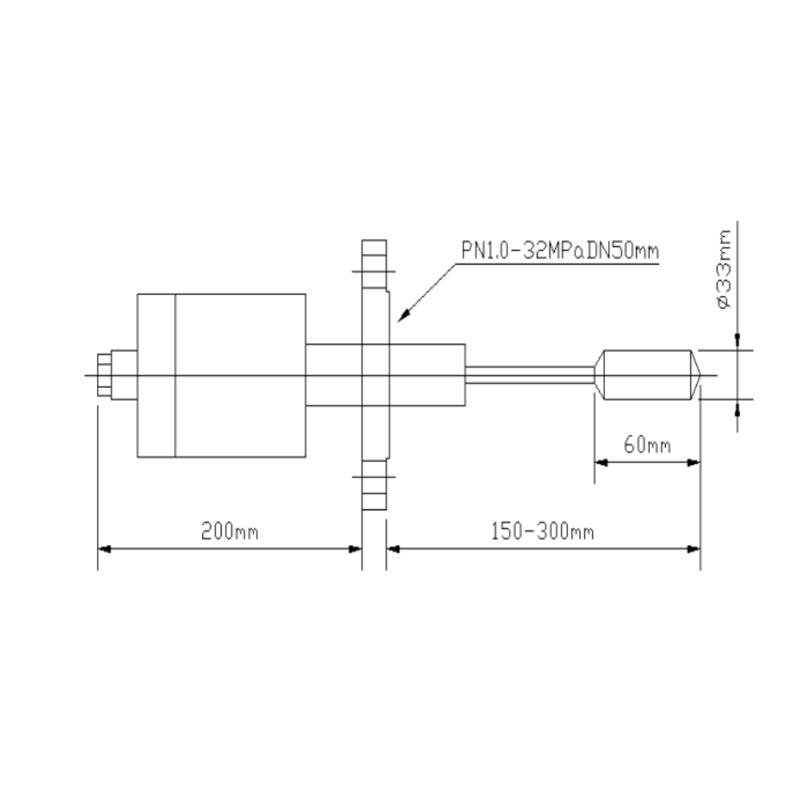

6. Various connection methods: flange DN40 PN4.0, threaded connection M42 * 1.5, quick chuck
7. Support Modbus-RTU protocol, 485 communication interface
8. Multiple viscosity units available (9 types)
Principle
The RFND-50B in-line micro-vibration Viscometer works based on the principle of micro-vibration. The Sensor generates micro-amplitude vibration in the fluid, and calculates the fluid viscosity by measuring the vibration damping. At the same time, the integrated temperature sensor can synchronously measure the fluid temperature, and output viscosity and temperature values through 4-20mA signal.
Applications
Silicone oil, Resin, fiber, inks, plastics, asphalt, lubricating oil, fine chemicals in each viscosity section
Standards
HG20592、ExdIIBT6Gb
Steps
1. Select the appropriate installation location and connection method (flange, thread or quick chuck)
2. Connection according to terminal instructions: 24V DC power supply (red +, green -), temperature 4-20mA (white +, black -), viscosity 4-20mA (brown +, gray -), 485 communication (yellow +, blue -)
3. Power on the starting device
4. View measurement data through the display header
5. For communication, configure Modbus-RTU protocol parameters
Notice
• Sensor working pressure must not exceed 25Mpa
• Sensor Operating temperature must not exceed 500 ℃
• Protection Rating Requirements During Installation
• Strictly follow the Terminal Color Mark when wiring
Calibration with standard sample solution is required before use
• When choosing the connection method, consider the on-site installation conditions
