Overview

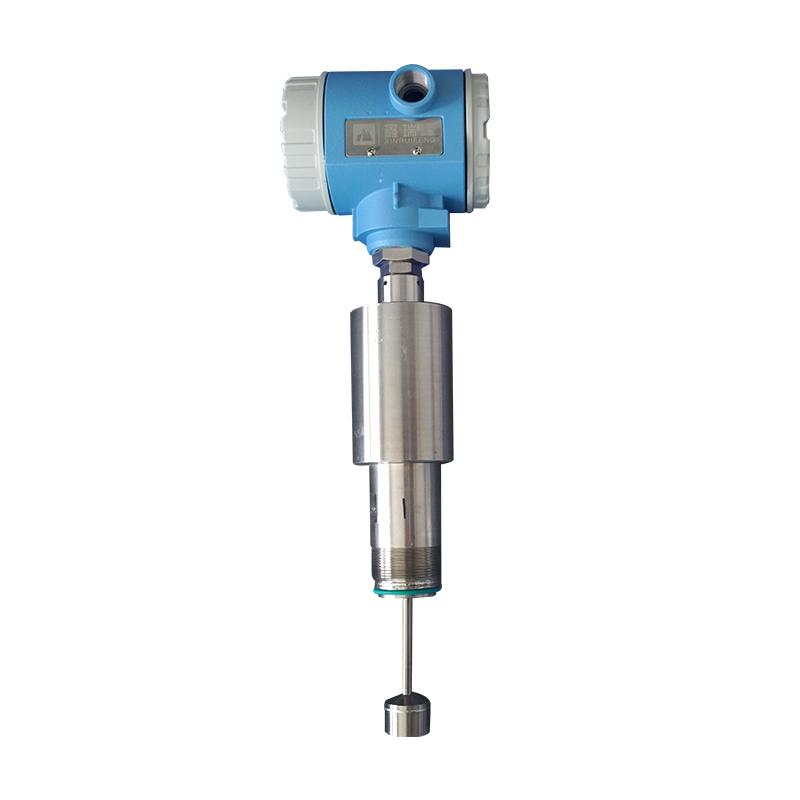

Ruifeng RFND-50G Online Viscometer is a large-range online micro-vibration Viscometer with a range of 0-5~ 50-5000pa.s, suitable for continuous online measurement of high viscosity media. The product adopts the principle of micro-vibration and provides High Accuracy viscosity monitoring, which is widely used in chemical, Adhesive and other industries.
Features
1. Large range design, covering 0-5~ 50-5000pa.s viscosity range
2. Measurement accuracy, viscosity accuracy +/- 0.5%
3. Wide Temperature Measurement range 0-500 ℃, temperature accuracy 0.2%

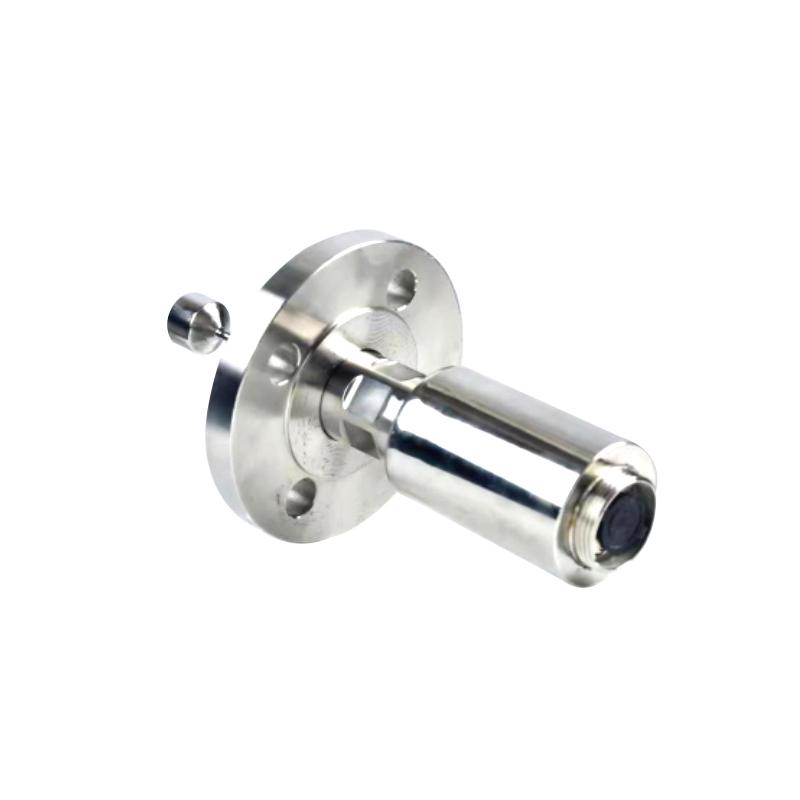

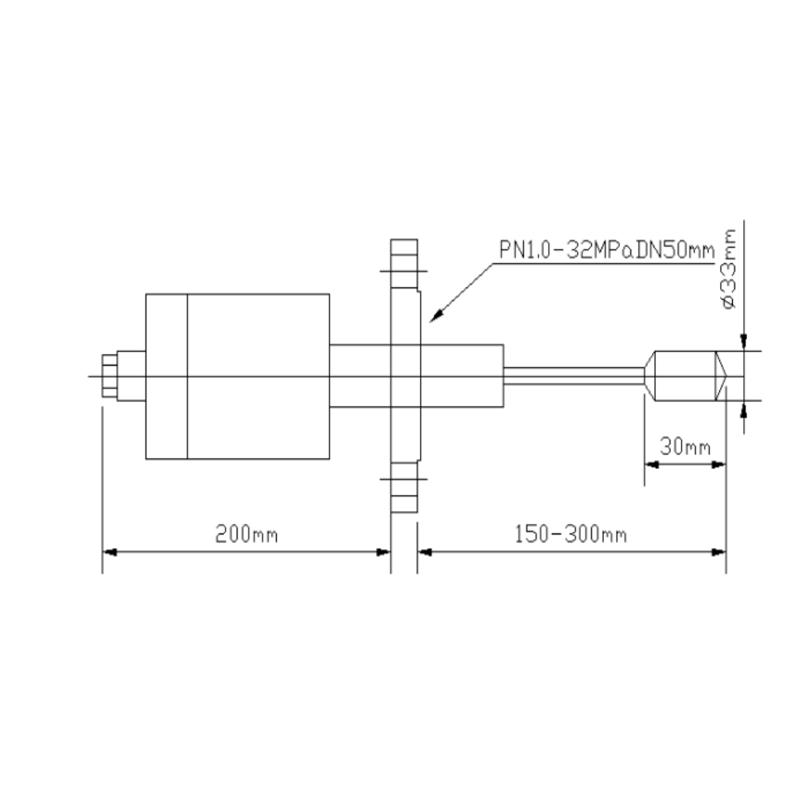

4. A variety of installation methods are available: flange DN40 PN4.0, threaded connection M42 * 1.5, quick chuck
5. High Protection Rating IP68, Explosion Proof Standard ExdIIBT6Gb
6. Support Modbus-RTU protocol, 485 communication interface
7. Various viscosity units are available (9 types)
8.316 stainless steel material, optional Hastelloy C alloy
Principle
The RFND-50G in-line Viscometer works based on the principle of micro-vibration. The Sensor generates small vibrations in the medium and measures the viscosity of the medium by detecting changes in the frequency or amplitude of the vibration. The vibrating element is in direct contact with the medium, and changes in viscosity will cause changes in vibration characteristics. The instrument converts these changes into standard electrical signal output.
Applications
High viscosity silicone oil, silicone grease, polyamine Resin, hot-melt adhesive
Standards
HG20592、ExdIIBT6Gb
Steps
1. Select the appropriate installation method (flange, thread or quick chuck) according to the process requirements.
2. Connection power: 24V DC anode connected to red port, cathode connected to green port
3. Connect viscosity output signal: brown wire is connected to viscosity 4-20mA +, gray wire is connected to viscosity 4-20mA-
4. Connection temperature output signal: white wire connection temperature 4-20mA +, black wire connection temperature 4-20mA-
5. If you need to communicate, connect to the 485 interface: the yellow cable is connected to 485 +, and the blue cable is connected to 485-.
6. Parameter setting and calibration after power on
7. Start monitoring system Start viscosity measurement
Notice
• Sensor working pressure must not exceed 25Mpa
• Medium temperature must not exceed 500 ° C
• Pay attention to the correct connection of the terminal blocks during installation
• Power supply voltage 24V DC
• It is recommended to use Hastelloy C alloy material in corrosive media
• Regularly calibrate with standard sample solution
• Pay attention to Protection Rating requirements and ensure that the sealing is intact
• Explosion-proof occasions must strictly abide by explosion-proof standards
