Overview

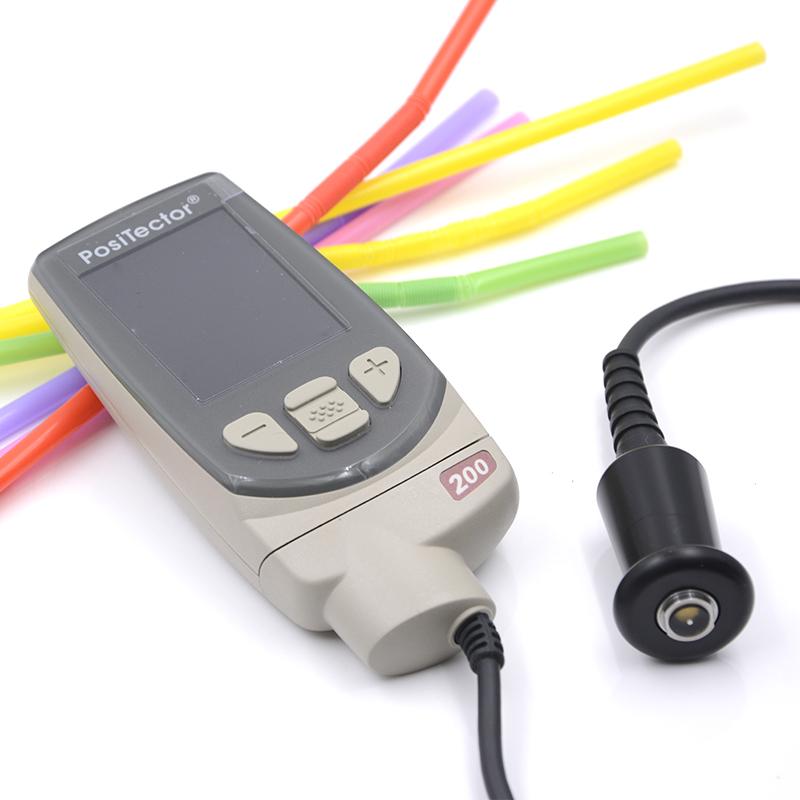

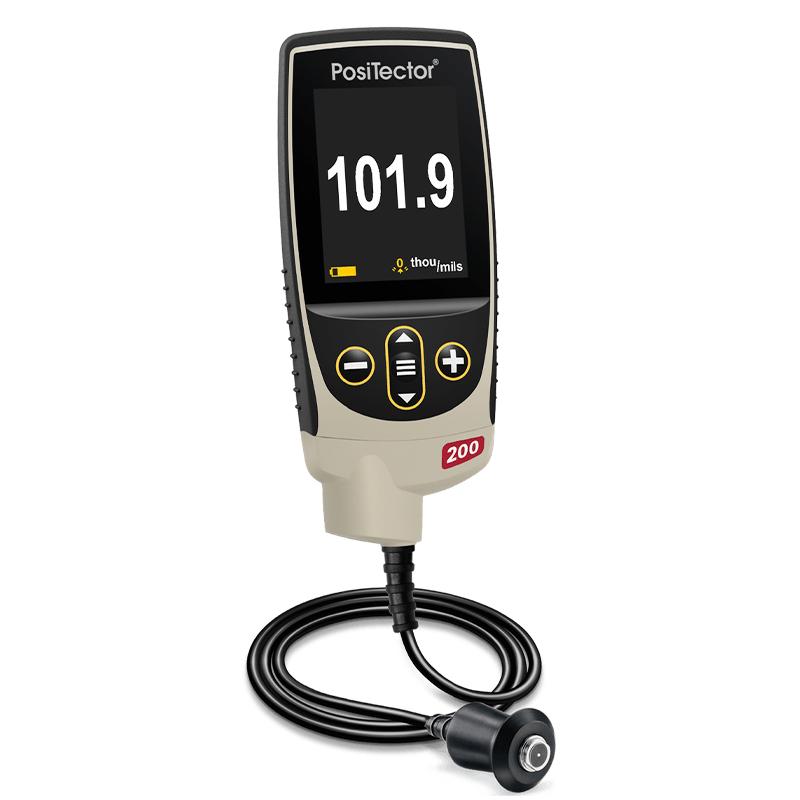

Defelsko B Standard 200B1-E Ultrasonic Thickness Gauge is a standard Ultrasonic Thickness Gauge, which uses ultrasonic thickness measurement technology for the measurement of polymer Coating thickness on wood, plastic and other surfaces. Measurement range is larger than the general Coating thickness gauge, high accuracy, can store 250 data.
Features
1. Measurement range 13-1000 microns (0.5-40 mils)
2. Store 250 readings, which can be viewed or downloaded
3. Resistant to solvents, acids, oils, water and dust, all-weather protection
4. The rubber sheath with belt buckle has shock absorption and protection functions
5. One-handed operation menu, portable and easy
6. Two-color indicator light, good performance in noisy environment
7. Sensitive Sensors Provide Fast and Accurate Readings
8. High contrast backlight display, inverted display function
9. Use alkaline batteries or rechargeable batteries
10. Continuous display of Average, Standard Deviation, Min/Max Thickness and Number of Readings
11. Screenshot function for easy archiving and browsing
12. Connect the computer through the USB port, standard USB cable
13. Each stored data is labeled with a date and time
14. Update software via the Internet
15. Two-year mass warranty for mainframe and Probe
Principle
Using non-destructive ultrasonic thickness measurement technology, ultrasonic measurement of polymer Coating thickness on wood, plastic and other surfaces. Comply with ASTM D6132 and ISO 2808 standards.
Applications
Wood, plastic, etc. polymer coatings
Standards
ASTM D6132、ISO 2808
Steps
1. Select the instrument model with the appropriate Measurement range
2. No need to calibrate for most tests
3. Probe measurement of polymer coatings on wood, plastics and other materials
4. One-handed operation menu for measurement
5. Connect to the computer through the USB port to download the stored readings
6. Use the PosiSoft USB driver to obtain stored readings and charts
Notice
• Measurement range of 13~ 1000μm
• The measurement error is +/- (3% H + 2) μm
• Powered by 3 * 7 batteries
• Host size 127 * 66 * 25.4mm, weight 137g (excluding battery)
The calibration standard is DeFelsko STDA3.
• Protection Rating for solvents, acids, oils, water and dust
• One-year mass guarantee
