Overview

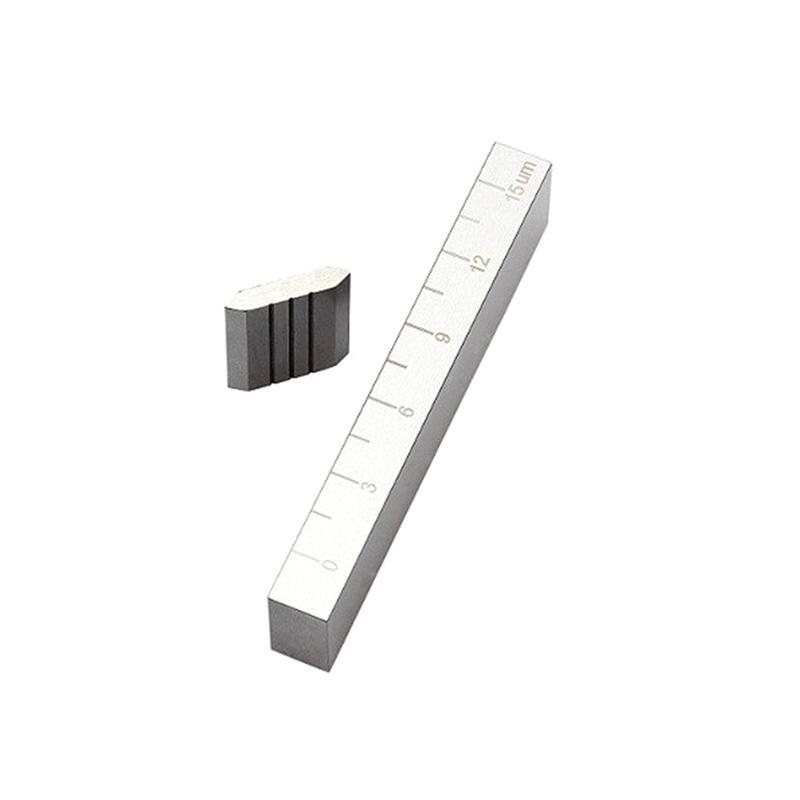

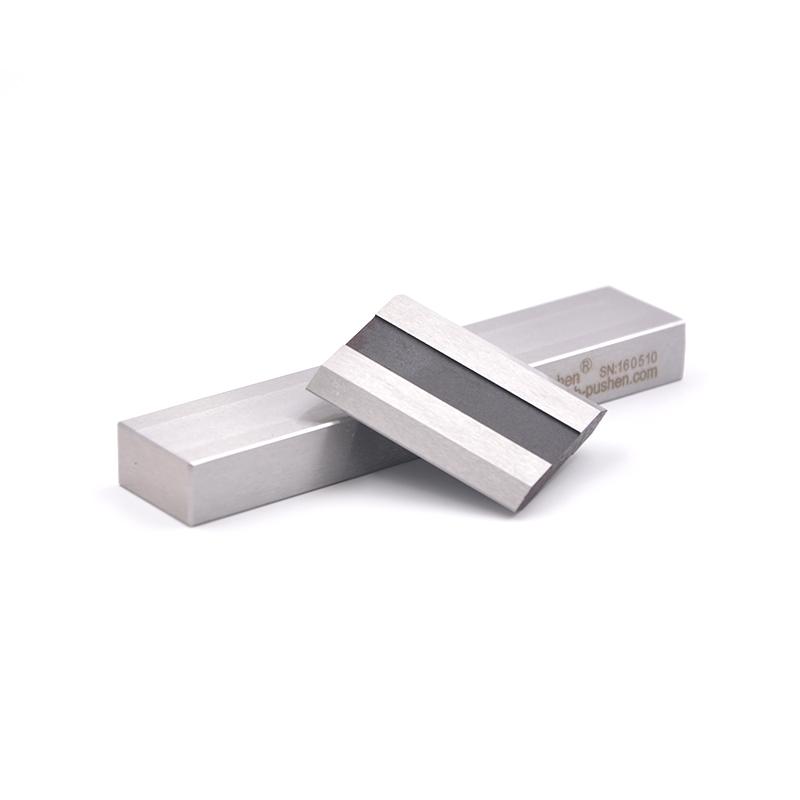

PUSHEN double-channel small Grindometer model is 0-15um, made of stainless steel, is a double-channel Grindometer, used to detect the fineness of particles such as Coatings, inks. The product is designed according to the relevant standards of fineness meters, Measurement range is 0~ 15μm, slot width is 12mm.
Features
1. double-channel design, the number of scraping grooves is 2
2. Made of stainless steel, durable
3. Measurement range 0~ 15μm, Graduation 1.5μm
4. The scale unit is microns (μm)
5. Groove width 12mm, scraper size 165 * 37 * 12mm
Principle
The fineness meter is scraped on the surface of the sample by a scraper, and the fineness of particles such as Coatings and inks is measured according to the distribution of particles in the groove, and quantified in microns.
Applications
Coatings, inks
Standards
Fineness meter related standards
Steps
1. Prepare the sample to be tested
2. Place the sample in the scraper groove
3. Use a scraper to scrape evenly across the sample surface
4. Observe the distribution of particles in the groove
5. Read the fineness value
Notice
• Make sure the scraper and sample are clean before use
• Maintain even strength when scratching
• Avoid collision between the scraper and hard objects to prevent damage
• Clean and store properly after use
