Overview

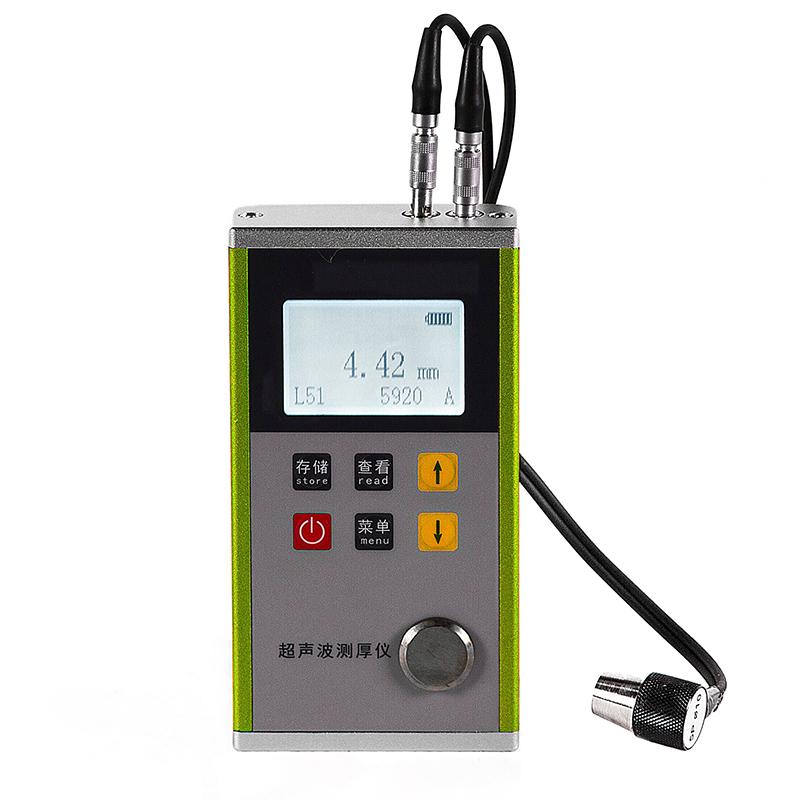

LEEB332 Ultrasonic Thickness Gauge is a device that uses ultrasonic measurement principle, can store 2000 data, the speed of sound is adjustable, and the standard probe Measurement range is 1-250mm. It is suitable for material film thickness measurement that can make ultrasonic waves propagate at a constant speed and reflect from the back. It can perform accurate measurement and corrosion monitoring on plates, machined parts, pipelines and Pressure Vessels. It is widely used in petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace and other fields.
Features
1. Film thickness is known for composite and unknown materials, and accurate sound velocity is measured;
2. Set the upper and lower tolerances to exceed the automatic alarm.
3. Status prompt function;
4. Adjustable sound speed;
5. Adjustment of instruments;
6. With coupling status prompt function;
7. High luminance LED backlight display, easy to use in dim environment of light rays;
8. The remaining power indicator function can display the remaining power of the battery;
9. With power-saving functions such as automatic sleep and automatic shutdown;
10. Compact, Portable, High Stability, Suitable for harsh operating environments, Anti-Vibration, Impact and Electromagnetic Interference;
11. Metric and imperial systems are optional.
12. 2000 pieces of data can be stored.
Principle
The principle of ultrasonic measurement Film thickness is similar to the light wave Measurement principle. The ultrasonic pulse emitted by the probe reaches the object to be measured and propagates in the object, and is reflected back to the probe when it reaches the material interface. Film thickness of the material to be measured is determined by accurate measurement of the time of ultrasonic wave propagation in the material.
Applications
Petroleum, chemical industry, metallurgy, shipbuilding, aviation, aerospace
