Overview

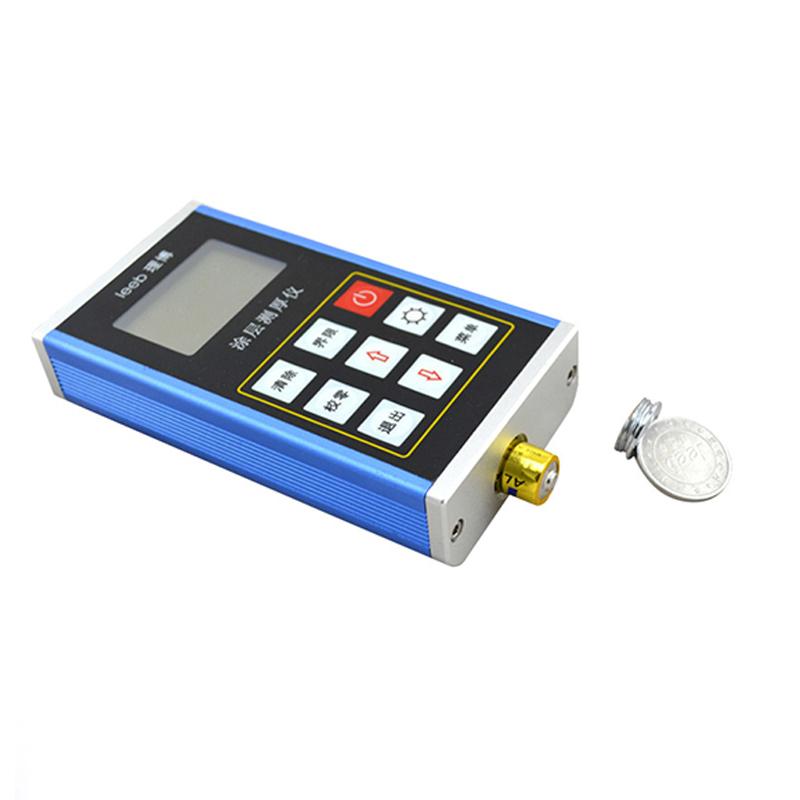

LEEB Leeb231 Coating thickness gauge adopts eddy Current Measuring method, which can nondestructive detect the film thickness of nonconductive insulating coatings on nonmagnetic metal substrates, such as rubber, plastics, paints, oxide films on aluminum, copper, zinc, tin, etc. This instrument can be used in Eletroplating, anti-corrosion, chemical industry, automobile, shipbuilding, light industry, commodity inspection and other testing fields. It can be used in laboratories and engineering sites. It is an important instrument in the testing industry.
Features
1.There are two measurement methods: continuous measurement and single measurement
2. Has two working modes: direct and group mode
3. With automatic statistics function: average value (MEAN), MAX Maximum (MAX), MIN Minimum (MIN), number of tests (NO.), standard deviation (S. DEV)
4. The instrument can be calibrated by single-point calibrating and two-point calibrating, and the system error of the probe can be corrected by the basic calibrating method
5. Storage function: 4 correction workpieces can be stored, 26 groups per type, 15 pieces per group, a total of 1560 measured values
6. Delete function: Delete a single suspicious data that appears in the measurement, and also delete the data in the storage area for new measurements
7. Set the limit: the measurement value outside the limit can automatically alarm
8. With power undervoltage indication function, there is a beep prompt during operation, and the automatic shutdown mode
9. Metal shell: the fuselage material is aviation aluminum metal shell, low anti-interference abrasion
Principle

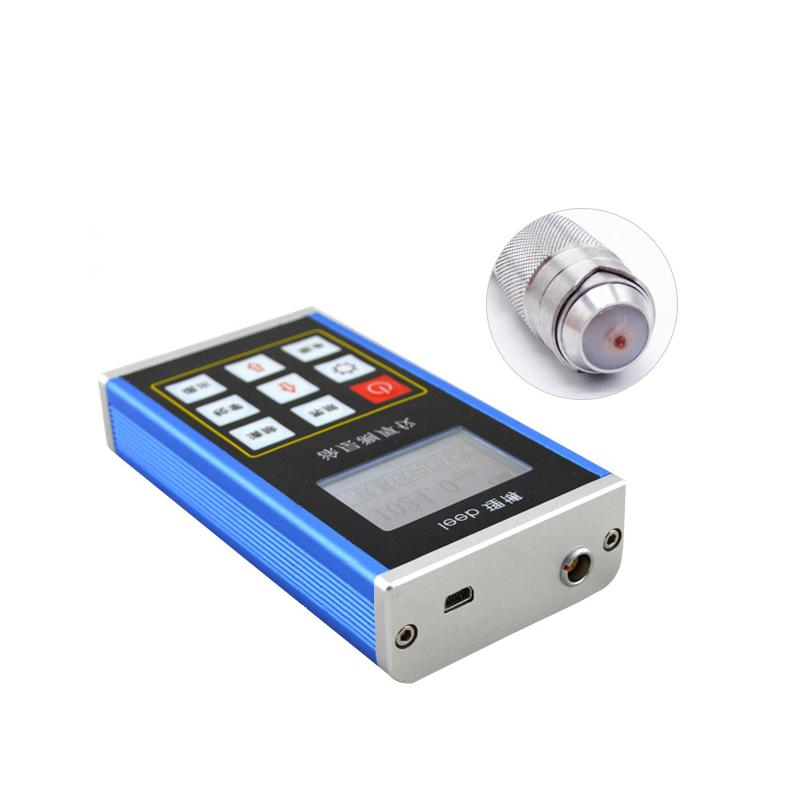

This instrument uses the eddy Current Measurement principle to measure the film thickness of nonconductive coatings on nonmagnetic metal substrates (such as copper, aluminum, zinc, tin, etc.) (such as enamel, rubber, paints, plastics, etc.). Using high-frequency alternating current to generate an electromagnetic field in the coil, when the probe is in contact with the cover layer, eddy Current is generated on the metal substrate, and the coil in the probe is fed back. Film thickness of the cover layer can be derived by measuring the size of the feedback effect.
Applications
Eletroplating, anti-corrosion, chemical industry, automobile, shipbuilding, light industry, commodity inspection
Standards
GB/T 4956-1985 Nonmagnetic film thickness measurement magnetic method on metal substrate, GB/T 4957-1985 nonconductive film thickness measurement eddy current method on nonmagnetic metal substrate, JB/T 8393-1996 magnetic and eddy current film thickness measurement instrument, JJG 889-95 "Magnetoresistive Thickness Gauge", JJG 818-93 "eddy Current Thickness Gauge"
Steps
1. Select the measurement method: continuous measurement or single measurement
2. Select the working method: direct or group
3. Perform calibrating: use single-point calibrating or two-point calibration method

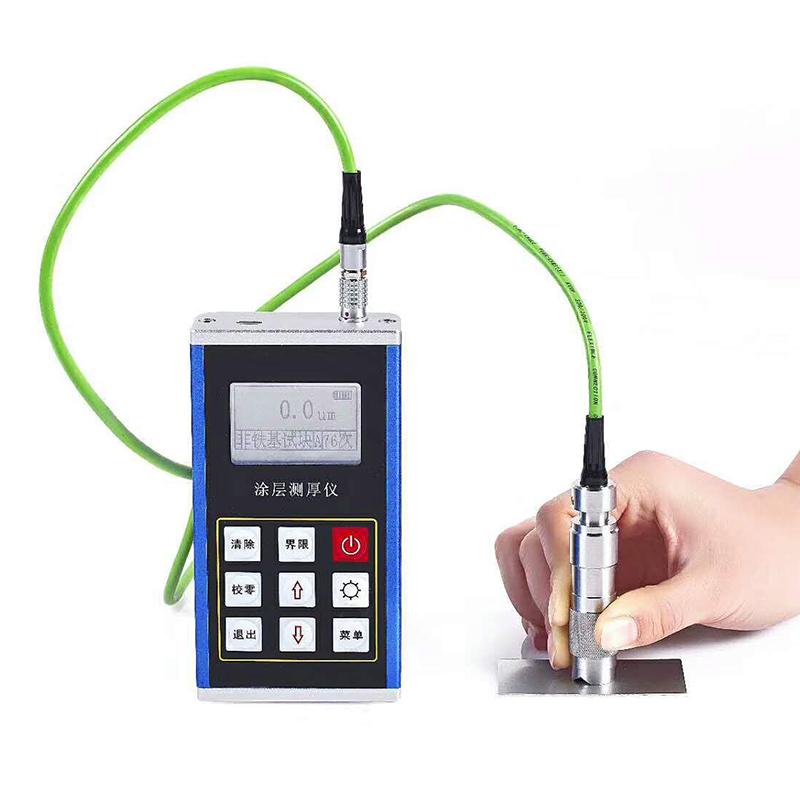

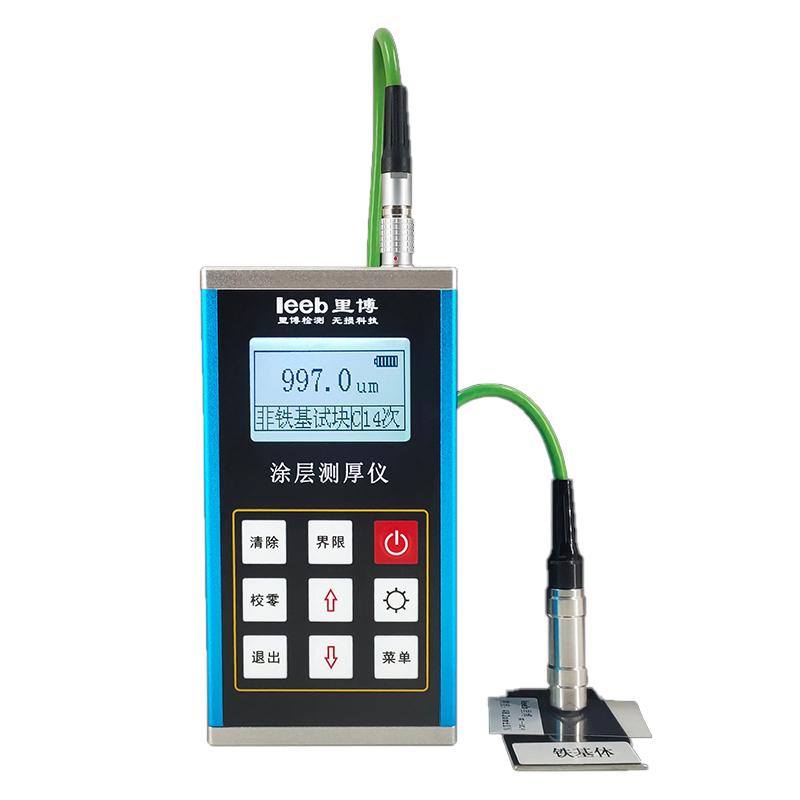

4. Start measurement: Contact the probe with the cover for measurement
5. View statistical results: including average, MAX Maximum, MIN Minimum, number of tests, standard deviation
6. Store or delete data: Save or delete measurement data as needed
7. Set limits: set limits on measurement values and alarm
8. Monitor power status: pay attention to power undervoltage indication and automatic shutdown
Notice
• Measurement range: 0~ 1250μm, ensure use within the range
• Resolution: The low limit resolution is 0.1μm, pay attention to Measurement accuracy
• calibrate Error: One point calibrate Indication Error is +/- (3% H + 1), two point calibrate Indication Error is +/- [（ 1~ 3%) H + 1], need to calibrate correctly
• Radius of curvature: minimum convex radius of curvature 1.5mm, concave radius of curvature 9mm, avoid measurement on surfaces with too small curvature
• Area diameter: The minimum area diameter is φ 7mm to ensure that the measurement area is large enough
• Critical Film thickness: Basic critical Film thickness is 0.5mm, pay attention to the substrate Film thickness requirements
• environmental conditions: temperature 0~ 40 ℃, humidity 20%~ 90%, avoid use in extreme environments
• Power supply: use AA type alkaline battery 1.5V two, pay attention to battery status and replacement
• Storage capacity: Up to 1560 measured values can be stored to manage data in a timely manner
• Shell material: metal shell, pay attention to anti-interference and abrasion
