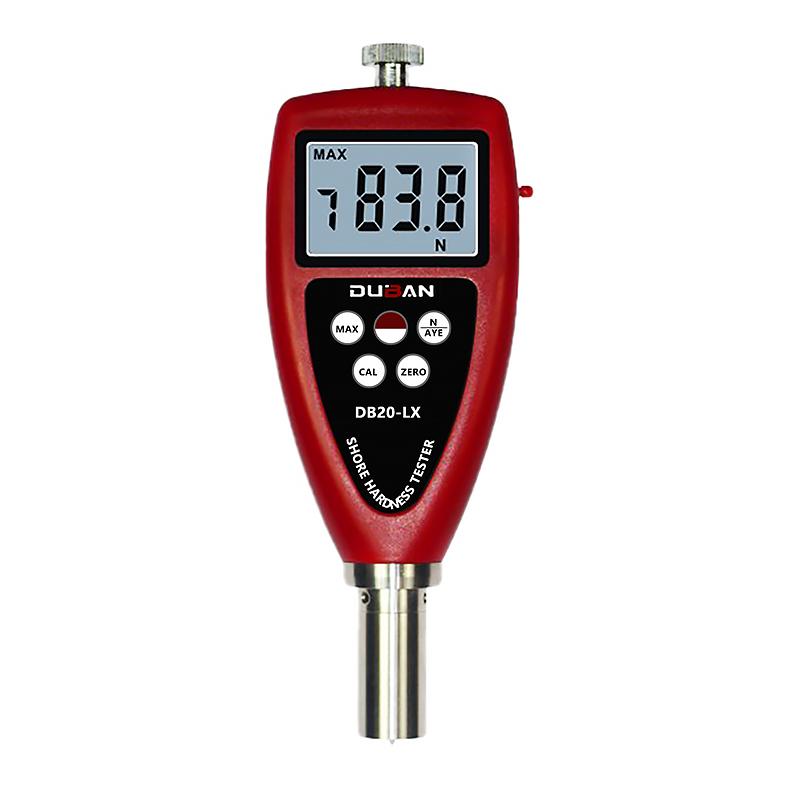

DUBAN DB20-LX-A Shore DuroMeter Rubber Plastic Hardness Tester

Name: DUBAN DB20-LX-A Shore DuroMeter Rubber Plastic Hardness Tester
Brand: Duban
SKU: NB044124
Price: 346.0 USD
Availability: InStock

$ 346.00Ex works

Using 0.79mm truncated cone stylus, Measurement range 20-90HA, resolution 0.1HA, support metric system conversion and average calculation, integrated design is easy to carry.

Model

DB20-LX-A

Get Quote

Category : Shore Durometer

Brand : Duban

SKU : NB044124

Service :The delivery and service By NBCLab.Com

Overview

DUBAN DB20-LX-A Shore Shore Durometer is a type A hardness gauge, specially used for the Hardness measurement of rubber and plastics. The instrument is simple in structure, easy to use, compact in size and light in weight. It supports handheld measurement or is installed on a matching loading rack for fixed load measurement, and the reading is intuitive.

Features

1. Integrated design, small size and light weight. 2. Support male/imperial unit conversion, with average calculation, MAX Maximum latch and undervoltage alarm indication functions. 3. Use "USB data cable output" and "RS-232 data cable output" to communicate with PC. 4. Provide "Bluetooth Bluetooth ™ data output" selection.

Principle

The hardness gauge measures Hardness based on the depth at which the plunger is pressed into the specimen. When using the test stand, a test force is applied by the weight of the stand on the central axis of the hardness gauge plunger, so that the plunger is pressed against the specimen, resulting in a stable and accurate Hardness value.

Applications

Rubber, plastic

resolution
0.1HA
Accuracy
≤1HA
Measurement Range
20~90A
display parameters
Hardness/Average/MAX Maximum
Operating environment
Temperature 0~ 40℃ Humidity < 90RH
power supply
2X1.5v AAA 7 batteries
Size
176x63x25mm
weight
310 g (without batteries)
