Overview

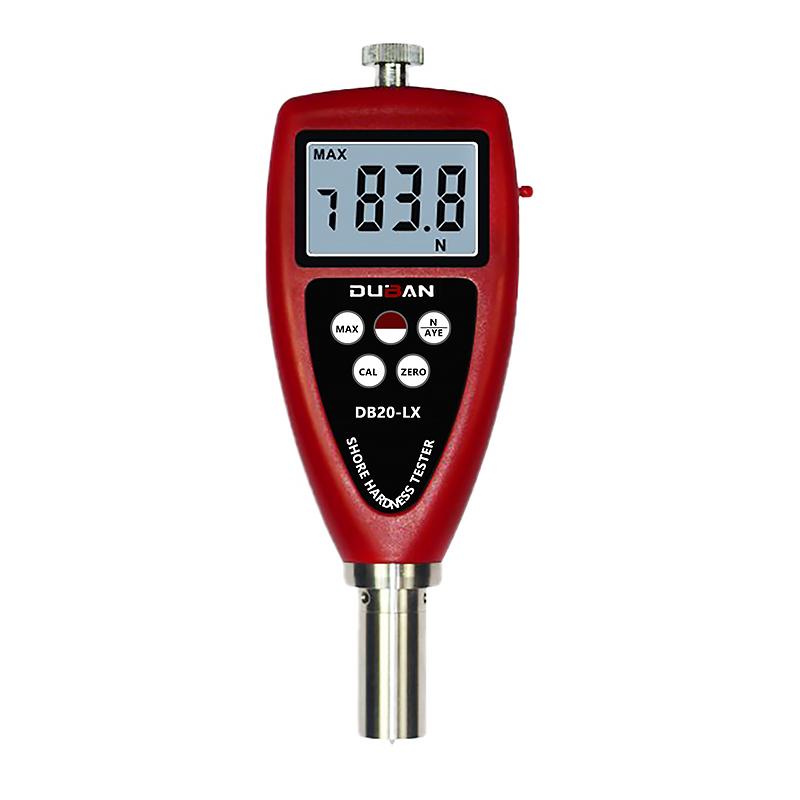

DUBAN DB20-LX-Shore C-type Shore Shore Durometer is a C-type Hardness measuring instrument, which belongs to one of the Shore Shore Durometer series. The instrument is simple in structure, easy to use, light in shape, and intuitive in reading. It can be used for handheld measurement or installed on a matching loading rack for fixed load measurement. It is widely used in the Hardness measurement of rubber and plastics.
Features
1. Integrated design, small size and light weight
2. Metric/imperial unit conversion, with average calculation, MAX Maximum latch and undervoltage alarm indication functions
3. Use "USB data cable output" and "RS-232 data cable output" to communicate with PC
4. Provide "Bluetooth Bluetooth ™ data output" selection
Principle
The Shore Shore Durometer measures the Hardness value by applying pressure to an object with a measurement probe. When using a test stand, a test force is applied by the weight of the stand on the central axis of the hardness gauge press pin, so that the hardness gauge press foot is pressed on the specimen, resulting in a stable and accurate Hardness value.
Applications
Determination of Hardness of Rubber and Plastics
Steps
1. Choose the appropriate type of hardness gauge
2. Handheld measurement or installed on the matching loading rack
3. Apply the test force to the specimen by pressing the full pressure
4. Read Displayed Hardness/Average/MAX Maximum
Notice
* Using the test stand can effectively improve the measurement Precision
* Pay attention to the working environment temperature 0~ 40 ℃, humidity < 90% RH
* Replace the battery in time to avoid undervoltage affecting the measurement
* Choose the appropriate model according to the Hardness of the measured object
