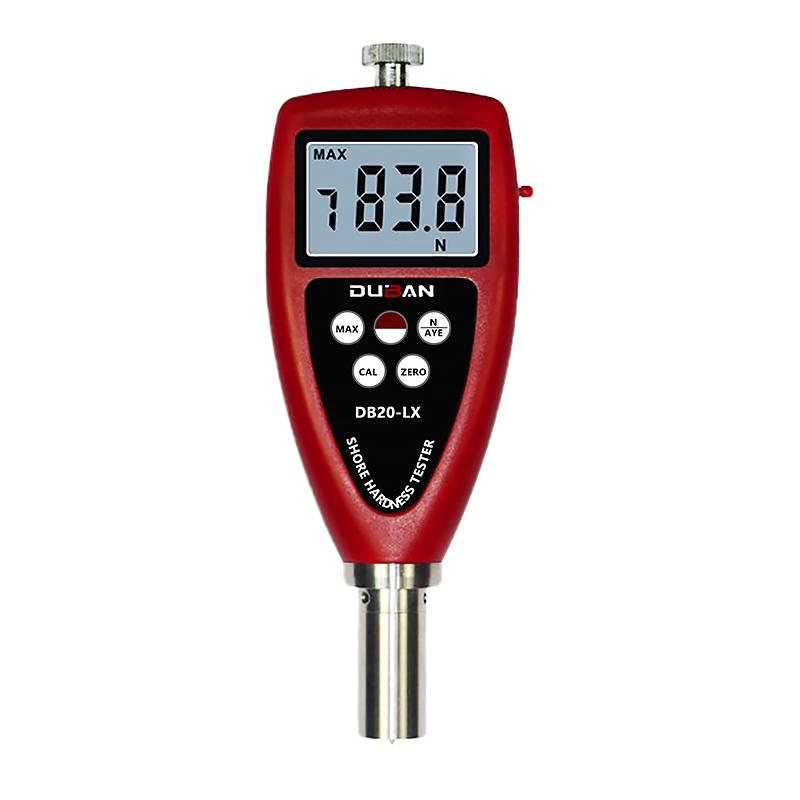

DUBAN DB20-LX-DO Shore DuroMeter Integrated Design Bluetooth Output

Name: DUBAN DB20-LX-DO Shore DuroMeter Integrated Design Bluetooth Output
Brand: Duban
SKU: NB044130
Price: 391.0 USD
Availability: InStock

$ 391.00Ex works

The integrated design weighs only 310 grams, supports Bluetooth and USB dual communication mode, Measurement accuracy ≤ 1H resolution 0.1H, can be matched with testing device rack to improve measurement Stability, suitable for different Hardness material detection.

Model

DB20-LX-DO

Get Quote

Category : Shore Durometer

Brand : Duban

SKU : NB044130

Service :The delivery and service By NBCLab.Com

Overview

DUBAN DB20-LX-DO type Shore Shore Durometer is DO type Hardness measuring instrument, dedicated to the Hardness measurement of rubber and plastics. The instrument is simple in structure, easy to use, compact in size and light in weight. It supports handheld measurement or matching loading rack loading measurement to meet the needs of different objects Hardness measurement.

Features

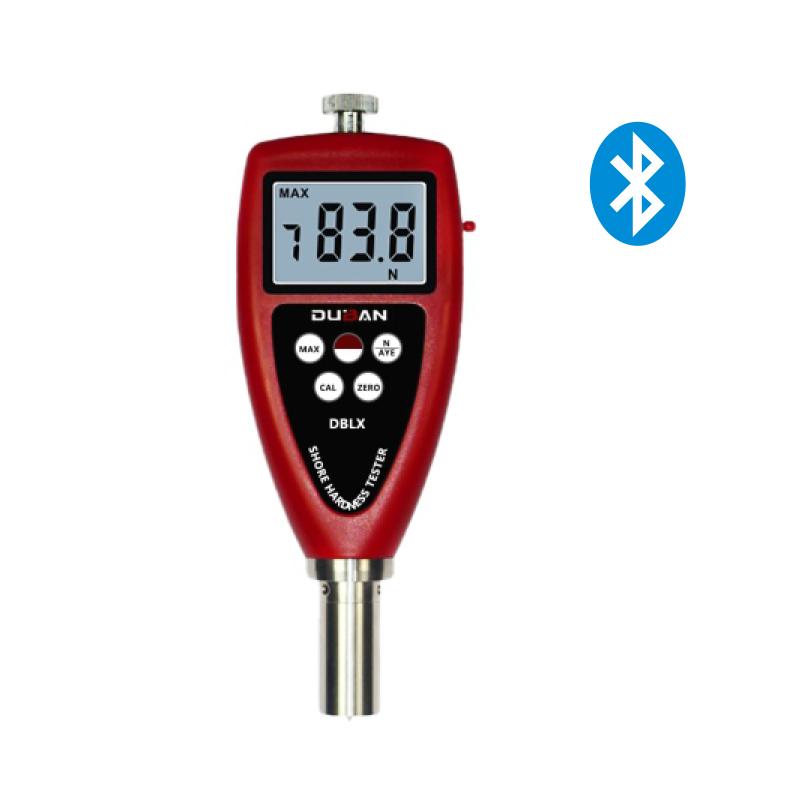

1. Integrated design, small size and light weight. 2. Metric/imperial unit conversion, with average calculation, MAX Maximum latch and undervoltage alarm indication functions. 3. Use "USB data cable output" and "RS-232 data cable output" to communicate with PC. 4. Provide "Bluetooth Bluetooth ™ data output" selection.

Principle

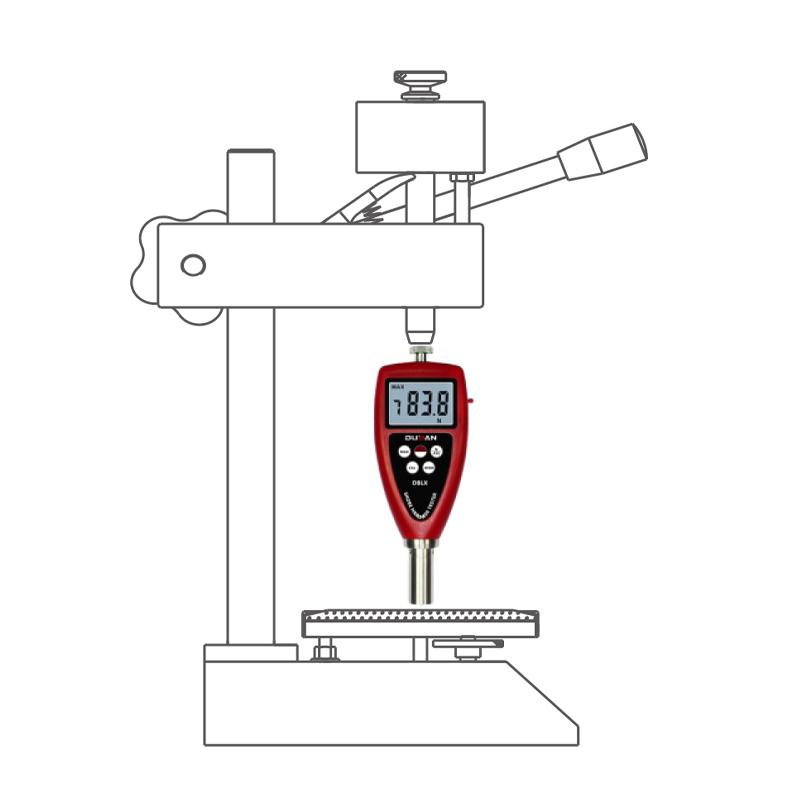

The use of Shore Shore Durometer test bracket can effectively improve the Precision of Rubber Hardness measurement. The test force is applied by the weight of the bracket on the central axis of the hardness gauge, so that the hardness gauge pressure foot is pressed on the sample, thereby obtaining a relatively stable and accurate Hardness value.

Applications

Rubber, plastic

Notice

* Working environment: temperature 0~ 40 ℃; humidity < 90% RH * Power supply: 2 * 1.5v AAA AA battery

resolution
0.1H
Accuracy
≤1H
Measurement Range
>90C<20D
display parameters
Hardness/Average/MAX Maximum
Operating environment
Temperature 0~ 40℃ Humidity < 90RH
power supply
2X1.5v AAA 7 batteries
Size
176x63x25mm
weight
310 g (without batteries)

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
