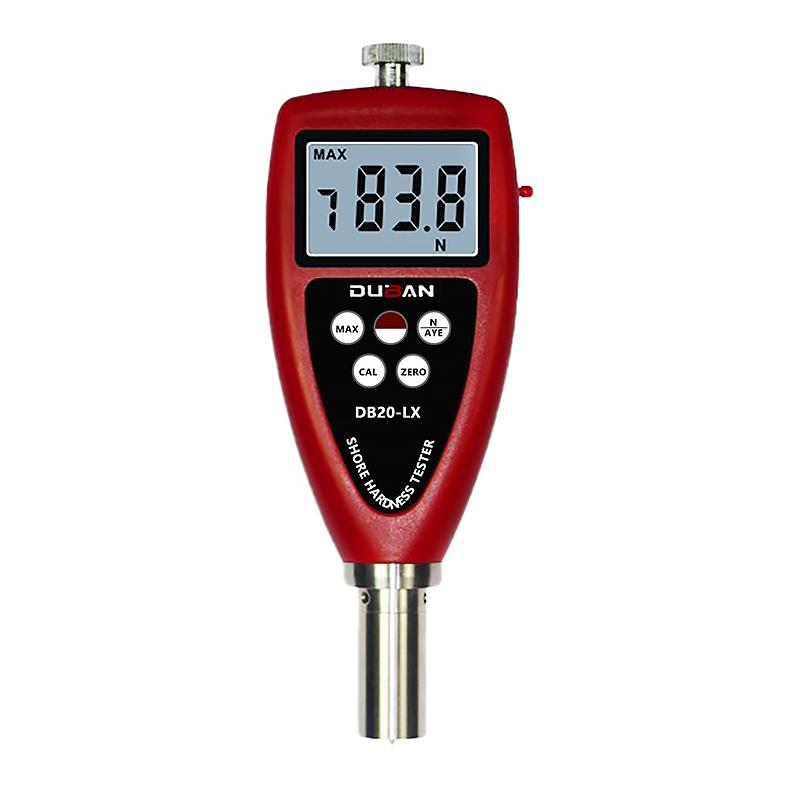

DUBAN DB20-LX-OOO OOO type Shore DuroMeter Shore DuroMeter O type

Name: DUBAN DB20-LX-OOO OOO type Shore DuroMeter Shore DuroMeter O type
Brand: Duban
SKU: NB044133
Price: 437.0 USD
Availability: InStock

$ 437.00Ex works

Resolution 0.1H, Accuracy ≤ 1H, Measurement range 10~ 90 HA/HD; Integrated design is lightweight, supports male/imperial conversion, average calculation and a variety of data output methods.

Model

DB20-LX-OOO

Get Quote

Category : Shore Durometer

Brand : Duban

SKU : NB044133

Service :The delivery and service By NBCLab.Com

Overview

The DUBAN DB20-LX-OOO Shore Durometer is an OOO model Hardness measuring instrument designed for the measurement of Hardness of materials such as very soft rubber, very soft and thermal plasticity plastics, sponges, foams, low density Spinning & weaving spindles, human and animal tissues. The instrument has the characteristics of simple structure, easy use, small body and intuitive reading. It supports handheld measurement or is installed on a loading rack for fixed load measurement. It is widely used in the determination of Hardness of rubber and plastics.

Features

1. Integrated design, small size and light weight. 2. Metric/imperial unit conversion, with average calculation, MAX Maximum latch and undervoltage alarm indication functions. 3. Use "USB data cable output" and "RS-232 data cable output" to communicate with PC. 4. Provide "Bluetooth Bluetooth ™ data output" selection.

Principle

The Shore Shore Durometer applies a test force on the specimen by pressing the needle to measure the Hardness value of the material. When using the test bracket, the test force is applied by the weight of the bracket on the central axis of the hardness gauge, so that the pressing foot is pressed on the specimen to obtain a stable and accurate Hardness value.

Applications

Determination of Hardness of Rubber and Plastics

resolution
0.1 H
Accuracy
≤1 H
Measurement Range
10~90 HA/HD(B/C/E/O/DO/OO)
display parameters
Hardness/Average/MAX Maximum
Operating environment
Temperature 0~ 40℃ Humidity < 90 RH
power supply
2X1.5v AAA 7 batteries
Size
176x63x25mm
weight
310 g (without batteries)

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
