Overview

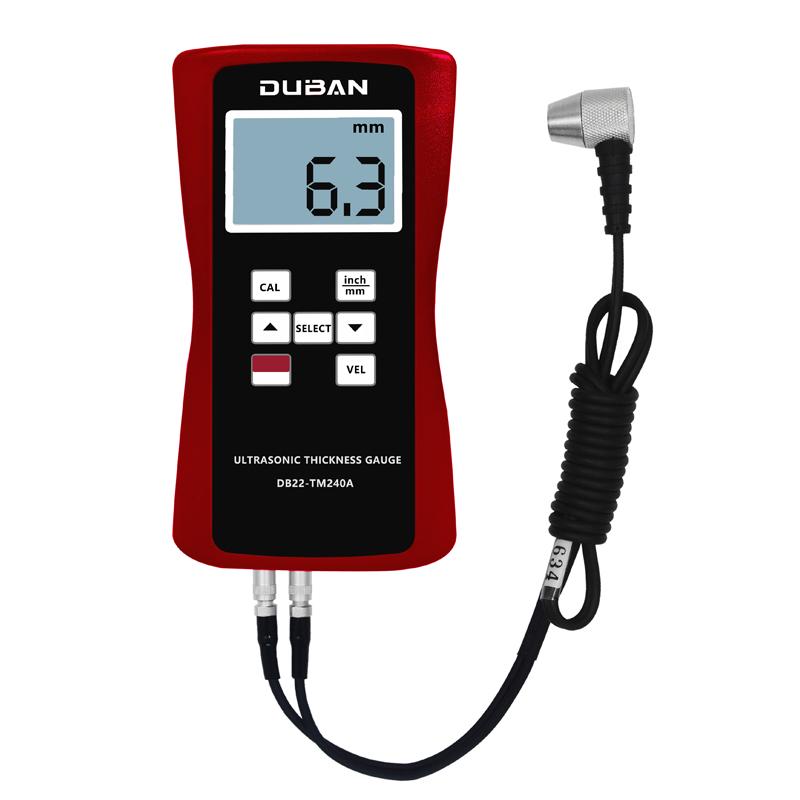

DUBAN DB22-TM240A Ultrasonic Thickness Gauge uses high-performance, low-power microprocessing technology. Based on the ultrasonic Measurement principle, it can measure the film thickness of metals and Miscellaneous materials, and can measure the sound speed of materials. The instrument can perform film thickness measurement on various pipes and Pressure Vessels in production equipment, monitor their thinning degree after corrosion during use, and can also make accurate measurement of various plates and various processed parts.
Features
1. Automatically memorize material codes and sound speed values for easy use
2. With coupling status prompt, automatic shutdown and manual shutdown functions
3. Use "USB data cable output" and "RS-232 data cable output" for data collection with PC
4. Optional "Bluetooth ™ data output"
Principle

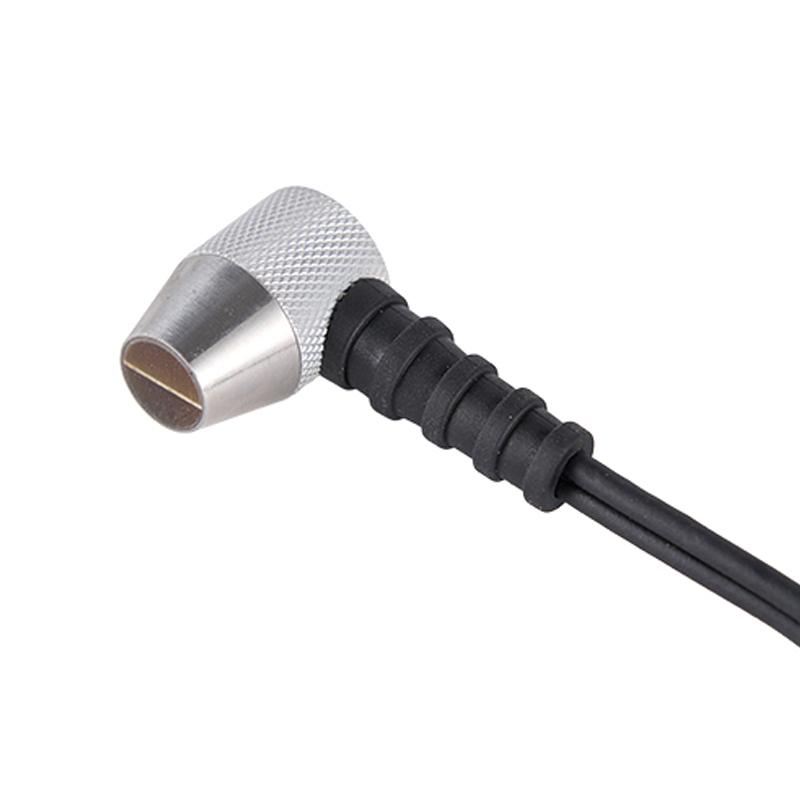

Based on Ultrasonic Measurement principle, Ultrasonic Sensor is used to transmit and receive ultrasonic signals for measurement of Film thickness and sound velocity.
Applications
Production Equipment Pipes, Pressure Vessels, Sheets, Machined Parts, Hard Materials, Aluminum, Copper, Brass, Zinc, polyethylene (PE), polyvinyl chloride (PVC), Gray cast iron, Steel, Cast Steel, Glass, Pottery and porcelain, Plastics
Steps
1. Select Measurement mode
2. Set the material code or sound velocity value
3. Coupling the Sensor to the Surface of the Material under Test
4. Read measurement results
5. Data output via USB, RS-232 or Bluetooth
