Overview

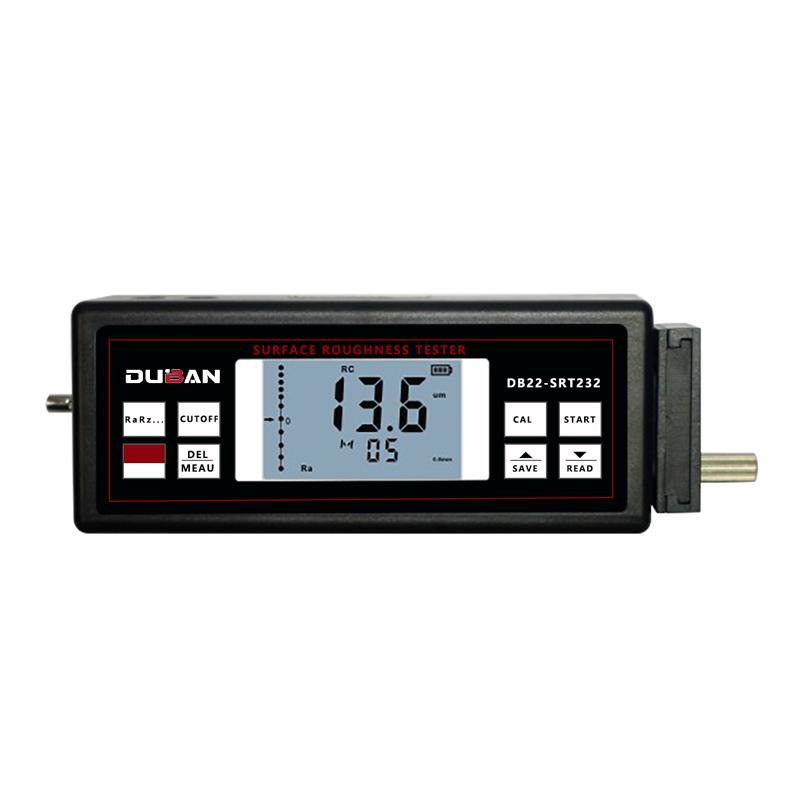

DUBAN DB22-SRT232 surface roughness instrument is a mechatronics design of portable measurement equipment, can be widely used in the production site measurement of a variety of machined parts surface roughness, according to the selected conditions to calculate parameters and clearly displayed on the LCD screen.
Features
1. Compliant with GB/T6062, ISO, DIN, ANSI and JIS standards
2. Mechatronics design, small size, light weight, easy to use
3. High Accuracy Sensor
4. Ra, Rz parameter measurement
5. Built-in lithium-ion rechargeable battery and charging control circuit, high capacity
6. With automatic shutdown function and metric-to-inch conversion function
7. Optional Deep Groove, Curved Sensor, Extension Rod, Measurement Bench
8. Adopt USB data cable output, optional Bluetooth data output
Principle
The device touches the measured surface through the High Accuracy Inductive Sensor, collects the surface profile data according to the selected sampling length and filtering method, and automatically calculates and displays the asperity parameter value.
Applications
Production site, machined parts surface roughness measurement
Standards
GB/T6062、ISO4287、DIN4768、JIS B、ANSI B46.1
Steps
1. Select measurement parameters and conditions
2. Contact the Sensor with the Tested Surface
3. Start measurement, the device automatically collects data
4. View the measurement results displayed on the LCD screen
5. Optional USB or Bluetooth output data
Notice
The working environment humidity should be less than 80% RH
• Sensor in good contact with the measured surface during measurement
• Regularly charge lithium-ion batteries
• Use the appropriate sampling length to correspond to the drive speed
• Optional accessories need to be configured according to measurement needs
