Overview

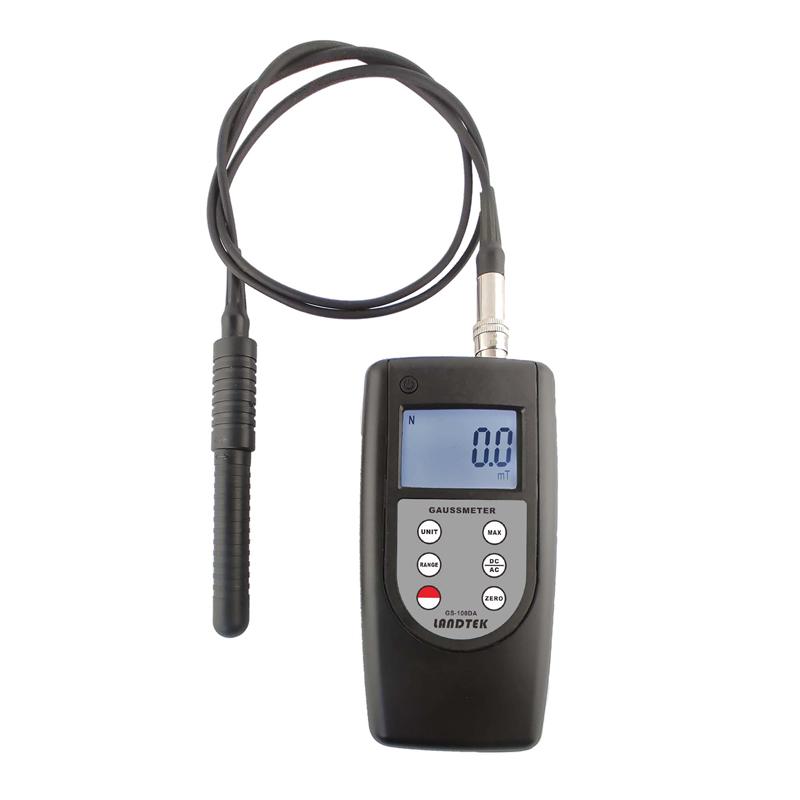

The LANDTEK GS-100DA Gaussimeter is a portable magnetic field measuring instrument with Hall Sensor technology for accurate measurement of DC and AC magnetic fields. With automatic zeroing, peak holding and unit conversion, the instrument is easy to operate with a clear LCD display and is suitable for a variety of industrial environments.
Features
1. Easy to carry, Measurement range; 2. Press-button automatic zero adjustment; 3. Easy operation, clear LCD display; 4. With measurement value/peak hold function, support MT/GS unit conversion; 5. Support 200mT/2000mT range conversion.
Principle
Based on the Hall effect principle, the instrument uses Hall Sensor (including transverse and axial types) to detect the magnetic field. The circuit design adopts a low drift amplifier and a stable power supply, and the data is controlled by a single chip microcomputer. The measurement results are displayed in real time on the 4.5 LCD display.
Applications
Industrial testing, laboratory measurement, magnetic field analysis
Steps
1. Turn on the power supply and check the battery or external power supply; 2. Select the Sensor type (lateral or axial) as needed; 3. Use the button to automatically zero; 4. Select the Measurement range (200mT or 2000mT); 5. Place the Sensor in the magnetic field area to be measured; 6. Read the LCD display value, choose peak hold or unit conversion; 7. Turn off the power after recording the data.
Notice
• Avoid use in high temperature, humid or condensation environment; • Ensure the power supply is stable, use the specified battery or external 5V regulated power supply; • Keep the Sensor aligned with the magnetic field direction during measurement; • Periodically calibrate the instrument to ensure Precision; • Store in a drying environment to prevent mechanical Impact.
