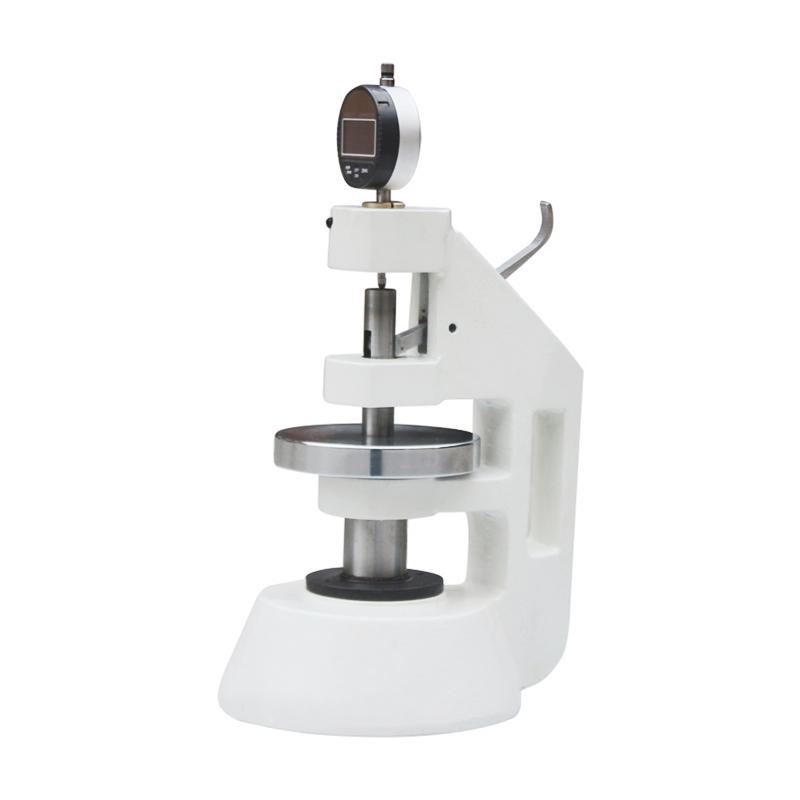

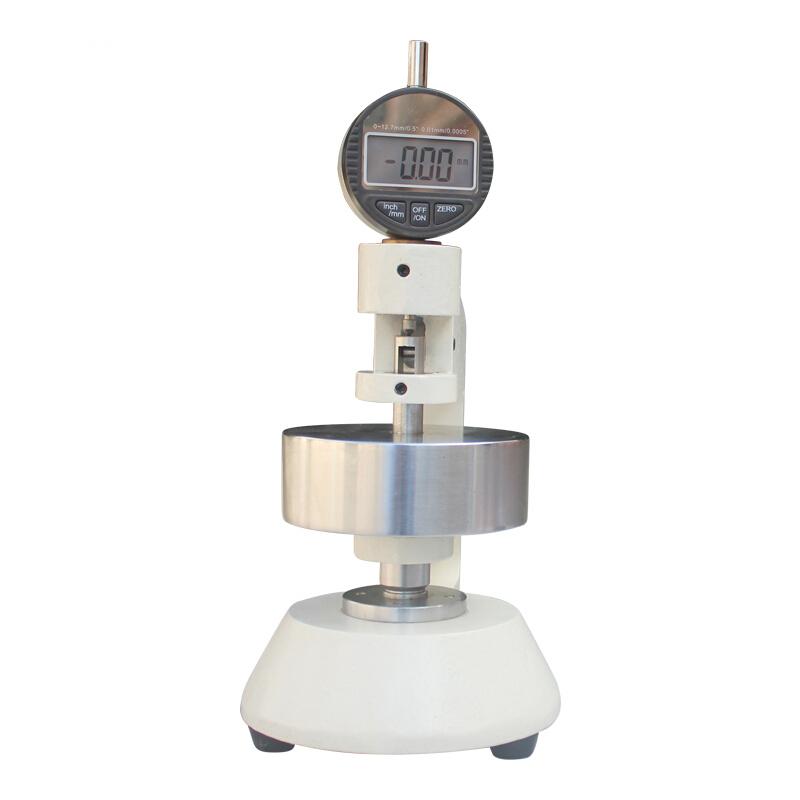

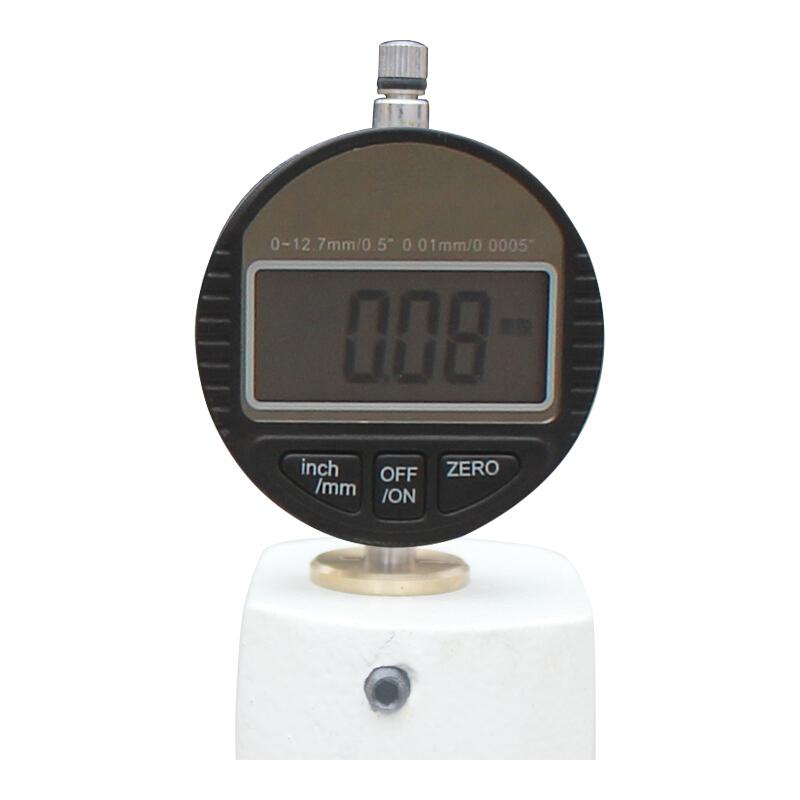

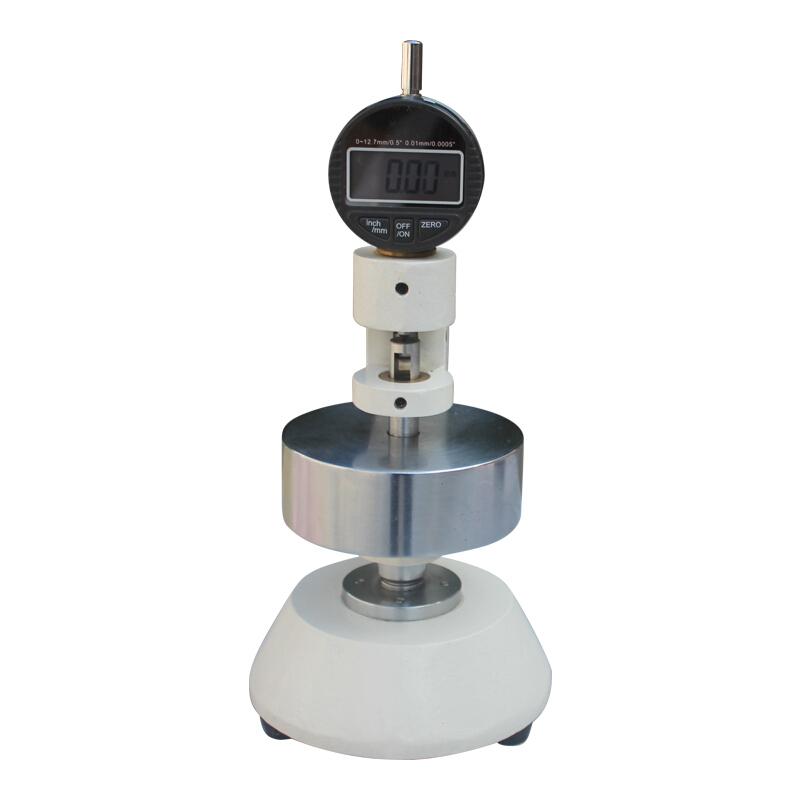

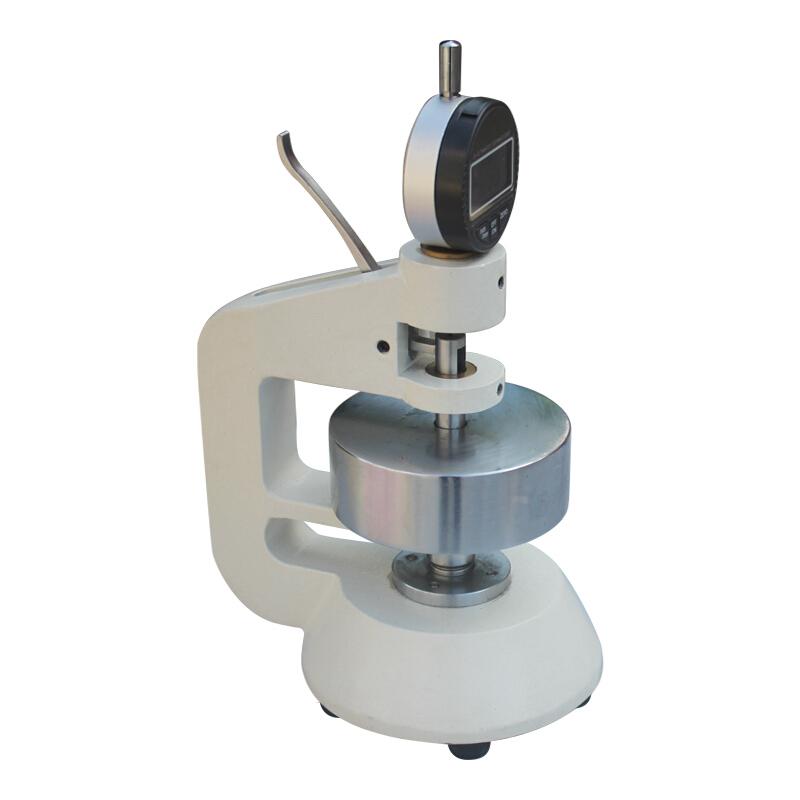

AISRY NBC-5633 Paper and Cardboard thickness Tester Contact pressure 100 +/- 10kPa Contact area 200 +/- 5mm ²

Name: AISRY NBC-5633 Paper and Cardboard thickness Tester Contact pressure 100 +/- 10kPa Contact area 200 +/- 5mm ²
Brand: AISRY
SKU: NB044575
Price: 398.0 USD
Availability: InStock

$ 398.00Ex works

Measurement range 0-4mm, contact pressure 100 +/- 10kPa, contact area 200 +/- 5mm ², measurement plane parallelism ≤ 0.0005mm, suitable for a variety of sheet material thickness accurate determination.

Model

NBC-5633

Get Quote

Category : Paperboard Thickness Gauge

Brand : AISRY

SKU : NB044575

Service :The delivery and service By NBCLab.Com

Overview

Paper and Cardboard thickness tester is a special instrument for measuring the thickness of paper and Cardboard Film. Its main technical indicators and performance parameters comply with the relevant provisions of GB4513 "Paper and Cardboard Film thickness Determination Method", which can be widely used in paper, Cardboard and Miscellaneous Film thickness.

Features

1. Measurement range 0~ 4mm 2. Contact pressure 100 +/- 10kPa 3. Contact area 200 +/- 5mm ² 4. Parallelism of measurement plane ≤ 0.0005mm 5. Indication Error +/- 0.0025mm/+/- 0.05% 6. Variability of indication ≤ 0.0025mm or ≤ 0.5% 7. resolution 0.01mm 8. weight about 5.5kg 9. Dimension 233 * 160 * 120mm

Principle

The instrument accurately measures the film thickness of paper, Cardboard and Miscellaneous sheet materials by applying a standard contact pressure (100 +/- 10kPa) on a specified contact area (200 +/- 5mm ²), ensuring that the measurement plane parallelism is less than or equal to 0.0005mm. High Accuracy Film thickness determination.

Applications

Paper, Cardboard, Sheet Material

Standards

QB/T 1035、QB/T 451.3、QB/T 1055、ISO 438、ISO 534

Measurement Range
0~4mm
contact pressure
100±10kPa
contact area
200±5mm²
Measurement plane parallelism
≤0.0005mm
Indication Error
±0.0025mm/±0.05%
Indication variability
≤ 0.0025Mm or ≤ 0.5%
resolution
0.01Mm optional
Dimension
233*160*120mm
weight
About 5.5kg

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
