Overview

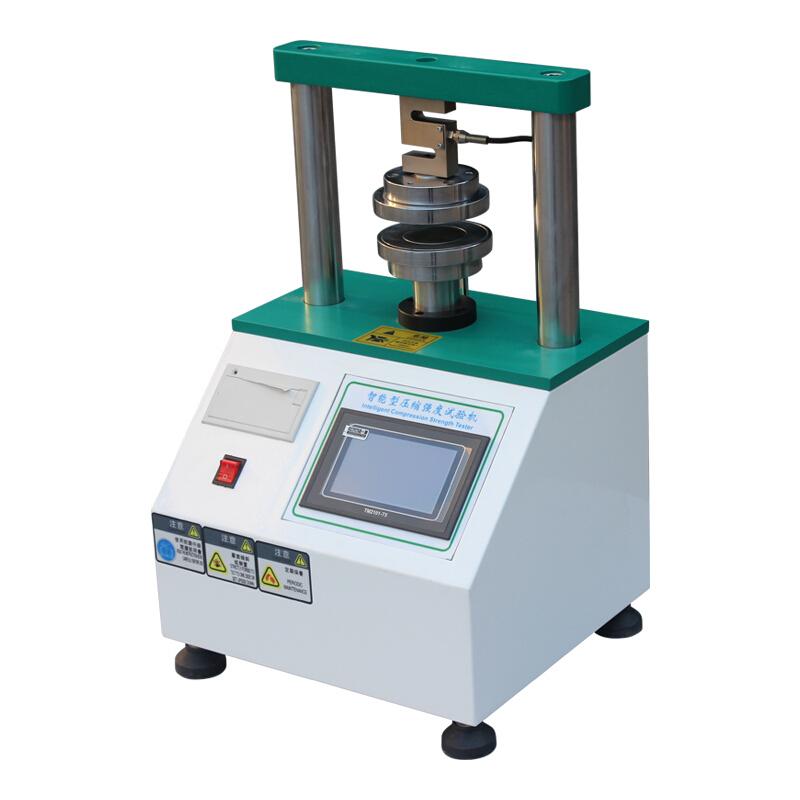

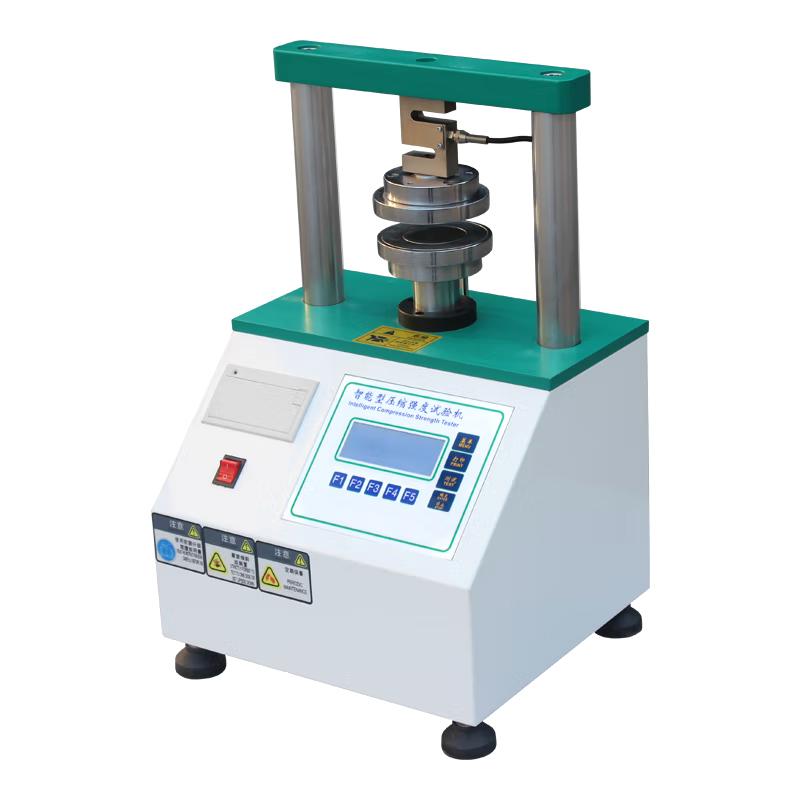

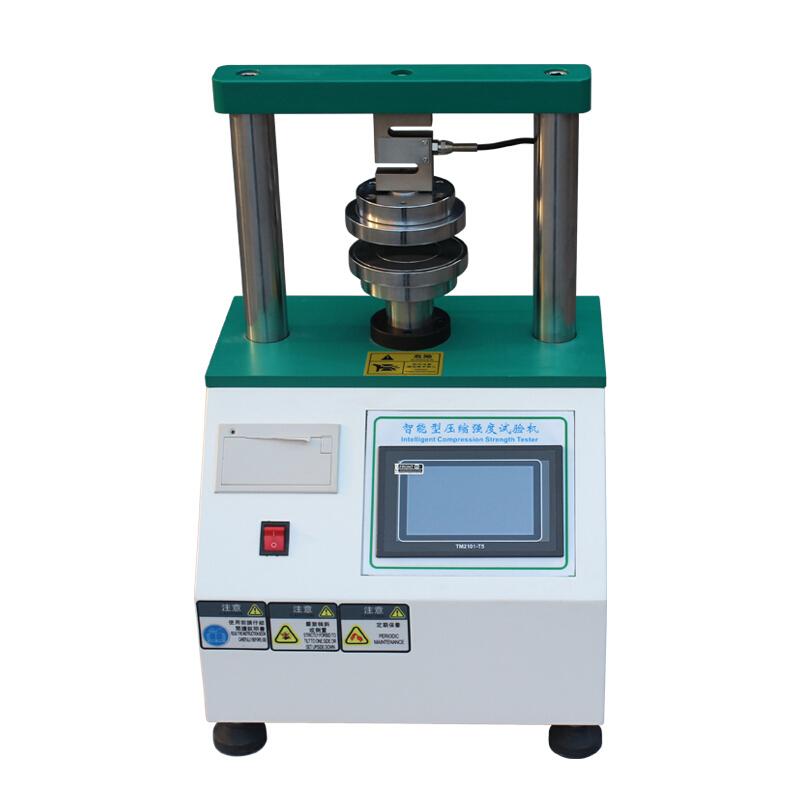

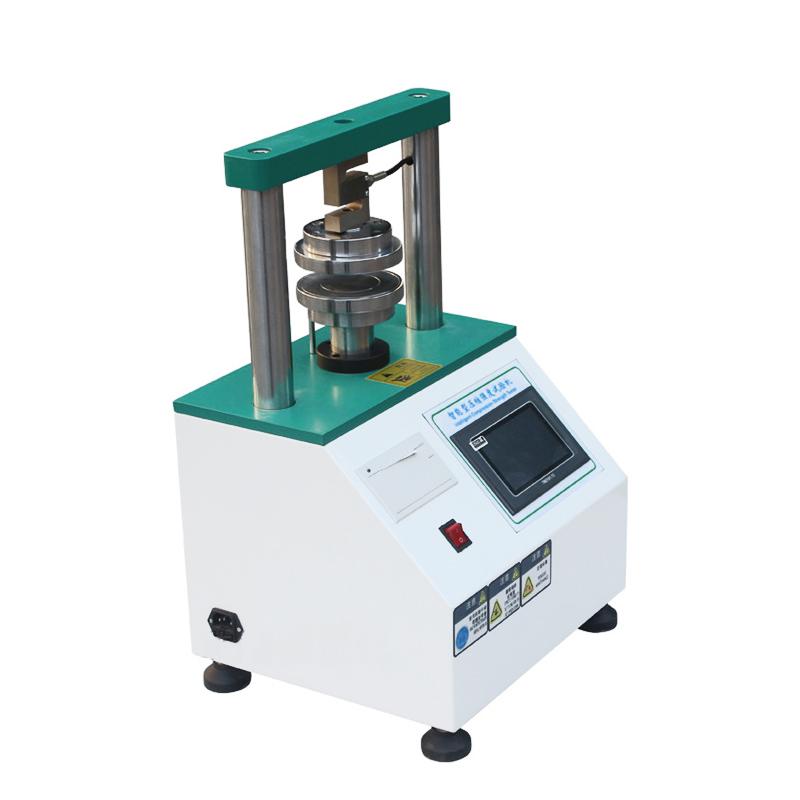

Smart Cardboard edge compression strength tester is a basic instrument for Cardboard/paper compressive strength performance testing, which belongs to paper Encasement testing instrument. Equipped with various fixture accessories, it can test the annular compression strength of the base paper, the flat compression strength of the Cardboard, the edge compression strength, the bonding strength and other tests, so that the paper production enterprises can control the production cost and improve the product mass. Its parameters and technical indicators comply with relevant standards.
Features
1. The system automatically calculates the ring compression strength and side compression strength, without the need for users to calculate manually, reducing workload and errors;
2. Comes with Encasement stacking test function, can directly set the force and time, and automatically stop after the test is completed;
3. After the test is completed, there is an automatic return function, which automatically judges the crushing force and automatically saves the test data;
4. Three adjustable speeds, full Chinese LCD display operation interface, a variety of units to choose from;
5. 20 test results can be recorded and preserved.
Principle
Different tests are carried out by equipping corresponding auxiliary devices: Cardboard ring compression strength test with ring compression test center plate and ring compression special Sampler; Corrugated Board edge compression strength test with side compression (gluing) sample Sampler and auxiliary guide block; Corrugated Board gluing (disbonding) strength test with Peel Strength test frame; Corrugated Board flat compression strength test with flat compression sample Sampler; and base paper laboratory after corrugation and flat pressure strength test.
Applications
Paper Manufacturers, Paper Encasement Testing
Standards
GB/T 2679.8-1995、GB/T 6546-1998、GB/T 6548-1998、GB/T 2679.6-1996、GB/T 22874
Steps
1. Equipped with corresponding assistive devices to conduct the required tests;
2. Set test parameters such as force and time.
3. Start the test and the system will run automatically.
4. Automatic shutdown, reset, and save data after the test is completed.
Notice
• Power supply voltage is 1, 220V/1.5A;
• Check the force range before use does not exceed 2KN;
• Correctly equip fixture accessories according to the test type;
• Note that Indication Error is +/- 1% to ensure test accuracy;
• Test data is automatically saved, but only 20 results are recorded, which needs to be processed in time.
