Overview

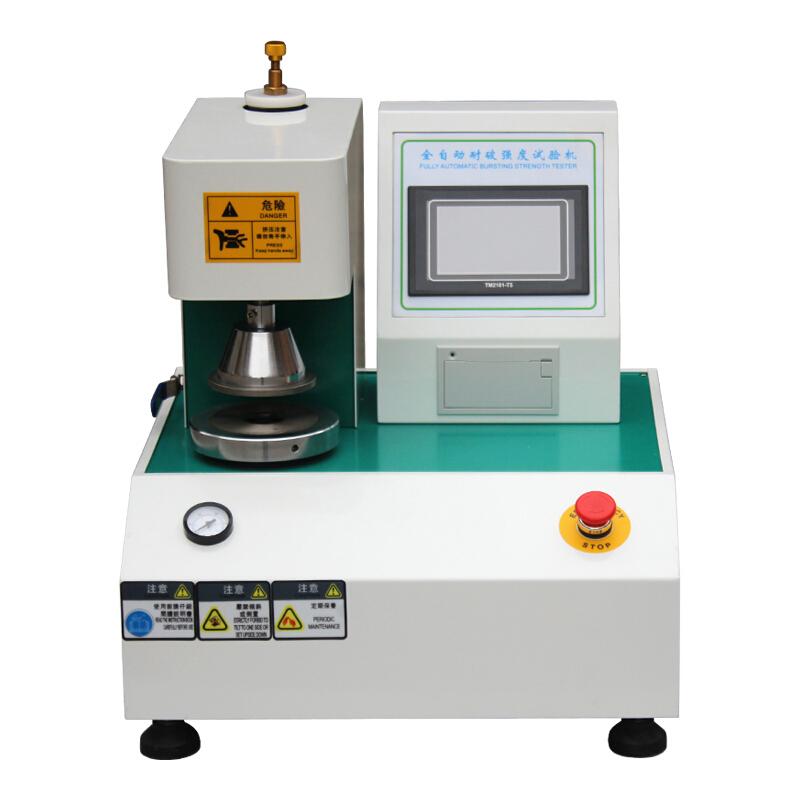

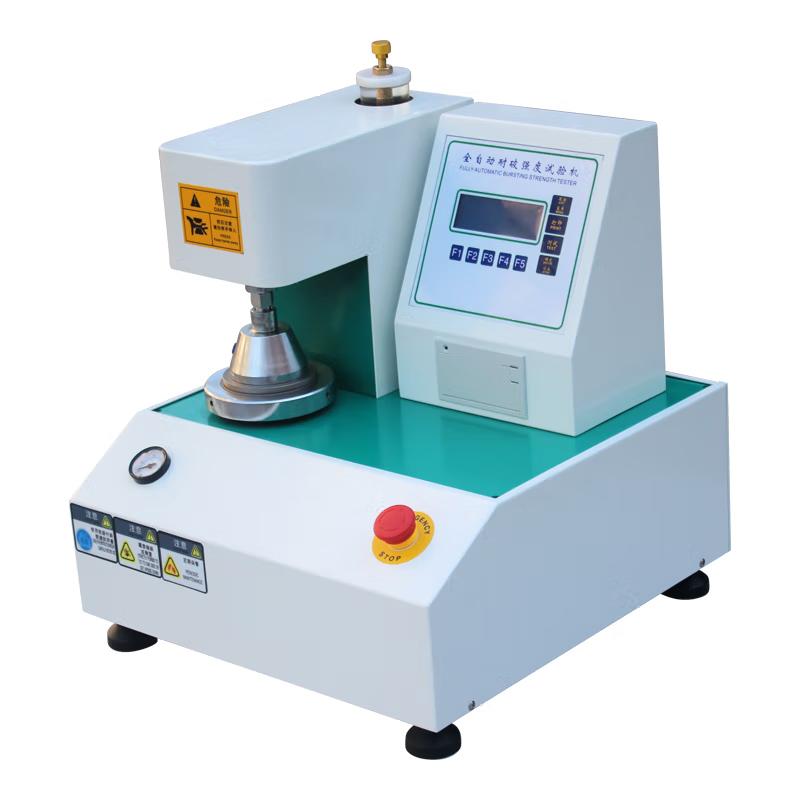

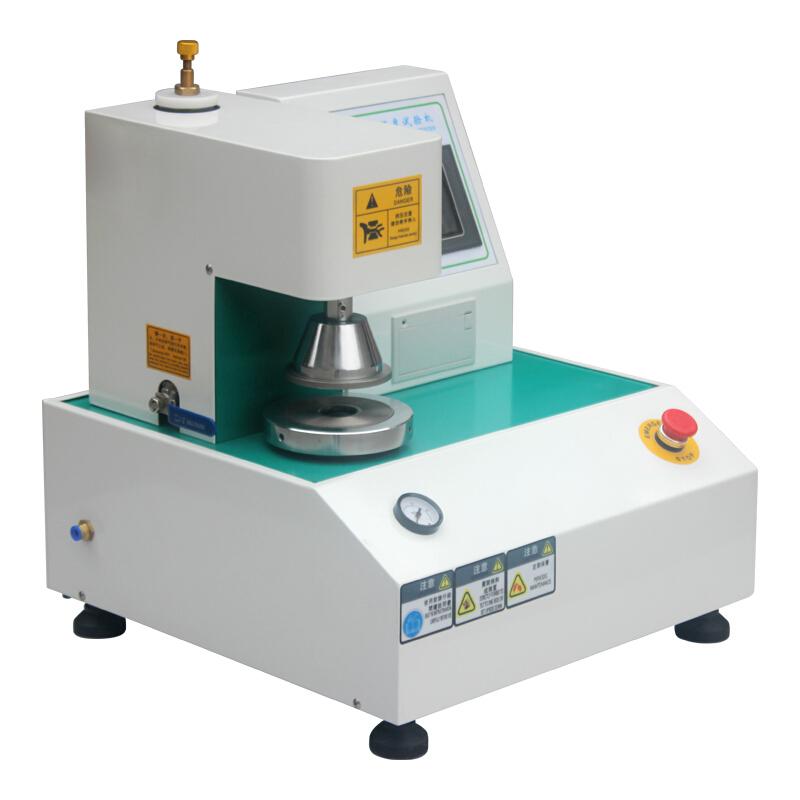

The fully automatic rupture strength tester adopts pneumatic clamping samples and liquid crystal display, which is suitable for the determination of bursting resistance of Cardboard, Corrugated Board and Miscellaneous sheet plates. The equipment complies with ISO2759 and GB/T1539 standards, adopts professional microcomputer detection and control system and digital signal processing technology to ensure accurate test data. It is equipped with a large-screen LCD graphic text display, a friendly menu-type man-machine interface, a high-mass micro printer and a complete and detailed test data report.
Features
1. After the Cardboard crumbles, it automatically stops and returns to the original position
2. Fully automatic one-click operation
3. Can store 50 sets of data simultaneously
4. With micro-printing, test results can be printed
5. Equipped with an emergency stop button to improve operation safety
6. Equipped with an air pressure gauge to monitor pressure at any time

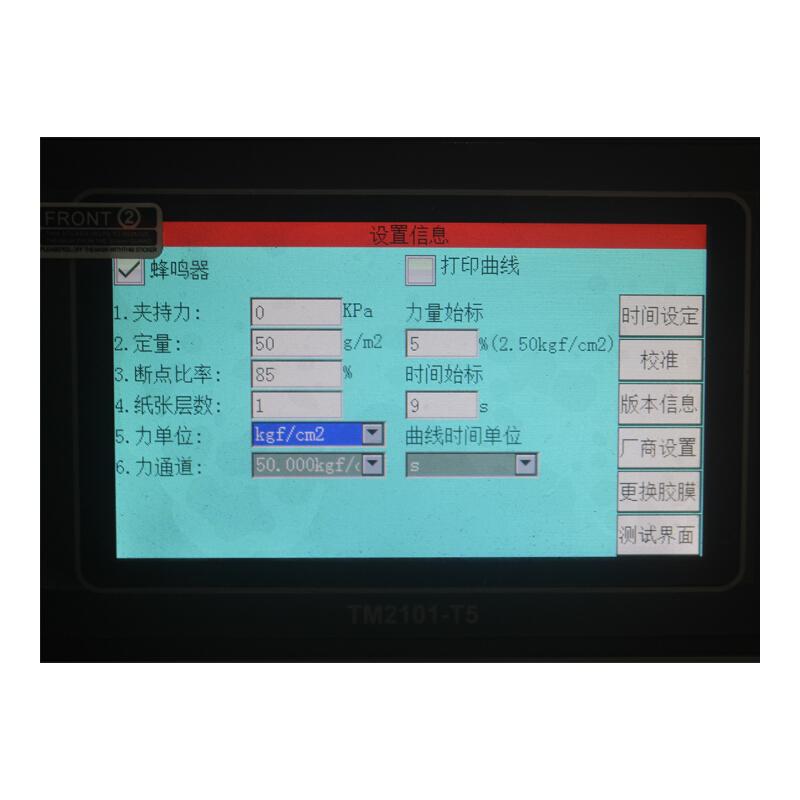

7. High definition LCD display
8. Change the traditional glycerin + water practice and use silicone oil instead. The machine is not easy to rust and prolong the life of the machine
Principle

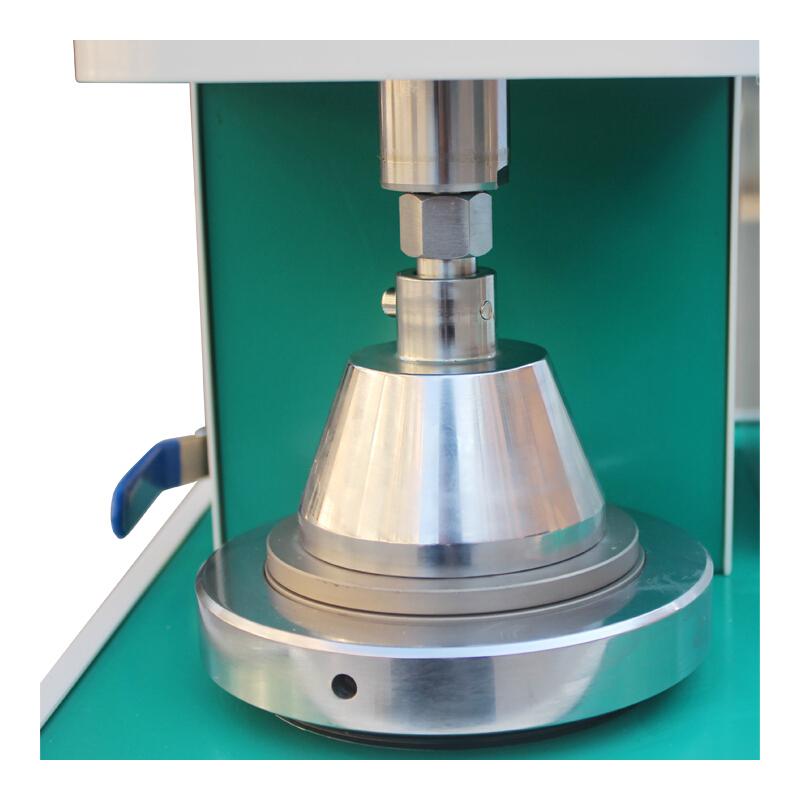

The fully automatic fracture strength tester uses a microcomputer detection and control system and digital signal processing technology to measure the burst resistance of the sample by pneumatic clamping. During the test, the oil feeding speed is 170 +/- 15mL/min, and the clamping force is greater than 690Kpa to ensure the accuracy and reliability of the test data.
Applications
Cardboard, Corrugated Board, Sheet
Standards
ISO 2759、GB/T 1539、QB/T 1057
Steps
1. Prepare the sample and place it in the equipment
2. Start fully automatic one-click operation
3. The device automatically tests and displays the results
4. Automatic shutdown and return to the initial position after the test is completed

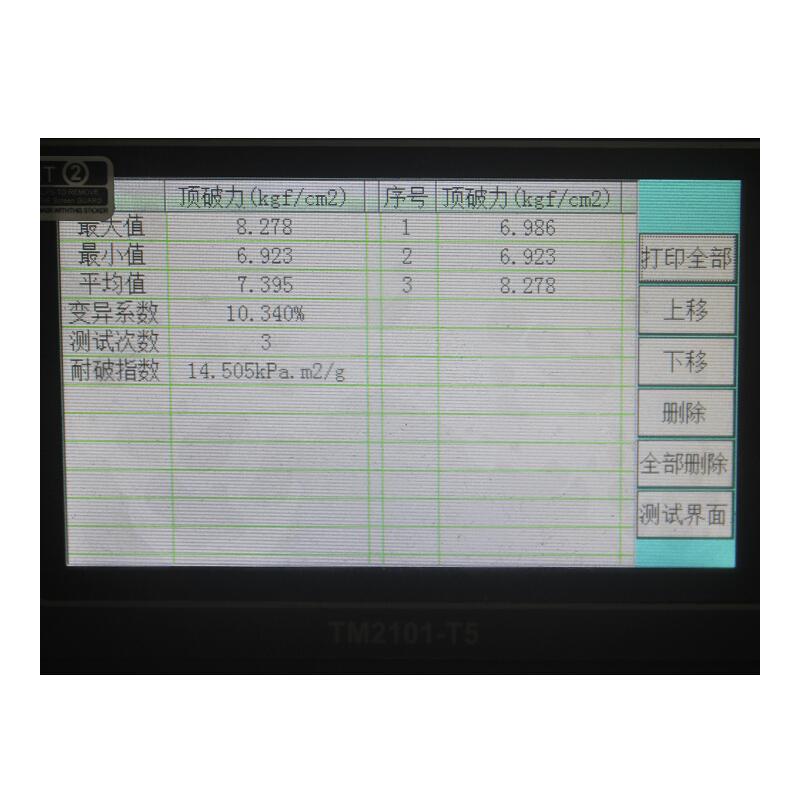

5. Print test results via a micro-printer
Notice
• Pay attention to safety during operation and use the emergency stop button to prevent accidents
• Regularly check the air pressure gauge to ensure that the pressure is normal
• Use silicone oil instead of traditional glycerin + water to prolong the life of the machine
• Power supply voltage AC220V +/- 10%, 50Hz
• The test range is within 250~ 5600kPa, avoid using beyond the range
