AISRY NBC-XJJ-11B Digital Cantilever Impact Tester Cantilever 11J Impact Energy

Name: AISRY NBC-XJJ-11B Digital Cantilever Impact Tester Cantilever 11J Impact Energy
Brand: AISRY
SKU: NB044636
Price: 1040.0 USD
Availability: InStock

$ 1040.00Ex works

Impact speed 3.5m/s, cantilever beam impact energy 11J, semi-automatic control to improve operating efficiency, dedicated LCD screen real-time display of information, support printing output.

Model

NBC-XJJ-11B

Get Quote

Category : Other Instruments

Brand : AISRY

SKU : NB044636

Service :The delivery and service By NBCLab.Com

Overview

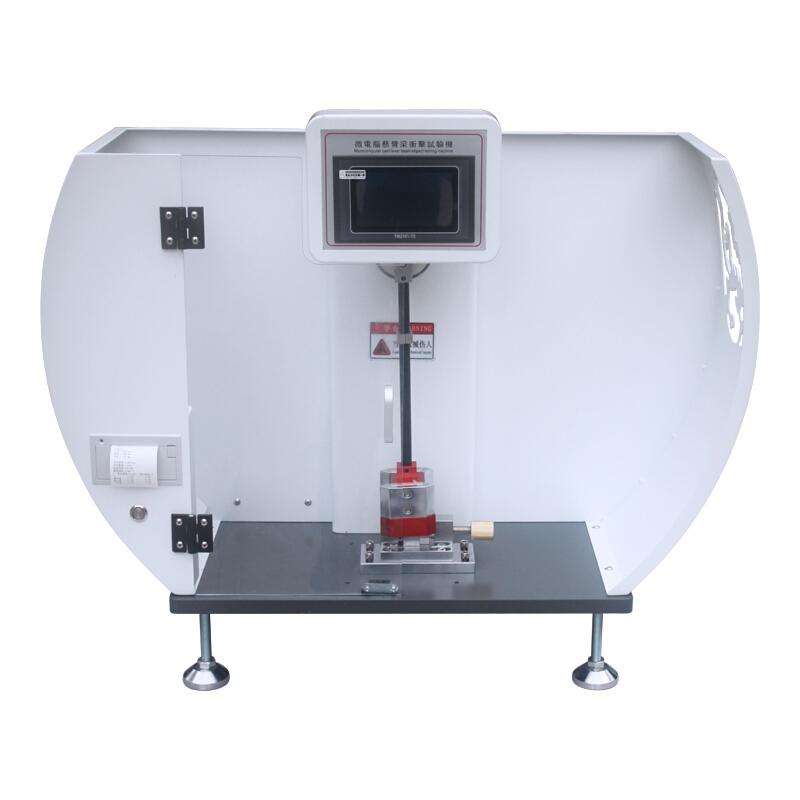

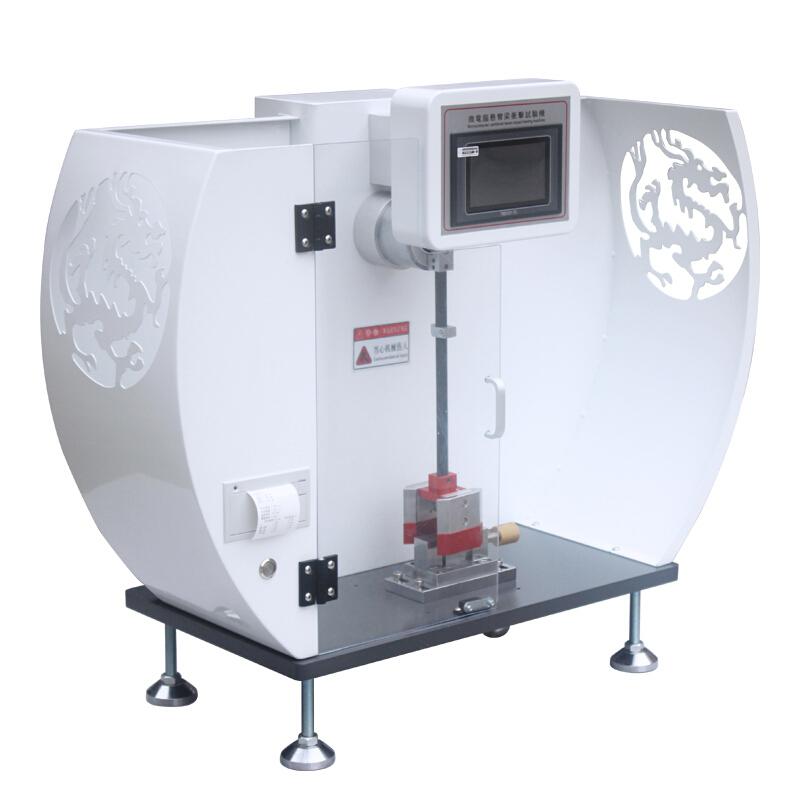

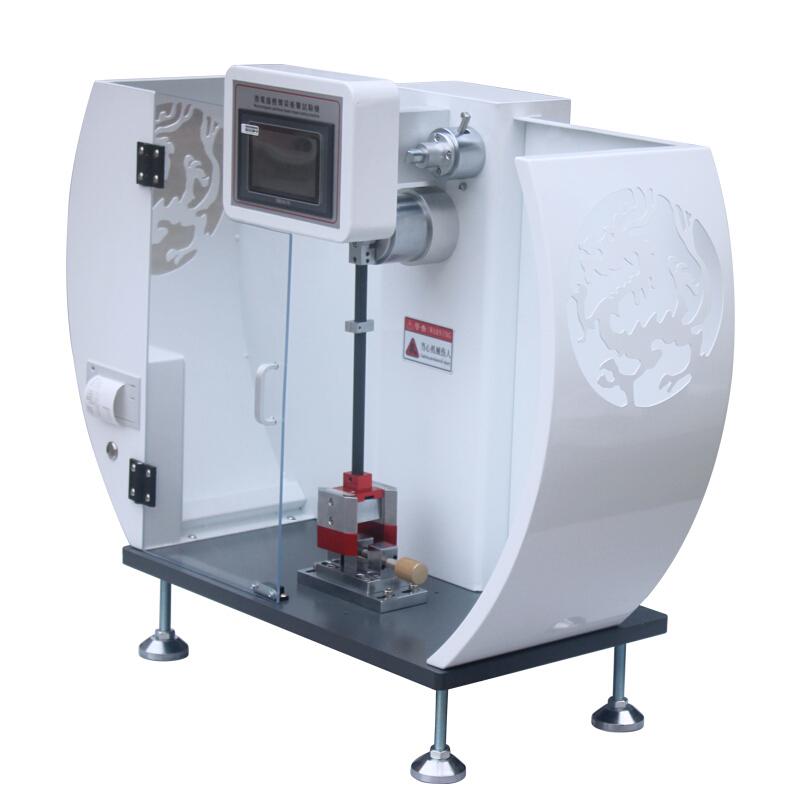

Digital Cantilever Beam Impact Tester NBC-XJJ-11B is a factory direct product used to test the impact performance of non-metallic materials such as hard plastics, nylon, hard rubber, electrical insulation materials under dynamic load. It is a testing instrument required by Non-metallic material manufacturers and Quality control departments, and an indispensable testing instrument for R & D institutions to conduct New material research. XBL series digital cantilever beam Impact Tester can print out test results and other functions.

Features

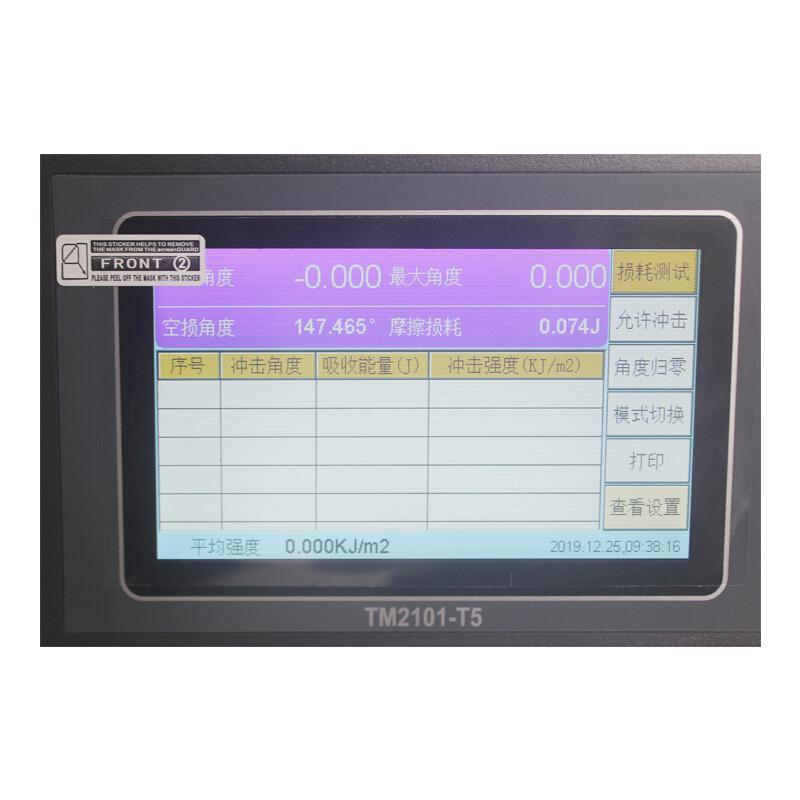

1. This machine adopts semi-automatic control, which is easy to operate and has high work efficiency. 2. The dedicated LCD screen equipped with this machine can display instant information. 3. Printable output.

Principle

The data does not mention the specific working principle.

Applications

The information does not mention specific application fields.

Standards

ISO 180-2000 "Determination of Impact Strength of Plastic-Hard Material Cantilever Beams", GB/T 1843-2008 "Hard Plastic Cantilever Beams", JB/T 8761-1998 "Plastic Cantilever Beams" Impact Tester ", ASTM D256-2010" Test Method for Determination of Impact Strength of Plastic IZOD Pendulum "

Steps

The information does not mention the specific operation steps.

Notice

The information did not mention specific precautions.

Impact velocity
3.5 m/s
Distance from the center of the pendulum axis to the center of the specimen
327mm
Blade angle
75°
Blade fillet radius
0.8mm
blade rake angle
5°
blade back angle
10°
Specimen Type and Size
ISO180-2000 or GB/T 1843-2008: Type 1 specimen: 80 * 10 * 4; Type 2 specimen: 63.5 * 12.7 * 6.4; Type 3 specimen: 63.5 * 12.7 * 3.2
Impact energy
Cantilever beam 11J, 5.5J or maximum impact energy specified by user
Pendulum lift angle
150°
Power supply Voltage
AC 220V 50Hz
Dimension
360*240*680mm
Net weight
Approx. 80 kg
