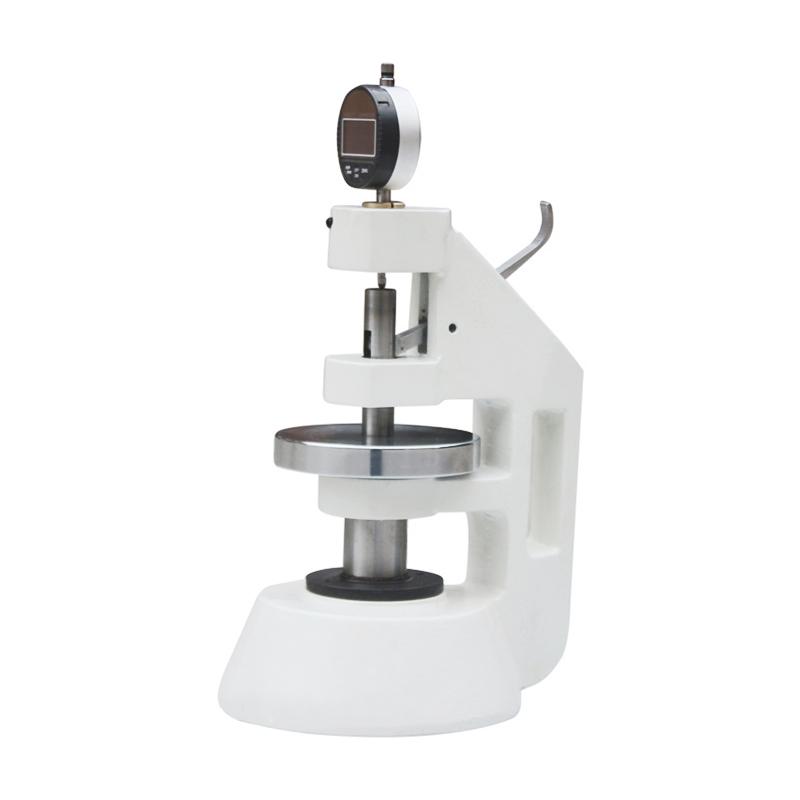

AISRY NBC-5634 Cardboard thickness Tester paper, contact pressure 20 +/- 0.5kpa

Name: AISRY NBC-5634 Cardboard thickness Tester paper, contact pressure 20 +/- 0.5kpa
Brand: AISRY
SKU: NB044638
Price: 445.0 USD
Availability: InStock

$ 445.00Ex works

Measurement range 0-20mm, resolution 0.01mm, contact pressure 20 +/- 0.5kpa to ensure Measurement accuracy, in line with a number of international standards, suitable for all kinds of sheet material thickness detection.

Model

NBC-5634

Get Quote

Category : Paperboard Thickness Gauge

Brand : AISRY

SKU : NB044638

Service :The delivery and service By NBCLab.Com

Overview

Paper and Cardboard thickness tester is a special instrument for paper and Cardboard Film thickness measurement. Its main technical indicators and performance parameters comply with the relevant provisions of GB4513 "Paper and Cardboard Film thickness determination method", which can be widely used in paper, Cardboard and Miscellaneous film thickness measurement.

Features

1. Measurement range, up to 0~ 20mm 2. Accurate contact pressure of 20 +/- 0.5kpa 3. Contact area standard, 10 +/- 0.2cm ² 4. High parallelism of measurement surface, ≤ 0.035mm 5. Indication Error small, only +/- 0.03mm 6.High resolution, up to 0.01mm 7. Strong environmental adaptability, temperature (20 +/- 10) ℃, humidity < 85%

Principle

The instrument applies a standard contact pressure (20 +/- 0.5kpa) on the standard contact area (10 +/- 0.2cm ²) to measure the film thickness of paper, Cardboard or Miscellaneous sheet materials, using High Accuracy Sensor and measurement system to ensure parallelism ≤ 0.035mm.

Standards

QB/T 1035、QB/T 451.3、QB/T 1055、ISO 438、ISO 534

Measurement Range
0~20mm
contact pressure
20±0.5kpa
contact area
10±0.2cm²
Measurement plane parallelism
≤0.035mm
Indication Error
±0.03mm
Operating environment
Temperature (20 +/- 10) ℃, humidity < 85%
resolution
0.01Mm optional

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
