Overview

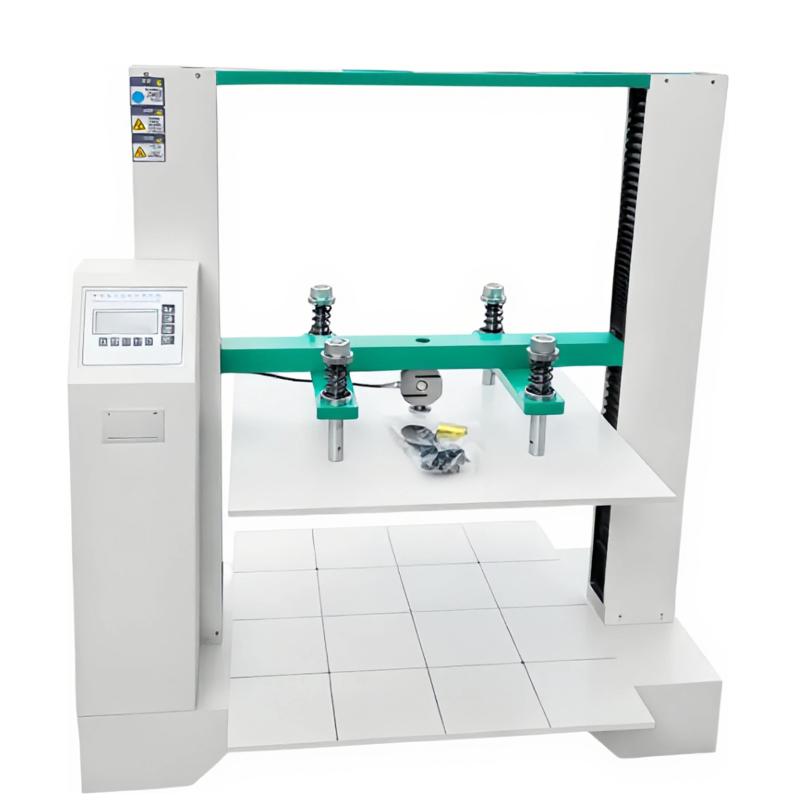

NBC-1000 carton Compressive tester is the basic instrument for corrugated box compressive strength performance testing, which is suitable for all kinds of corrugated boxes compressive strength test, standard test and stacking strength test.
Features
1. After the test is completed, there is an automatic return function, which automatically judges the crushing force and automatically saves the test data
2. Three settable speeds, full Chinese LCD display operation interface, a variety of units to choose from
3. You can enter relevant data and automatically convert the compressive strength, with its own Encasement stacking test function; you can directly set the force and time, and automatically stop after the test is completed
4. Three working modes: strength test, fixed value test, and stacking test
5. 32-bit embedded processing chip with fast instruction cycle
6. Measurement accuracy > 4 gears, resolution > 20000 yards
7. Use software coefficients to calibrate files to effectively correct Sensor linearity
8, 4 times the frequency photoelectric encoder forward and reverse bidirectional counting, high resolution
9, 192 × 64 dot matrix large screen monochrome LCD display
10. 1 RS232 serial port and 1 print parallel port
11 or 8 control buttons, easy to operate
12. The maximum power is automatically displayed and memorized at the end of the experiment
13. Up to 20 test results can be recorded
Principle
The testing machine applies pressure to the corrugated box through AC variable frequency motor drive controller and High Accuracy ball screw mechanical system, uses 32-bit embedded processing chip and strain measurement system to monitor the pressure change in real time, automatically judges the crushing force and saves the data.
Applications
Corrugated box compressive strength performance testing
Standards
GB/T 4857.4-92、GB/T 4857.3-92
Steps
1. Set the test mode (strength test, fixed value test or stacking test)
2. Select the test speed
3. Set force or time parameters
4. Start testing
5. Automatically shut down and save data after the test is completed
Notice
• Make sure the power supply is AC220V/50HZ~ 60HZ before use
• Pay attention to the status of overload protection and limit protection devices
Do not touch moving parts during testing
• Periodic Sensor Calibration
• Keep equipment clean and drying
