Overview

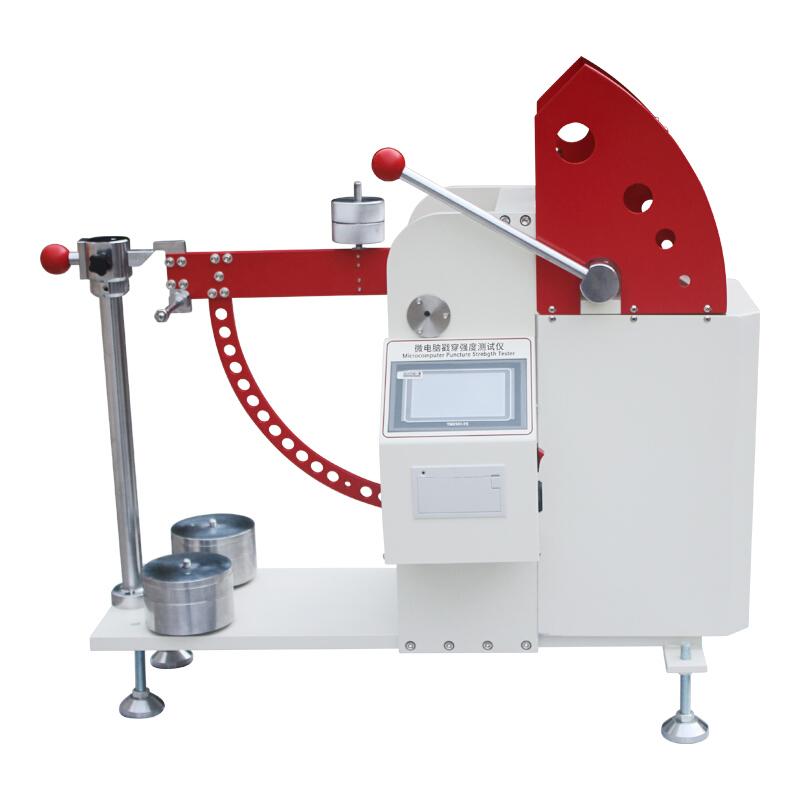

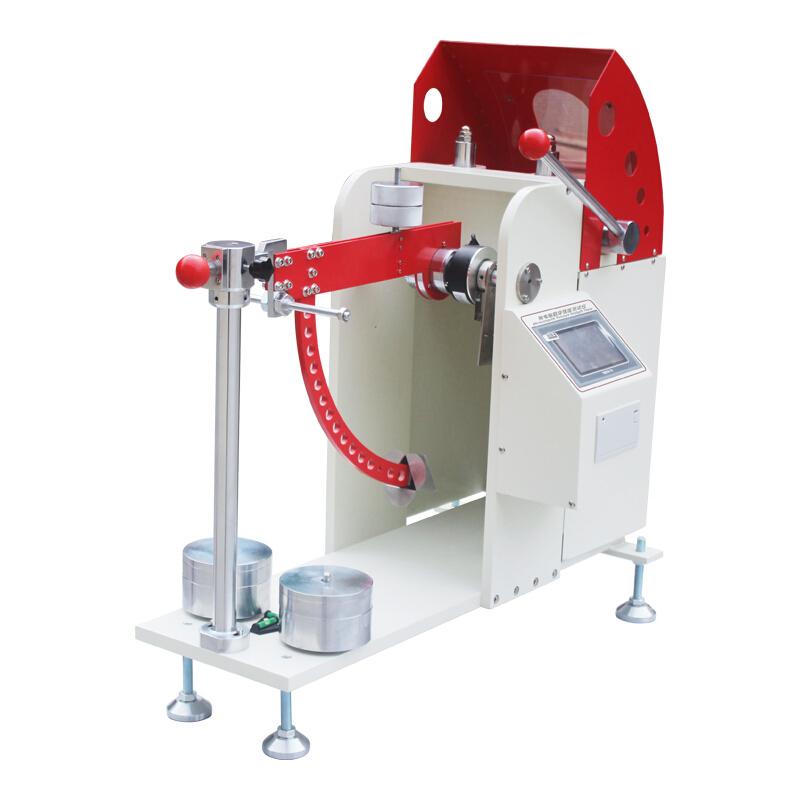

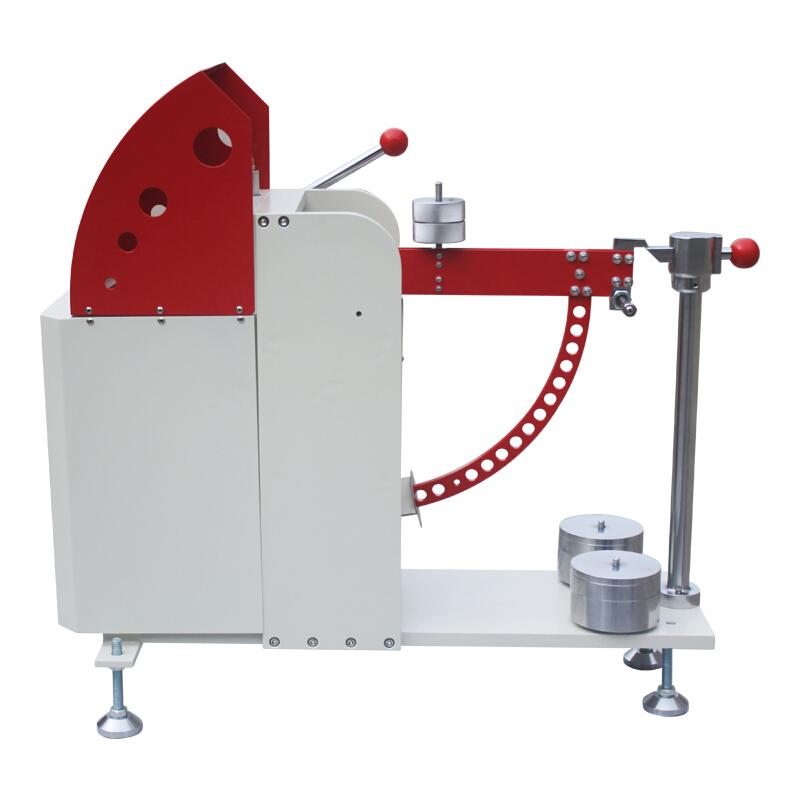

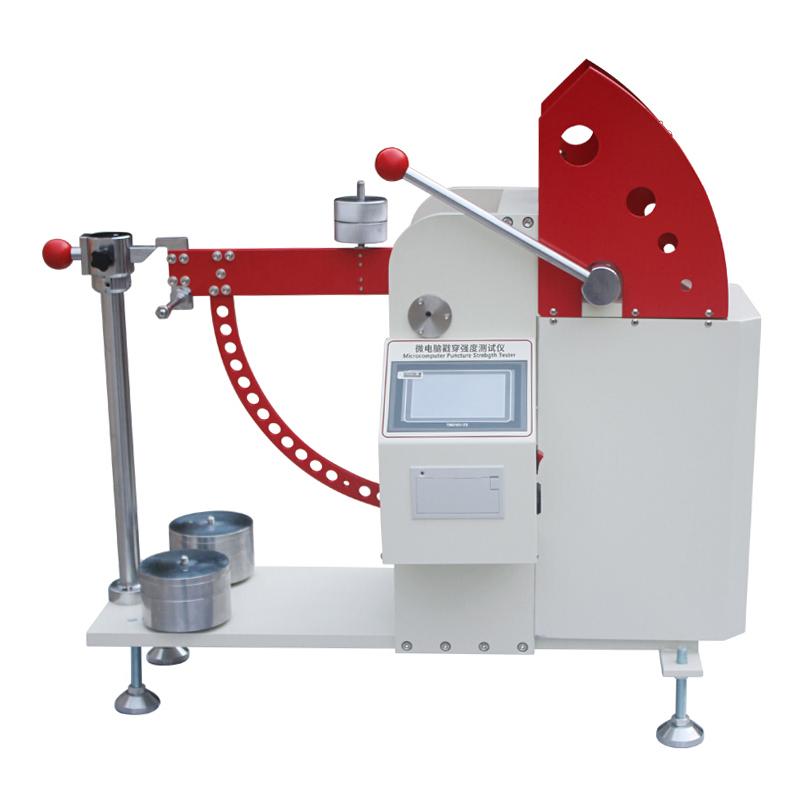

Microcomputer intelligent Puncture strength tester is a special test instrument for Corrugated Board anti-puncture performance. It has the characteristics of fast pressing, automatic reset of the operating handle and reliable safety protection. It has a wide range of applications and is an indispensable and commonly used instrument for Cardboard, carton production, scientific research and commodity inspection.
Features
1. Fully computer-controlled technology, open architecture, high automation program, simple and convenient operation, safe and reliable.
2. Fully automatic measurement, intelligent judgment function, the operating system displays the measurement results in real time.
3. Automatic measurement, statistics, printing test results, and data saving function.
4. Touch screen operating system, configure Chinese graphical menu display operating system, easy to use.
5. High-speed micro printer, high printing speed, easy to use, low failure.
6. Mechatronics Modern Design Concept, Compact Structure, Appearance, Easy Maintenance.
Principle
This instrument is designed according to ISO3036 (Cardboard - Determination of Piercing Strength) and GB2679.7 "Cardboard Piercing Strength Determination Method", and pierces the Corrugated Board through a cone to measure its anti-piercing performance.
Applications
Cardboard, carton production, scientific research, commodity inspection
Standards
ISO3036、GB2679·7
Steps
1. Turn on the power supply and start the instrument.
2. Select the test parameters through the touchscreen operating system.
3. Place the Cardboard sample to be tested.
4. Start the automatic measurement program.
5. The instrument automatically displays, saves, and prints the test results.
Notice
• Power supply voltage AC220V +/- 10% 2A 50HZ.
The working environment temperature should be maintained at 5~ 35 ℃, the relative humidity should not exceed 85%.
• Ensure that the sample is firmly placed during measurement.
• Regularly check the friction sleeve resistance of the instrument to ensure that it is less than 0.25J.
• Avoid using the instrument outside the Measurement range (1~ 48J).
