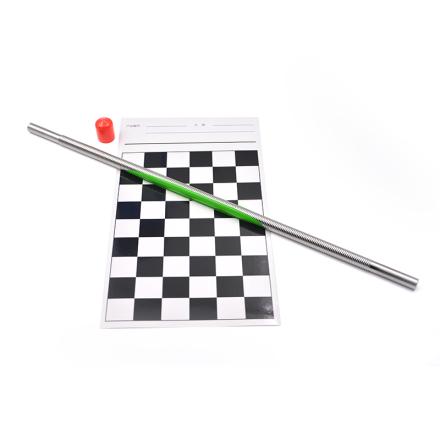

RDS 22 #1/4\ "Applicator Rod wire-wound Mayer Rods wet film thickness 50.3μm

$ 158.00Ex works

Wire-wound structure ensures 0.1 micron High Accuracy, wet film thickness 50.3 μm, stainless steel material is durable and easy to clean, and the wide-Rod Film Applicator achieves uniform coating.

Model

Get Quote

Category : Coating Rod

Brand : RDS

SKU : NB004482

Service :The delivery and service By NBCLab.Com

Overview

American RDS Mayer Rods is famous in the coating rod industry, among which RDS #22 Mayer Rods can be prepared with a wet film thickness of 50.3 microns. Wire-wound Mayer Rods inherits the traditional Mayer Rod principle and is favored by industry users with High Accuracy and high quality mass of 0.1 microns.

Features

1. Wire-wound production process, inheriting the traditional Mayer Rod principle 2. High Accuracy of 0.1 Micron 3. High-quality mass favored by most users in the industry 4. Can be prepared 50.3 micron wet film thickness 5. Stainless steel material, strong durability

Principle

Through different grooves, ink control is applied to film, paper and other substrates by roller painting and scratch coating. Universal for High Accuracy wire-rod film applicator, Coating is uniformly applied to the surface of the substrate to form a flat, uniform thickness coating.

Applications

High Accuracy wire-rod film applicator

Steps

1. Select the appropriate Mayer Rods model 2. Coatings are ready 3. Coating Spreader on the substrate surface by roller painting or scraping 4. Ensure that the coating is flat and the thickness is consistent 5. Clean and maintain in time after completing the Spreader

Notice

• Wire-wound coating rod should be cleaned to avoid impurity blockage • Confirm that the coating rod model matches the required wet film thickness before use • Ensure that the surface of the substrate is flat and clean during operation • Regular maintenance to ensure Spreader accuracy • Wash in time after use to avoid Coating residue

Production process
wire-wound
wet film thickness
50.3μm
rod diameter
6.35mm
Total length
400mm
application width
300mm
Grip Width
50+50mm
material
stainless steel
wire diameter
0.56mm

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
