Overview

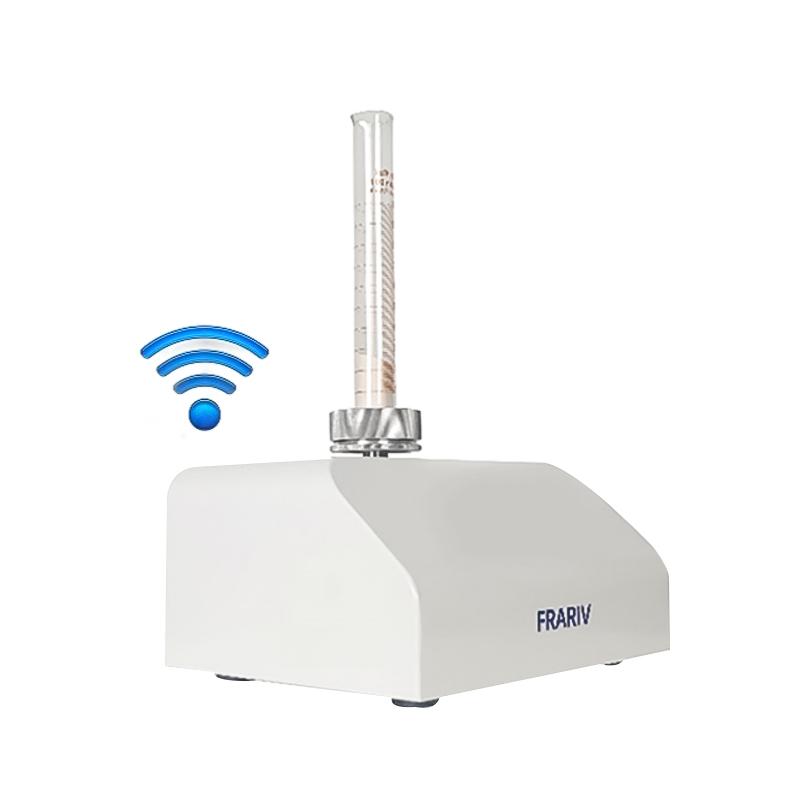

FRARIV C100S smart tap density meter is a professional instrument for measuring the vibration density of powders, suitable for metal powders, Non-metallic powders and other materials. The instrument has a firm structure, beautiful appearance, easy operation, High Accuracy and Reliability.
Features
1. Support mobile end, desktop browser or control through Android APP, one-click start and stop vibration test
2. Long Life, High Reliability Motor Components with Start-Stop Response Capability
32-Bit embedded RISC microprocessor, featuring low cost, high performance, and low power consumption
4. Use Customized Embedded Operating System to Enhance System Stability and Software Expansion
5. The instrument has a solid structure, beautiful appearance and easy operation
Principle
The swirl/spin method is used to vibrate the powder samples at a fixed frequency of 250 rpm and a vibration amplitude of 3 mm to measure the vibrating density. Embedded microprocessor and custom operating system are used to control the vibrating process to ensure test accuracy and Repeatability.
Applications
Metal Powder, Non-metallic Powder, Chemical Industry, New Energy, New material, Research and Teaching
Standards
GB/T 21354-2008/ISO 3953:1993、GB/T 5162-2006/ISO 3953:1993
Steps
1. Connect the instrument through mobile end, desktop browser or Android APP
2. Select the appropriate measuringflask (25mL or 100mL) to load the powder sample
3. One-button start vibration test
4. The instrument automatically completes the vibration process
5. After the test is completed, stop with one click and read the result
Notice
• Ensure that the working power supply is AC220V 50Hz
• Select the appropriate measuringflask volume according to sample characteristics
• Regularly check the running status of motor components
• Keep the instrument clean to avoid dust accumulation
• Pay attention to safety during operation to avoid the risk of electric shock
