Overview

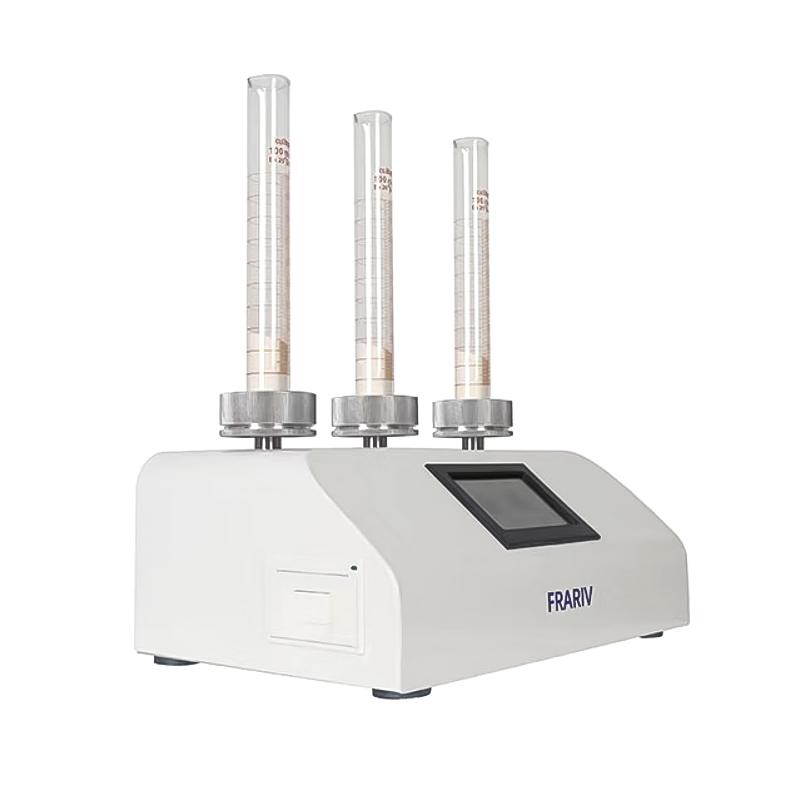

FRARIV C100A smart tap density meter is a precision instrument dedicated to powder density measurement, suitable for metal powder, Non-metallic powder, chemical industry, new energy, New material and scientific research and teaching. The instrument adopts advanced technology, has High Accuracy measurement and convenient operation characteristics, and can meet a variety of industry standard requirements.
Features
1.4.3 inch touch screen, providing convenient, simple and natural human-machine interaction;
2. Long Life, High Reliability Motor Components with Start-Stop Response Ability;
Adopting a 32-bit embedded RISC microprocessor, it features low cost, high performance, and low power consumption.
4. Customized embedded operating system to enhance System Stability and Software Expansion;
5. Lightweight, high-performance, highly reliable, configurable GUI to enhance user experience;
6. Built-in embedded micro-receipt printer;
7. The calculation results are accurate to 3 decimal places.
8. Excellent network connection capability, support remote software upgrade and customization requirements;
9. Support electronic report generation and download, including Excel and PDF formats.
10. The instrument has a solid structure, beautiful appearance, and easy operation.
Principle
The instrument uses swirl/spin to vibrate powder samples at a fixed frequency of 250 rpm and a vibration amplitude of 3 mm. The vibration density is accurately calculated by the built-in microprocessor, and the result can be accurate to 3 decimal places.
Applications
Metal Powder, Non-metallic Powder, Chemical Industry, New Energy, New material, Research and Teaching
Standards
GB/T 21354-2008/ISO 3953:1993、GB/T 5162-2006/ISO 3953:1993
Steps
Prepare the sample and select the appropriate measuringflask (25mL or 100mL);
2. Set the test parameters through the touch screen.
3. Start the instrument for swirling/spinning;
4. The instrument automatically calculates and displays the density results;
5. Use the built-in printer to print reports or export electronic reports.
Notice
• Ensure that the working power supply is AC220V 50Hz;
• Check whether the measuringflask is intact before use;
• Avoid overloading and ensure repeatability error ≤ 1%;
• Regularly check the printer paper roll to ensure that the paper compartment is ≤ 30mm;
• Pay attention to software upgrade security when network connection;
• Follow the instrument structure requirements during operation to avoid improper use.
