Overview

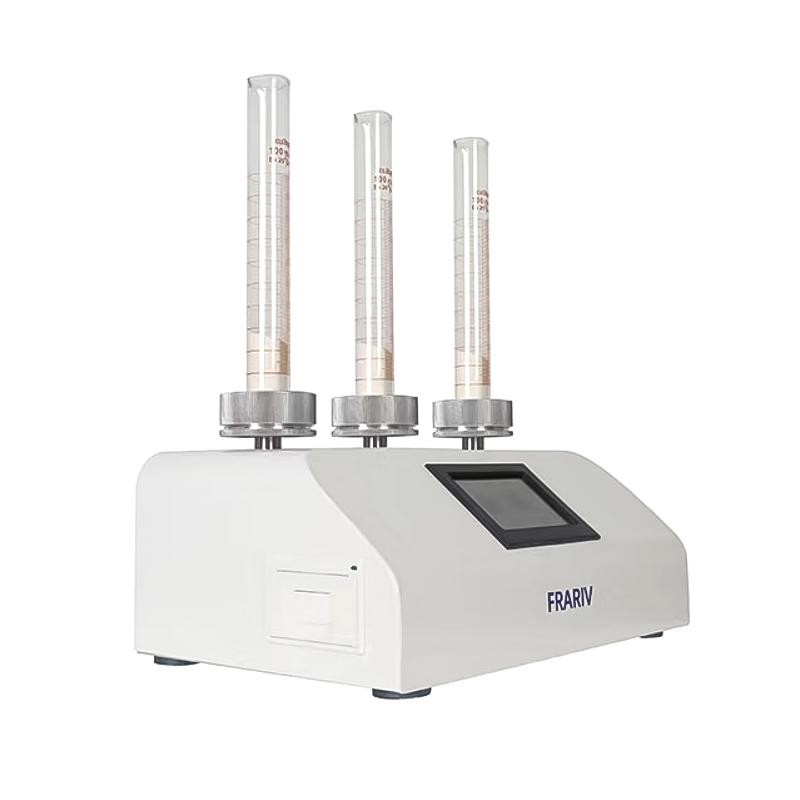

FRARIV C300A smart tap density meter is a precision instrument specially used for the measurement of vibration density of metal powder, Non-metallic powder and other materials. The instrument adopts advanced technology, has High Accuracy measurement and convenient operation characteristics, and is suitable for many fields such as chemical industry, new energy, New materials and scientific research and teaching.
Features
1.4.3 inch touch screen, providing convenient, simple and natural human-machine interaction
2. Long Life, High Reliability Motor Components with Start-Stop Response
32-Bit embedded RISC microprocessor, featuring low cost, high performance, and low power consumption
4. Customized Embedded Operating System to Enhance System Stability and Software Expansion
5. Lightweight, low resource consumption, high performance, high reliability, configurable and beautiful GUI interface
6. Built-in embedded micro-receipt printer
7. Calculation results are accurate to 3 decimal places
8. Excellent network connection capability, support remote software upgrade and customization requirements
9. Support electronic report generation and download, compatible with Excel and PDF formats
10. The instrument has a solid structure, beautiful appearance and easy operation
Principle
The vibration density meter adopts the swirl/spin vibration mode, and realizes the vibration movement through the motor drive. The vibration frequency is 250 rpm, and the vibration amplitude is 3mm. The instrument precisely measures the volume change of the powder during the vibration process, and combines the computing power of the built-in microprocessor to accurately determine the vibration density of the material.
Applications
Metal Powder, Non-metallic Powder, Chemical Industry, New Energy, New material, Research and Teaching
Standards
GB/T 21354-2008/ISO 3953:1993、GB/T 5162-2006/ISO 3953:1993
Steps
1. Connect the AC220V 50Hz power supply to start the instrument
2. Set test parameters through 4.3-inch touchscreen
3. Select the appropriate measuringflask (25mL or 100mL) into the powder to be tested
4. Start the vibration program, and the instrument performs swirling/spinning at a frequency of 250 rpm
5. View the measurement results on the display screen after the test is completed
6. Use the built-in printer to print test reports or export electronic reports
Notice
• Make sure the power supply is AC220V 50Hz before use
• Choose the appropriate measuringflask volume (25mL or 100mL) according to the test requirements
• Pay attention to keep the working environment of the instrument clean to avoid dust entering the interior
• Regularly check the paper Balance of the printer to ensure the normal printing function
• Pay attention to safety during operation and avoid touching moving parts
• The repeatability error of the test results should be controlled within the range of ≤ 1%
