Overview

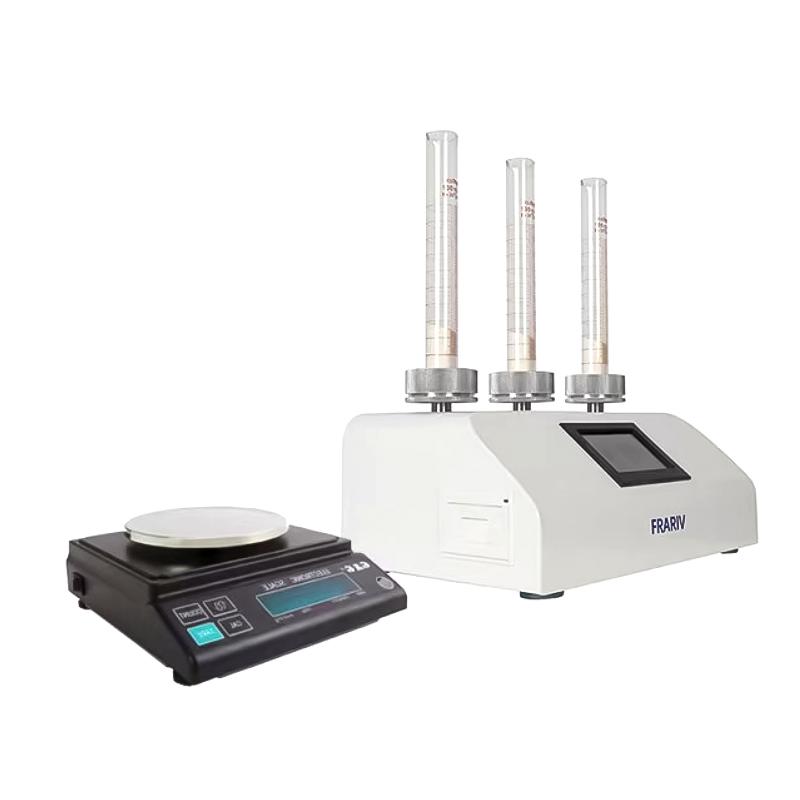

FRARIV C200B smart tap density meter is a professional testing instrument suitable for metal powder, Non-metallic powder, chemical industry, new energy, New material and scientific research and teaching. The instrument adopts advanced technology, has the characteristics of High Accuracy measurement and convenient operation, and can automatically read powder sample mass and generate electronic reports.
Features
1.4.3 inch touch screen, providing convenient, simple and natural human-machine interaction
2. Long Life, High Reliability Motor Components with Start-Stop Response
3. Can automatically read the powder sample mass from the electronic scale, improve the convenience of operation
4. Adopt 32-bit embedded RISC microprocessor, featuring low cost, high performance, and low power consumption
5. Use Customized Embedded Operating System with Strong System Stability and Software Expansion Capability
6. Adopt a lightweight, low-resource, high-performance, highly reliable, configurable, and beautiful GUI interface
7. Built-in embedded micro-receipt printer
8. Accurate measurement results to 3 decimal places
9. Excellent network connection capability, support software remote upgrade and customization requirements
10. Support electronic report generation and download, support excel and pdf formats
11. The instrument has a solid structure, beautiful appearance and easy operation
Principle
The vibrating density meter is used to vibrate the powder sample with a vibrating frequency of 250 rpm and a vibration amplitude of 3 mm by swirl/spin. The instrument automatically reads the mass of the powder sample, and obtains the vibrating density value through precise calculation. The measurement result is accurate to 3 decimal places.
Applications
Metal Powder, Non-metallic Powder, Chemical Industry, New Energy, New material, Research and Teaching
Standards
GB/T 21354-2008/ISO 3953:1993、GB/T 5162-2006/ISO 3953:1993
Steps
Prepare the powder sample and select the appropriate measuringflask (25mL or 100mL)
2. Place the sample in a measuringflask
3. Set test parameters through the touch screen
4. Start the instrument for vibration test
5. The instrument automatically reads the mass and calculates the density
6. View the test results and print the report through the built-in printer
7. Downloadable electronic report (excel or pdf format)
Notice
• Please confirm that the power supply is AC220V 50Hz before use
• Choose the correct measuringflask volume (25mL or 100mL) for testing
• Ensure that powder samples meet testing requirements
• Regularly check the printer paper to ensure that the roll length does not exceed 9.42m.
• Keep the instrument clean to avoid dust accumulation affecting Measurement accuracy
• Pay attention to data security when network connection
• Repeatability errors should be controlled within the range of ≤ 1%
