Overview

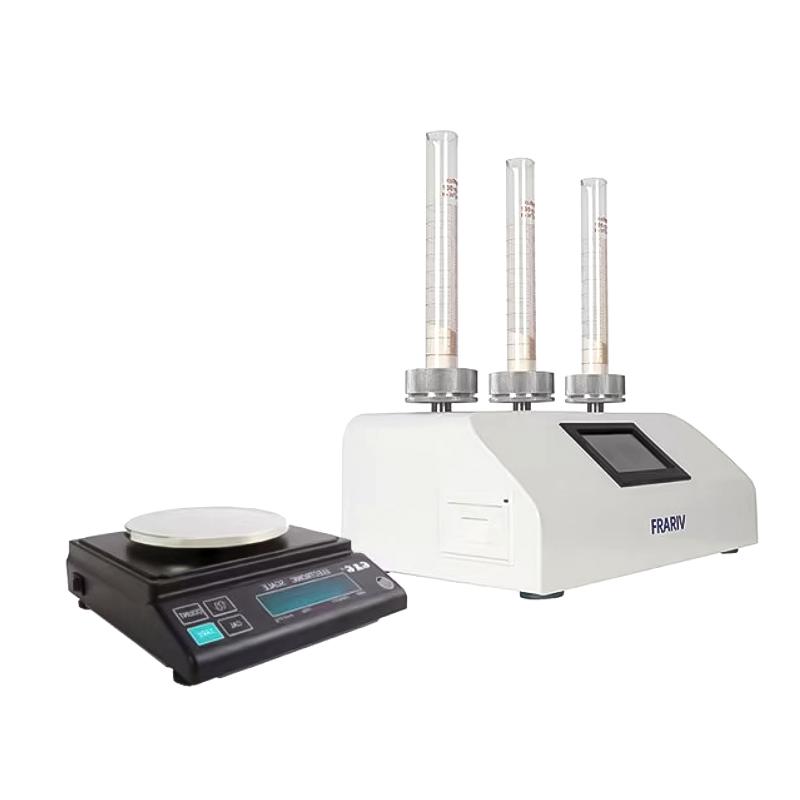

FRARIV C100N smart tap density meter is a precision testing instrument suitable for metal powder, Non-metallic powder, chemical industry, new energy, New material and scientific research and teaching. The instrument adopts advanced technology, has High Accuracy measurement and convenient operation, and can automatically read powder sample mass and generate electronic reports.
Features
1.4.3 inch touch screen, providing convenient, simple and natural human-machine interaction
2. Long Life, High Reliability Motor Components with Start-Stop Response
3. Can automatically read the powder sample mass from the electronic scale, improve the convenience of operation
4. Adopt 32-bit embedded RISC microprocessor, featuring low cost, high performance, and low power consumption
5. Use Customized Embedded Operating System with Strong System Stability and Software Expansion Ability
6. Adopt a lightweight, low-resource, high-performance, highly reliable, configurable, and beautiful GUI interface
7. Built-in embedded micro-receipt printer
8. Calculation results are accurate to 3 decimal places
9. Have good network connection ability, support software remote upgrade and customization needs
10. Support electronic report generation and download, support excel and PDF formats
11. The instrument has a solid structure, beautiful appearance and easy operation
Principle
The instrument vibrates the powder sample with a vibration frequency of 250 rpm and a vibration amplitude of 3 mm by swirl/spin. The system automatically reads the mass of the powder sample from the electronic scale, and obtains the vibration density value through precise calculation. The result is accurate to 3 decimal places.
Applications
Metal Powder, Non-metallic Powder, Chemical Industry, New Energy, New material, Research and Teaching
Standards
Chinese Pharmacopoeia 2020 Edition
Steps
Prepare powder sample and 250 mL measuringflask
2. Set test parameters through the touch screen
3. The instrument automatically reads the powder mass from the electronic scale
4. Start the vibration program, and the instrument performs swirling/spinning at a frequency of 250 rpm
5. The system automatically calculates the vibration density value
6. Print test results or generate electronic reports through the built-in printer
Notice
• Please use AC220V 50Hz power supply
• Ensure that the measuringflask volume is 250mL
• Repeatability errors should be controlled within the range of ≤ 1%
• Built-in printer paper width is 58mm, paper compartment capacity ≤ 30mm
• The roll length is 9.42m and the printing speed is 60mm/s.
• Please read the instruction manual carefully before operation
