Overview

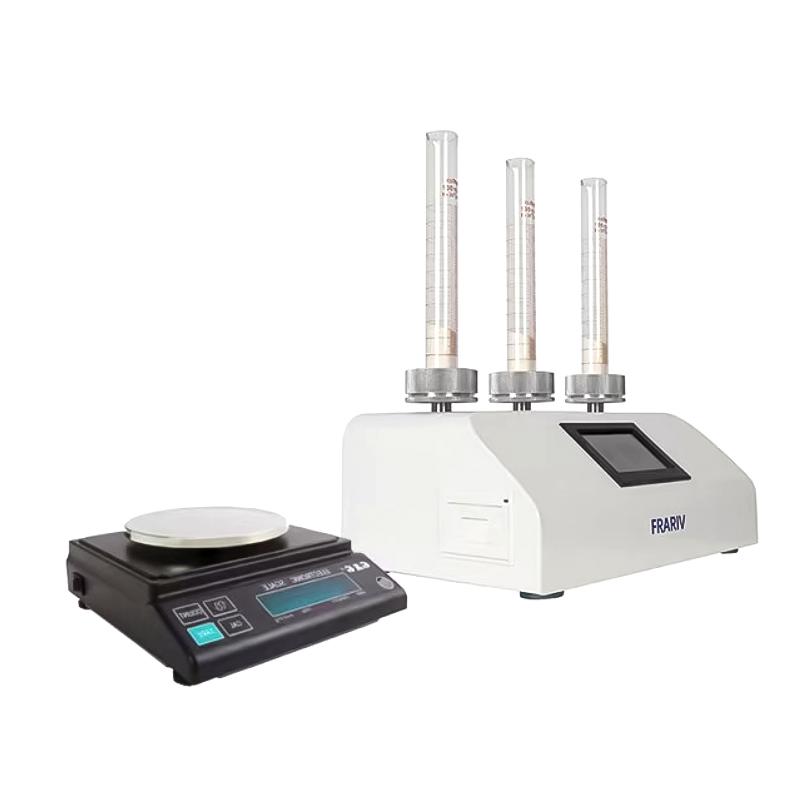

FRARIV C300N smart tap density meter is a precision instrument specially designed for powder density testing, suitable for metal powder, Non-metallic powder, chemical industry, new energy, New material and scientific research and teaching fields. The instrument adopts advanced technology, with High Accuracy measurement and convenient operation characteristics, the calculation result is accurate to 3 decimal places, and the repeatability error is ≤ 1%.
Features
1.4.3 inch touch screen, providing convenient, simple and natural human-machine interaction
2. Long Life, High Reliability Motor Components with Start-Stop Response
3. Automatically read the powder sample mass from the electronic scale to improve the convenience of operation
4. Adopt 32-bit embedded RISC microprocessor, featuring low cost, high performance, and low power consumption
5. Customized embedded operating system to enhance System Stability and Software Expansion
6. Lightweight, low-resource, high-performance, highly reliable, configurable, and beautiful GUI interface
7. Built-in embedded micro-receipt printer
8. Good network connection ability, support software remote upgrade and customization needs
9. Support electronic report generation and download, compatible with excel and PDF formats
10. The instrument has a solid structure, beautiful appearance and easy operation
Principle
The instrument vibrates the powder sample with a vibration frequency of 250 rpm and a vibration amplitude of 3 mm by swirl/spin. The system automatically reads the powder mass from the electronic scale, and uses the embedded microprocessor to accurately calculate the density value, and finally outputs the result through the built-in printer or electronic report.
Applications
Metal Powder, Non-metallic Powder, Chemical Industry, New Energy, New material, Research and Teaching
Standards
Chinese Pharmacopoeia 2020 Edition
Steps
1. Prepare the powder sample and place it in the instrument
2. Set test parameters through the touch screen
3. The instrument automatically reads the powder mass from the electronic scale
4. Start the vibration program (250 rpm, 3mm amplitude)
5. The system automatically calculates the density result
6. Print the report or download the electronic report through the built-in printer
Notice
• Make sure the power supply is AC220V 50Hz before use
• The measuringflask volume is 250mL, do not use in excess
• Regularly check the printer paper to ensure that the paper compartment is ≤ 30mm
• Keep the instrument clean to avoid dust accumulation
• Pay attention to data security when network connection
• Follow relevant safety regulations when operating
