Overview

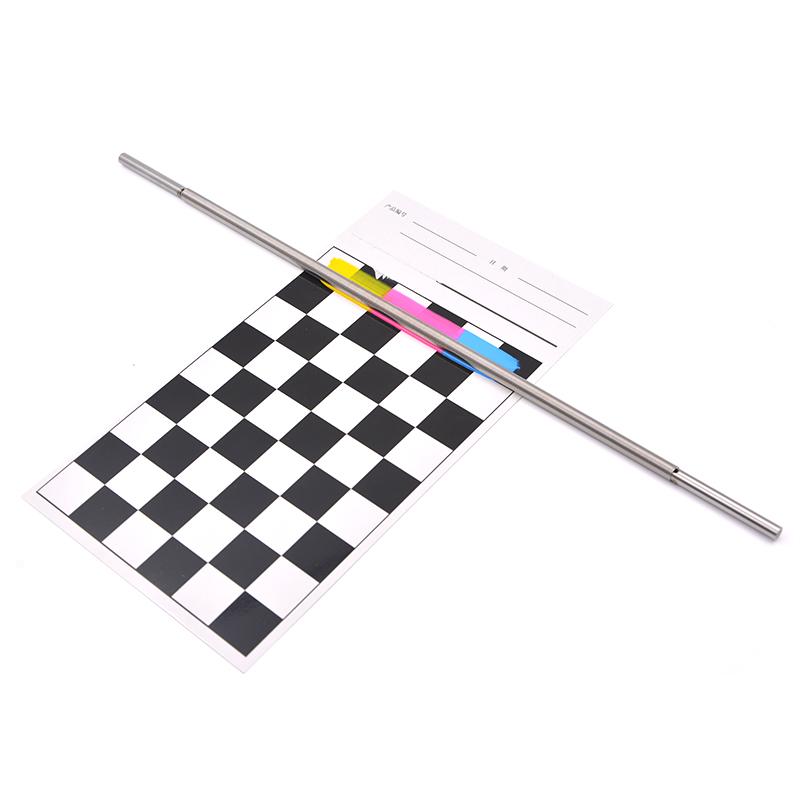

RDS #30 Mayer Rods is an Applicator rod with a film thickness of 68.6 microns. It offers three diameters of 6.35mm, 9.5mm and 12.7mm, of which 9.5mm bar is widely used. The product has a rod length of 400mm and an effective application width of 300mm. It is made of stainless steel and meets the experimental requirements of many users.
Features
1. Three diameter specifications are available: 6.35mm, 9.5mm, 12.7mm
2.9.5Mm bar widely used
3. Rod length 400mm, effective application width 300mm
4. Made of stainless steel
5. The production process is wide-wound
6.The wet film thickness is accurate to 68.6μm
Principle
The wire rod coating applicator uses a wire-wound production process to form a precise film thickness by winding a stainless steel wire on the rod body. When in use, the bar is rolled on the surface of the substrate to uniformly Spreader the Coating to a wet film thickness of 68.6 microns.
Applications
Coatings, inks, Building materials, Resins, Pigments, architectural coatings, Plastic films, Quality inspection organizations, Adhesives
Specifications
Production process: wire-wound, wet film thickness: 68.6μm, diameter: 6.35mm, total length: 400mm, application width: 300mm, hand width: 50 + 50mm, material: stainless steel, wire diameter: 0.76mm
