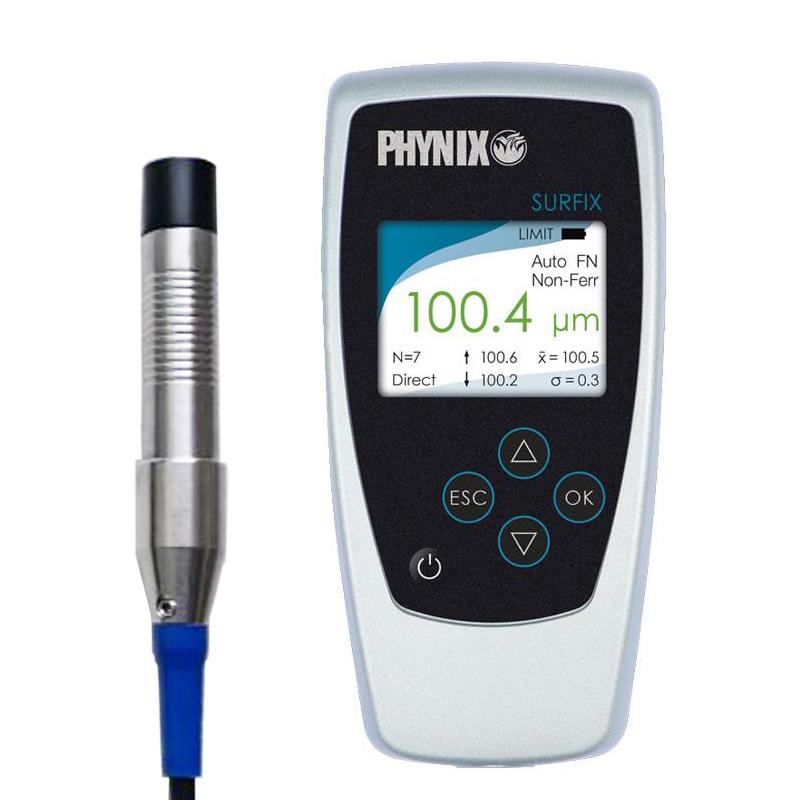

PHYNIX Surfix SX-F0.5A Coating thickness Gauge Iron-based Micro Probe magnetic measurement

Name: PHYNIX Surfix SX-F0.5A Coating thickness Gauge Iron-based Micro Probe magnetic measurement
Brand: PHYNIX
SKU: NB045137

Please contact customer service

Measurement range 0-500μm, Accuracy 0.7μm + 1%, support for calibrated measurement and online statistics, suitable for a variety of curved and complex surfaces.

Model

Surfix SX-F0.5A

Get Quote

Category : Coating Thickness Gauge

Brand : PHYNIX

SKU : NB045137

Service :The delivery and service By NBCLab.Com

Overview

The Sofis Surfix SX-F0.5A Iron-based Miniature Probe Coated Platings Thickness Gauge is a Coating thickness gauge produced in Phoenix, Germany. It uses an external separation Probe and magnetic Measurement principle. It is suitable for testing all steel substrates and has an automatic identification function. The instrument Probe is made of cemented carbide and has a high service life. The front plastic cap is designed with a V-groove, which can be stably positioned vertically on the horizontal plane, cylinder or curved surface. It is a high-quality product made in Germany without abrasion measurement.

Features

1. Innovative and humanized measurement technology: open measurement 2. Horizontal, rough and curved surfaces can be measured 3. Type F for iron/steel measurement 4. Free calibrated measurement 5. Online statistics (n, x, s, min, max) 6. Large contact surface to ensure accurate positioning 7. Audio signal during measurement 8. Switchable μm/mils 9. Manufacturer's factory inspection certificate 10.1 year warranty

Principle

The thickness gauge adopts the magnetic Induction + eddy Current Measurement principle, which is suitable for the measurement of the thickness of nonmagnetic coated platings on ferromagnetic metal substrates such as steel and iron.

Applications

Paints workshops, paints and powder coating processes, automotive evaluation and automotive repair shops, steel structures, automotive manufacturing and shipbuilding, product inspection, production processes, final inspection and quality control, laboratories

Standards

Manufacturer's factory inspection certificate

Steps

1. Open the instrument to start measurement 2. Probe stable vertical positioning on the measurement surface 3. Instrument automatic identification and measurement Coating thickness 4. View measurement results and make statistical evaluations

Notice

• Suitable for nonmagnetic platings measurement on ferromagnetic metal substrates • Measurement range: 0-500μm • Operating temperature: 0~ 60 ℃ • Probe minimum headroom: 85mm • Probe minimum sample diameter: 3mm • Powered by 2xAA dry or rechargeable batteries

Measurement principle
Magnetic Induction + eddy Current
Measurement Range
0-500μm
margin of error
0.7um+1%
Host model
SX-standard Type
Probe
FN、F、N
Calibrated mode
Factory calibrated, zero calibrated
Memory
1000 pcs-FE, 1000 pcs-NFE
data transmission
USB2.0
statistical function
n，x，s，min.，max，Kvar，cp，cpk
display screen
SX---color screen, backlight
power supply
2xAA dry batteries, rechargeable batteries can also be used.
Battery life
With 1 reading per second, it can operate continuously for up to 24 hours
Dimension
137*66*23mm
weight
223g
Operating temperature
0－60℃
Probe model
Straight Probe F1.5A
Probe end diameter
6mm
Probe minimum headroom
85mm
Probe minimum sample diameter
3mm
Probe Size
14*83mm
