Overview

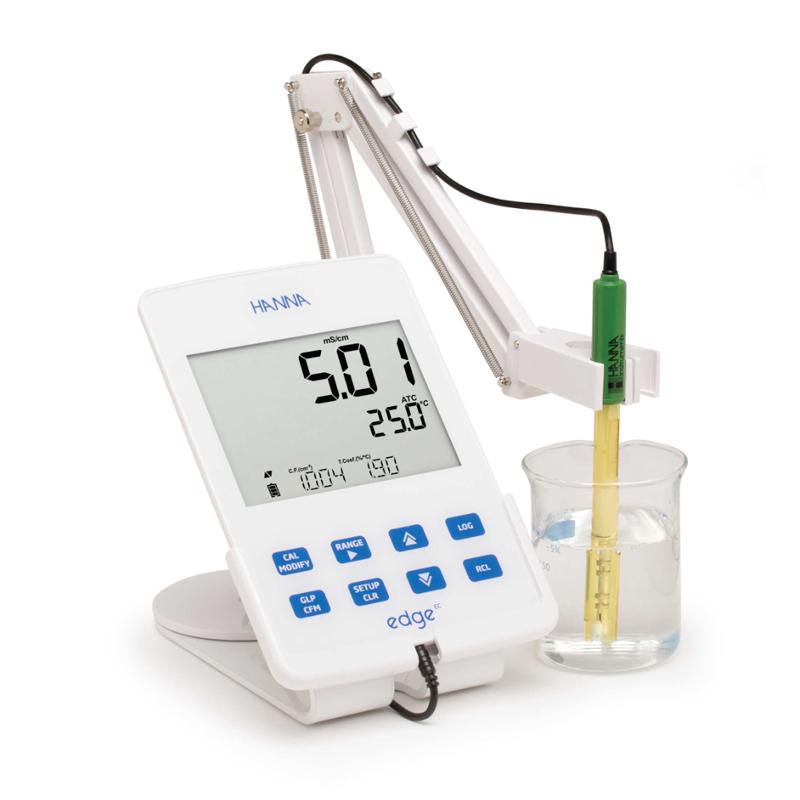

The HI 2003-02 Benchtop Conductivity Meter is a new ultra-thin microcomputer conductivity-total solids solubility-salinity-temperature meter, combining design capabilities, product integration, and the best work of the R & D team.
Features
1. Powerful management function: Automatically identify Electrode type, automatically enter measurement project mode, Electrode sensor automatically stores calibrated data.
2. Data management function: measurement data, GLP data, 1000 sets of data including time and date are automatically stored (interval: 200 sets of data storage; manual: 600 sets of data storage), USB Interface realizes measurement data output, micro USB Interface realizes data transmission and charging function.

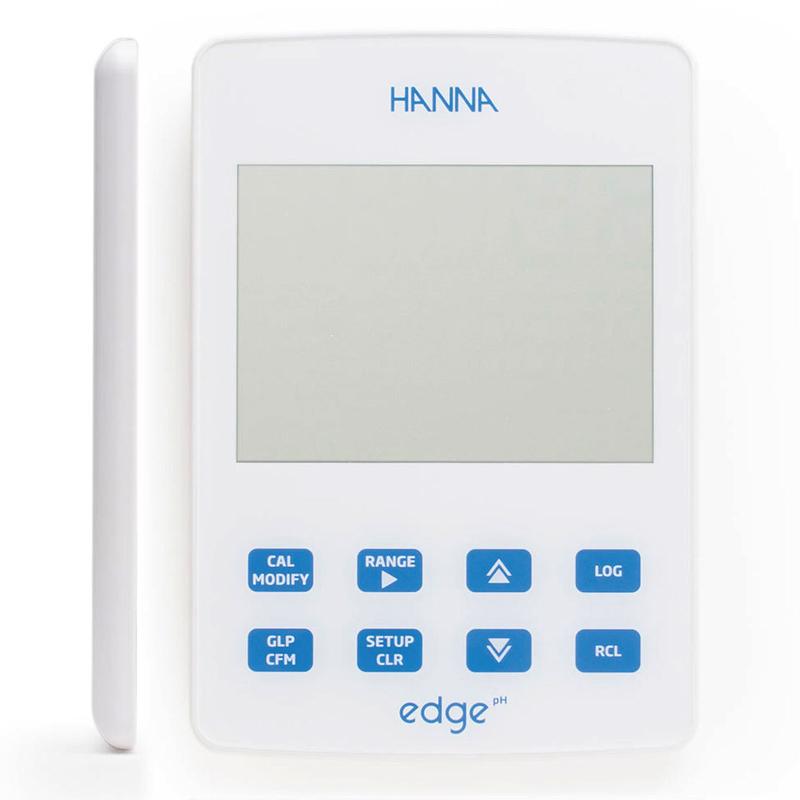

3. Large screen, with screen operation steps prompt: 5.5-inch large screen display, achieving a 150 ° viewing angle range and clear reading beyond 5 meters; a concise full-text information prompt is displayed at the bottom of the screen.

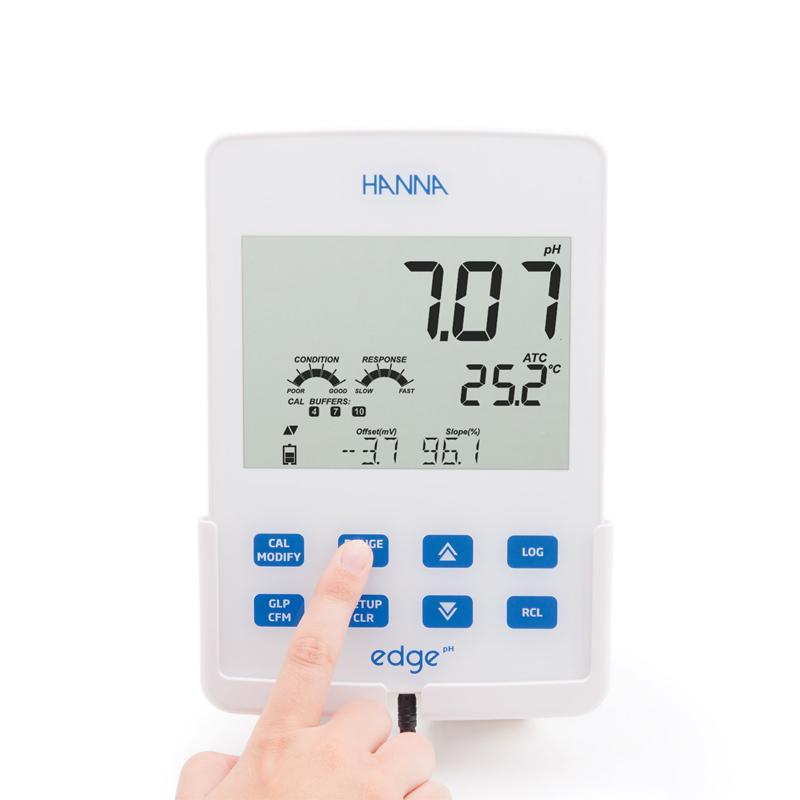

4. Ultra-thin design, touch operation: 12.7mm ultra-thin body, 250g lightweight design, fashionable and beautiful touch buttons, screen and button integrated design, laboratory Benchtop, Wall-Mounted, Handheld three-purpose integrated design, base charging design.
5.3.5Mm digital Electrode interface, more convenient and fast operation: configuration HI763100 custom built-in temperature sensor four-ring EC/TDS digital Electrode, Electrode body built-in micro memory chip, connection with the host can automatically identify Electrode type, ID and calibrate details.
Principle
The instrument is measured by HI763100 custom built-in temperature sensor EC/TDS digital Electrode. Electrode body built-in micro memory chip is connected with the host to automatically identify Electrode type and calibrate information. Automatic temperature compensation (ATC) technology is used to measure conductivity, total solid solubility, salinity and temperature parameters.
Applications
Lab Benchtop, Wall-Mounted, Handheld three-in-one design
Steps
1. Connect HI763100 custom built-in temperature sensor EC/TDS Digital Electrode
2. The instrument automatically recognizes the Electrode type and enters Measurement mode
3. Follow the screen prompts
4. Automatic or manual storage of measurement data
5. Output data through USB interface
Notice
• Electrode Automatic calibration in the drying state
• Operating Environment 0 to 50 ° C (32 to 122 F)
• When measuring absolute conductivity, select off temperature compensation (NOTC)
• Salinity% unit calibrated HI7037 salinity standard buffer (100%)
